HELP No. Adjustments and checks Contents and descriptions

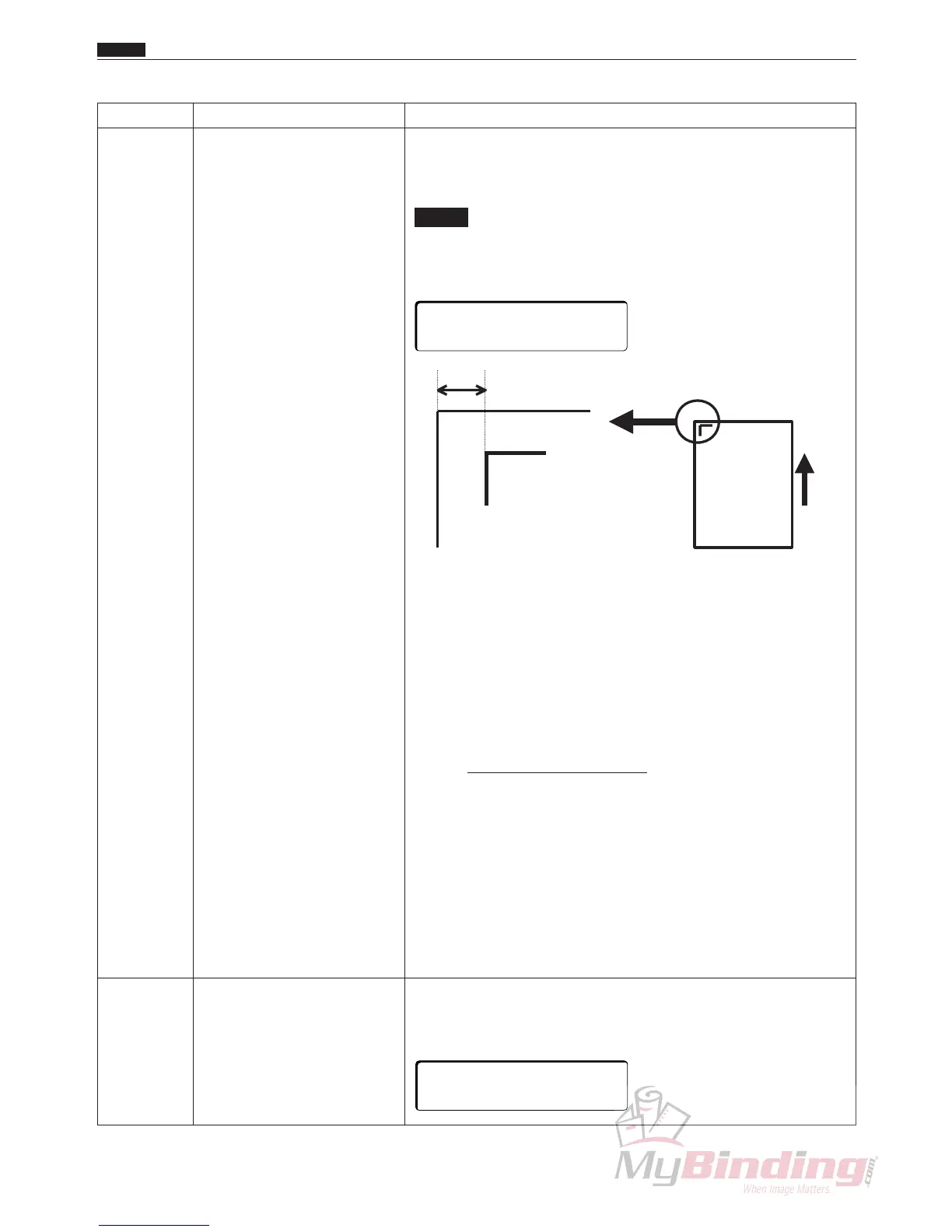

H-22 CCD performance (stepping Confirms CCD scanner functions
mode) function test CCD lights read and the counter (CNT) is displayed.
When the vertical line located 10 mm from the left edge of the
paper is read, the CNT value is 70 +/- 1.
NOTE :
• The CCD may remain lit until the power is turned
off after it has been turned on once.
When the check is finished, turn off the power.
X(mm) CNT
115±1
221±1
327±1
433±1
540±1
646±1
752±1
858±1
964±1
10 70±1
11 76±1
12 82±1
13 88±1
14 94±1
15 101±1
16 107±1
17 113±1
18 119±1
19 126±1
20 132±1
H-23 Total score counter display Displays the total number of scores.
The top counter can not be cleared.
The bottom counter can be cleared by pressing the <CLEAR>
key for 3 seconds or more.
Chap.7
c HELP Description
+KEY:CCD ON
CNT:
∗ ∗ ∗ ∗
∗∗∗∗∗∗∗∗
∗∗∗∗∗∗∗∗
To Next Page
