MAIN PWB
N4-W114*
24V 24V 24V 24V 24V 24V
WHITE BROWN ORANGE BLACK BROWN YELLOW WHITE BROWN ORANGE BLACK BROWN YELLOW WHITE BROWN ORANGE BLACK BROWN YELLOW
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18
RIGHT SLIT. LEFT CENTER. RIGHT CENTER.
CN7

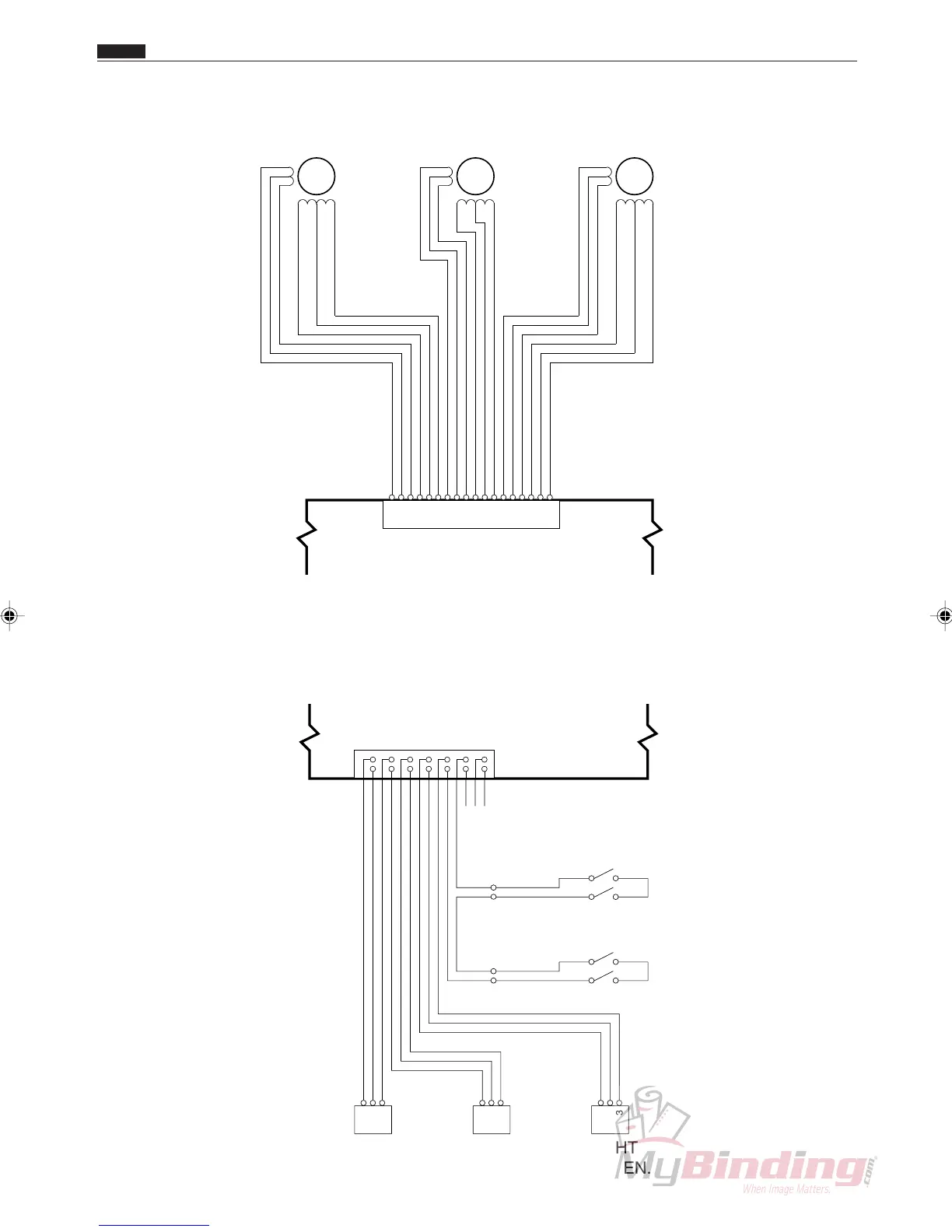

c Overall Wiring Diagram
Chap.8
7) Main P.W.B. CN7
8) Main P.W.B. CN8
MAIN PWB
N4-W115*
N4-W119*
N4-W120*
RED YELLOW BLUE RED PEACH BLUE RED GREEN BLUE YELLOW YELLOW
5V GND 5V GND 5V GND GND
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
1 2 3 4 5 6 7 8 9
10 11 12 13 14
1 2 3 1 2 3 1 2 3
CN8
SCORE
SEN.
RIGHT
SLI.SEN.
RIGHT
CEN.SEN.
COVER SW
COVER SW
