NETGEAR FVS318G User Manual

Virtual Private Networking Using IPSec and L2TP Connections
242
NETGEAR ProSAFE VPN Firewall FVS318G v2

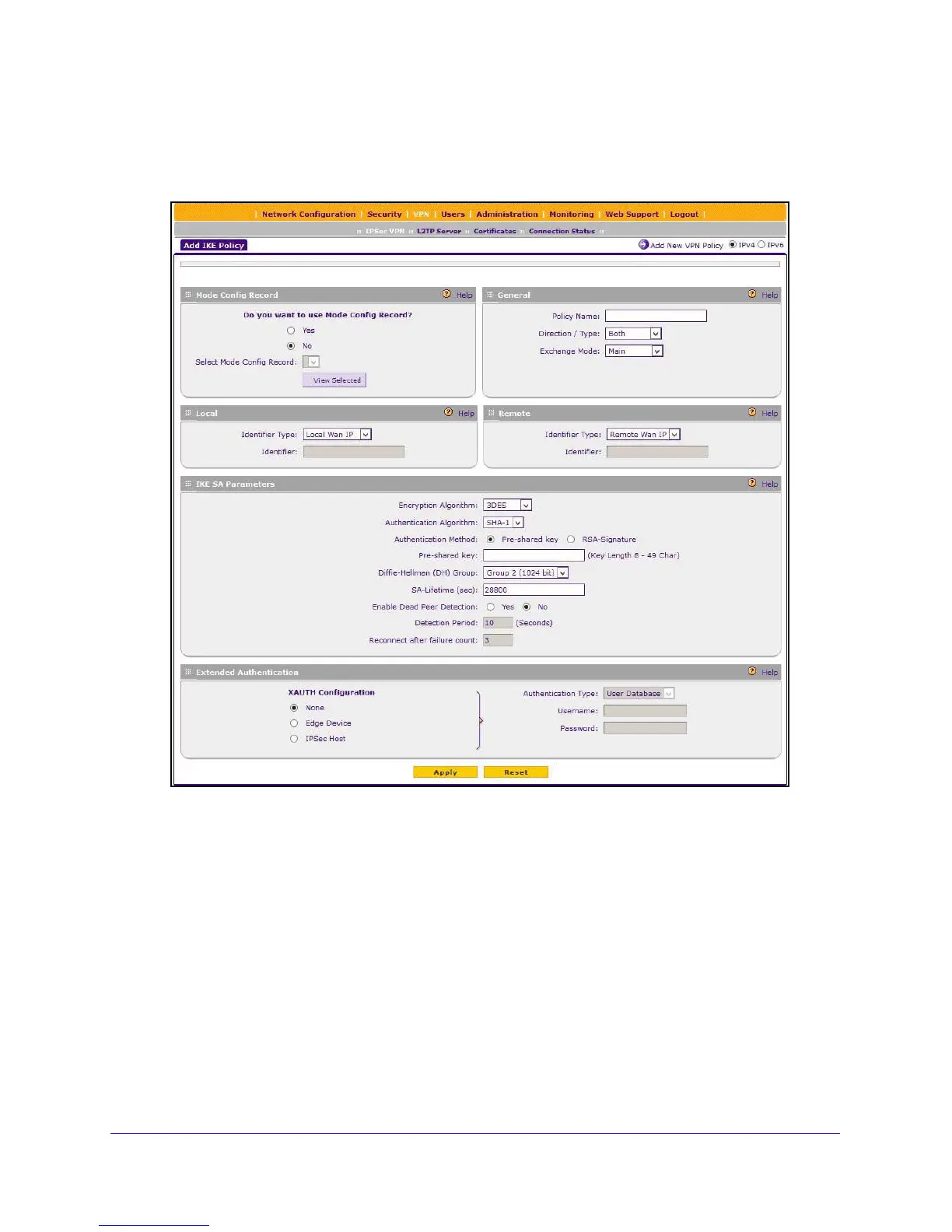

• IPv4. In the upper right of the screen, the IPv4 radio button is already selected by
default. Go to Step 5.
• IPv6. Select the IPv6 radio button.

NETGEAR FVS318G Specifications

General

Power requirements	12V DC, 1.5A
Firewall throughput	250 Mbit/s
Maximum data transfer rate	1000 Mbit/s
HTTP performance	6000 transactions/sec
Wi-Fi	No
DHCP server	Yes
Number of VLANs	256
VPN tunnels quantity	12
WAN connection	Ethernet (RJ-45)
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	9
Ethernet DMZ ports quantity	1
Routing protocols	RIP-1, RIP-2
Supported network protocols	TCP/IP, UDP, ICMP, PPPoE
VPN support	IPsec (ESP), IKE, PKI, HTTPS
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES, MD5, SHA-1
Internal memory	128 MB
Flash memory	32 MB
Storage media type	Flash
Processor frequency	300 MHz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Cables included	LAN (RJ-45)

Weight and Dimensions

Weight	590 g
Dimensions (WxDxH)	190 x 125 x 35 mm
