NETGEAR FVS318G User Manual

Monitor System Access and Performance
350
NETGEAR ProSAFE VPN Firewall FVS318G v2

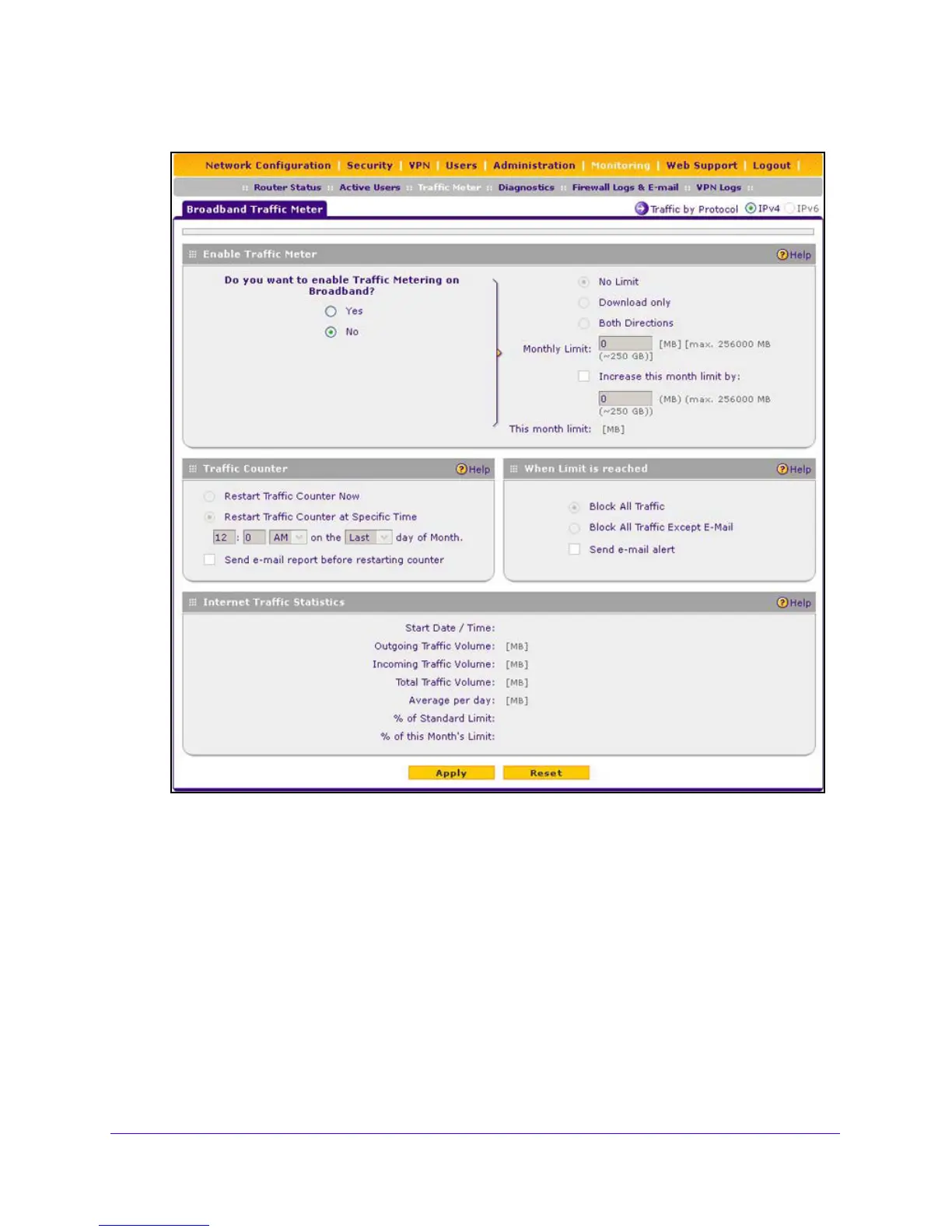

2. Select Monitoring > Traffic Meter.
The Internet Traffic Statistics section in the lower part of the screen di
splays statistics on
Internet traffic through the WAN port. If you did not enable the traffic meter, these
statistics are not available.
3. Enter
the settings as described in the following table:

NETGEAR FVS318G Specifications

General

Power requirements	12V DC, 1.5A
Firewall throughput	250 Mbit/s
Maximum data transfer rate	1000 Mbit/s
HTTP performance	6000 transactions/sec
Wi-Fi	No
DHCP server	Yes
Number of VLANs	256
VPN tunnels quantity	12
WAN connection	Ethernet (RJ-45)
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	9
Ethernet DMZ ports quantity	1
Routing protocols	RIP-1, RIP-2
Supported network protocols	TCP/IP, UDP, ICMP, PPPoE
VPN support	IPsec (ESP), IKE, PKI, HTTPS
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES, MD5, SHA-1
Internal memory	128 MB
Flash memory	32 MB
Storage media type	Flash
Processor frequency	300 MHz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Cables included	LAN (RJ-45)

Weight and Dimensions

Weight	590 g
Dimensions (WxDxH)	190 x 125 x 35 mm
