NETGEAR FVS318G User Manual

Monitor System Access and Performance
362
NETGEAR ProSAFE VPN Firewall FVS318G v2
• Tunnel Status

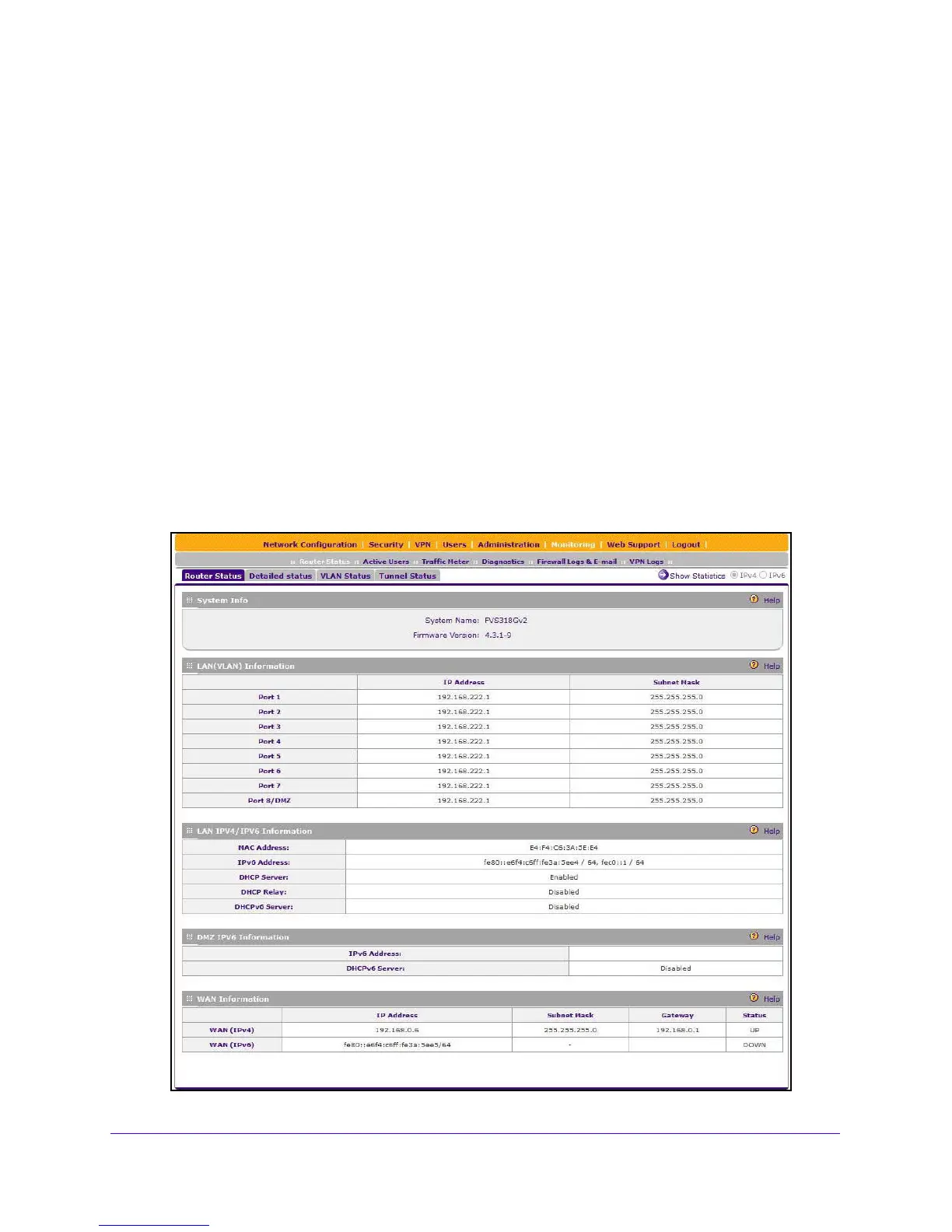

Router Status
 To view the Router Status:
1. Log in to the unit:
a. In the address field of any of the qualified web browsers, enter
https://192.168.1.1.
The NETGEAR Configuration Manager Login screen displays.
b. In the User
name field, enter admin and in the Password / Passcode field, enter
password.
Use lowercase letters. If you changed the password, enter your persona
lized
password. Leave the domain as it is (geardomain).
c. Click
the L
ogin button.
The Router Status screen displays. After five minutes of inactivity,
which is the default
login time-out, you are automatically logged out.
2. Select Monitoring
> Router Status.

NETGEAR FVS318G Specifications

General

Power requirements	12V DC, 1.5A
Firewall throughput	250 Mbit/s
Maximum data transfer rate	1000 Mbit/s
HTTP performance	6000 transactions/sec
Wi-Fi	No
DHCP server	Yes
Number of VLANs	256
VPN tunnels quantity	12
WAN connection	Ethernet (RJ-45)
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	9
Ethernet DMZ ports quantity	1
Routing protocols	RIP-1, RIP-2
Supported network protocols	TCP/IP, UDP, ICMP, PPPoE
VPN support	IPsec (ESP), IKE, PKI, HTTPS
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES, MD5, SHA-1
Internal memory	128 MB
Flash memory	32 MB
Storage media type	Flash
Processor frequency	300 MHz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Cables included	LAN (RJ-45)

Weight and Dimensions

Weight	590 g
Dimensions (WxDxH)	190 x 125 x 35 mm
