CIBANO 500 PTM User Manual
12 OMICRON
► The voltage/current indicator on the side panel of CIBANO 500 (see 3.2.2 "Side panel" on page 18)
indicates dangerous voltage on one of the CIBANO 500 sockets, either from an internal source or
from an external one, for example, from the station battery.
► After booting CIBANO 500 either the red or the green status light on the front panel should be on. If
after booting both status lights are on or off, CIBANO 500 might be defective. In this case, do not use
CIBANO 500 and contact your regional OMICRON service center.
► Do not operate CIBANO 500 and its accessories in the presence of explosives, dangerous gases or
vapors.
► Use CIBANO 500 and its accessories only in a technically sound condition.
► Make sure the use of CIBANO 500 is in accordance with the regulations on site and the designated
use described in this document.
► Comply with the workflows described in this document. Avoid interruptions or distractions that could
affect safety.
► If CIBANO 500 or its accessories do not seem to function properly, stop using them and contact your
regional OMICRON service center.
1.5.3 Obey the work area

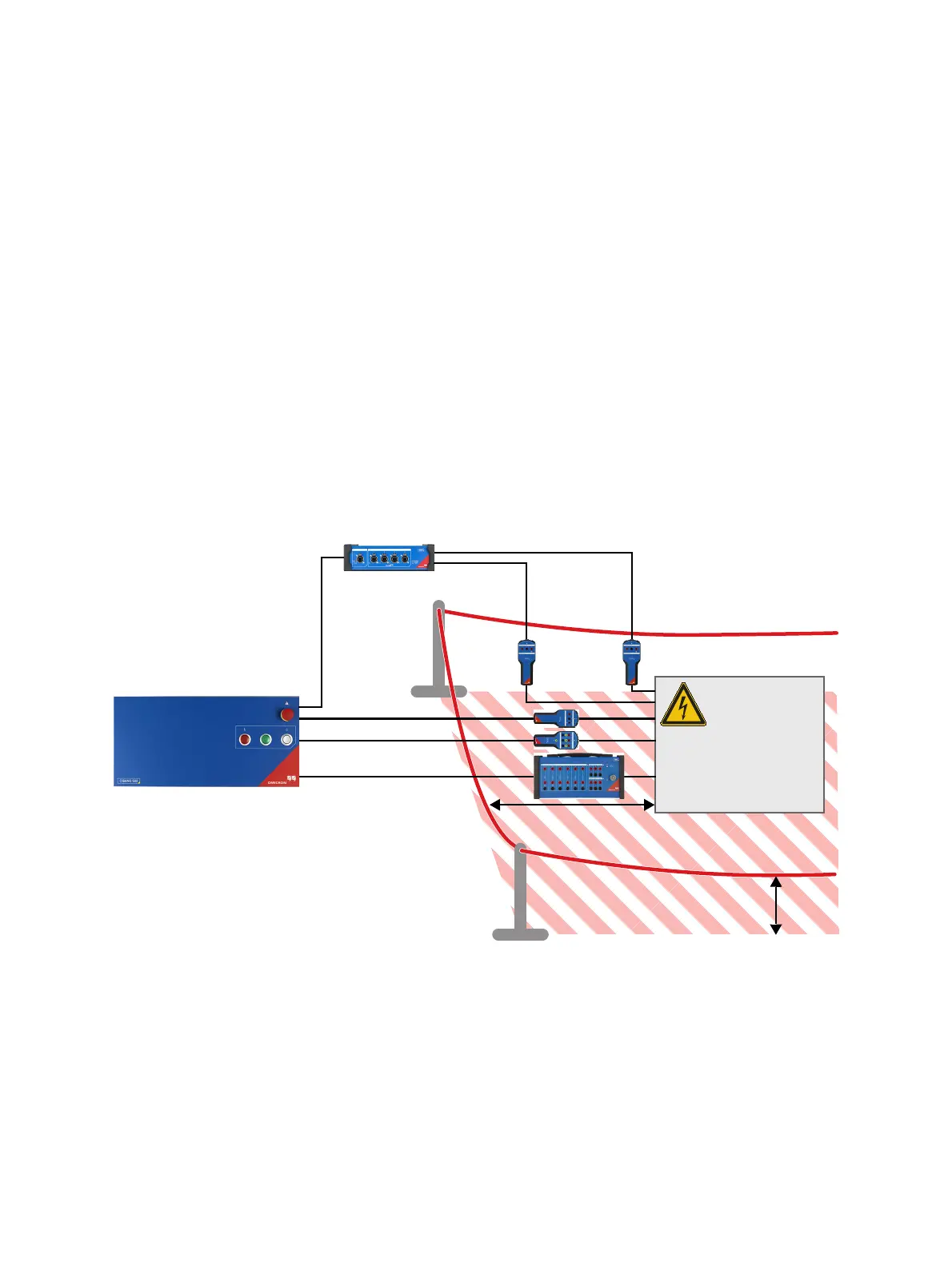

Figure 1-1: Example of the separation of the work and high-voltage test areas
► Always stay in the work area during test.
► Prior operation make sure that the test equipment is not mounted within the motion path of the circuit
breaker. If needed, perform an operation prior mounting of test equipment (for example, motion
sensors).
► For defining the appropriate high-voltage test area, consider any potential falling equipment (for
example, the CB MC2 modules or clamps) as well as wrong connected motion equipment.
► Position the test equipment on dry and solid surface.
0…300 V DC,
0…240 V AC
outputs
Work area
EHB1
CB MC2
IOB1
Test object
High-voltage
test area
Distance:
min. 1.5 m/5 ft
Height:
min. 1 m/3.3 ft
CB TN3
CIBANO 500
CB MC2CB MC2
