11 Control tests
In the Measurements area of Primary Test Manager, you can control the test execution and check the
circuit breaker state.

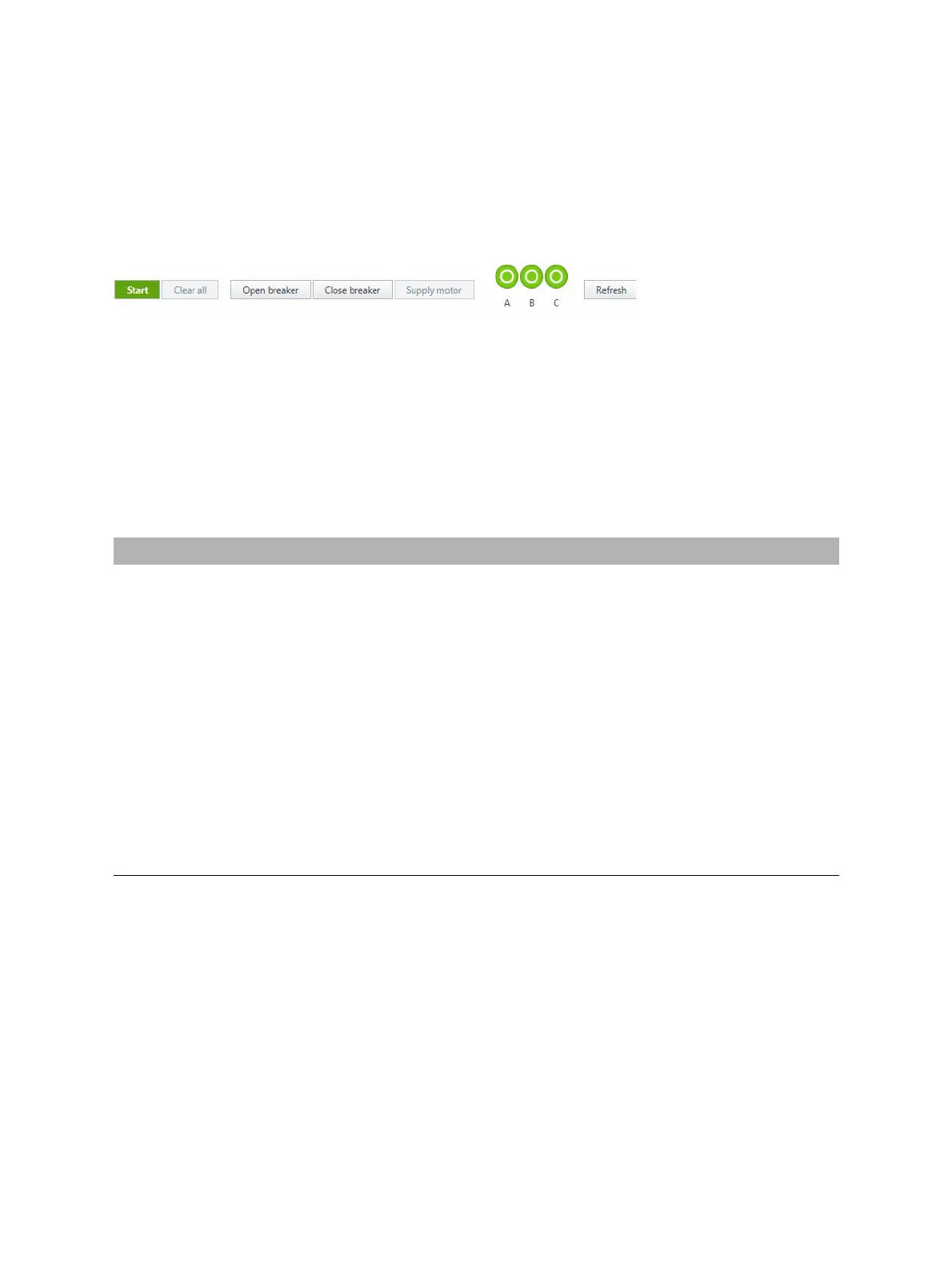

Figure 11-1: Part of the Measurements area with the test control commands and circuit breaker state
indicators
11.1 Test control commands
The following table describes the commands for controlling tests.
Note: Not all test control commands are available for all tests.
11.2 Checking the circuit breaker state
With Primary Test Manager, you can check the circuit breaker state for the following tests:
• 17.1.5 "Timing test with CIBANO 500 with the EtherCAT
®
module" on page 129
• 17.1.6 "Timing test with CIBANO 500 with the Auxiliary module" on page 138
• 17.5.1 "Timing test" on page 252
Table 11-1: Test control commands
Command Action
Start/Start all Starts the selected measurement/all measurements of the currently open
test.
Stop/Stop all Stops the running measurement/measurements.
Clear all Deletes all measurement results of the currently open test.
Open breaker Opens the circuit breaker’s main contacts.
Close breaker Closes the circuit breaker’s main contacts.
Supply motor Starts charging the circuit breaker’s motor.
The measurement stops automatically when the motor is fully charged.
Clear result Deletes the results of the selected measurement.
Delete measurement Deletes the selected measurement row.
Add measurement Adds a new measurement row to the currently open test.
Refresh Updates the circuit breaker state.
