CIBANO 500 PTM User Manual
290 OMICRON
19.1.3 Technical data
The following specifications apply to angular transducers supplied by OMICRON.
19.2 Linear transducers
The linear transducers are used to derive motion curves from a linearly moving part of the circuit breaker.
Alternatively, the linear transducers can translate the rotation of a shaft into a motion curve if the
diameter of the shaft is large enough. There is no mechanical connection between the circuit breaker
and the transducer.
19.2.1 Components
The following components are typically required to perform measurements by using the linear
transducer.
Transducer and adapter
The linear transducer comes with an adapter which facilitates the transducer to the articulating arm
described earlier in this chapter.

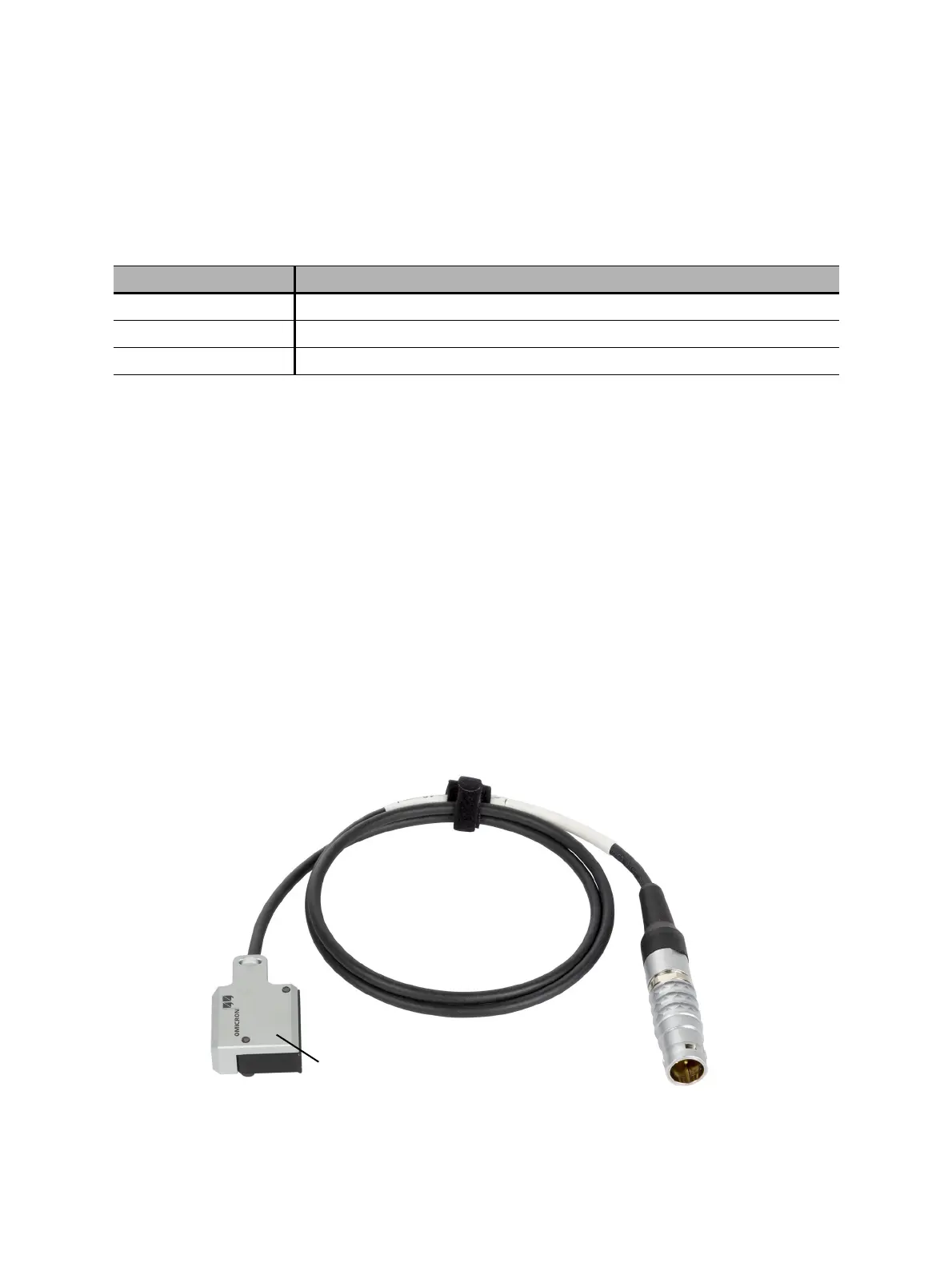

Figure 19-13: Linear transducer
Table 19-2: Angular transducer specifications
Characteristic Rating
Resolution 0.0125º
Maximum velocity 5000 rpm
Supply voltage 5 V DC
