OMICRON 289
Transducers
If it is not possible to exchange the screw on the lever pivot, mount the travel sensor as described in
Figure 19-11 and Figure 19-12.

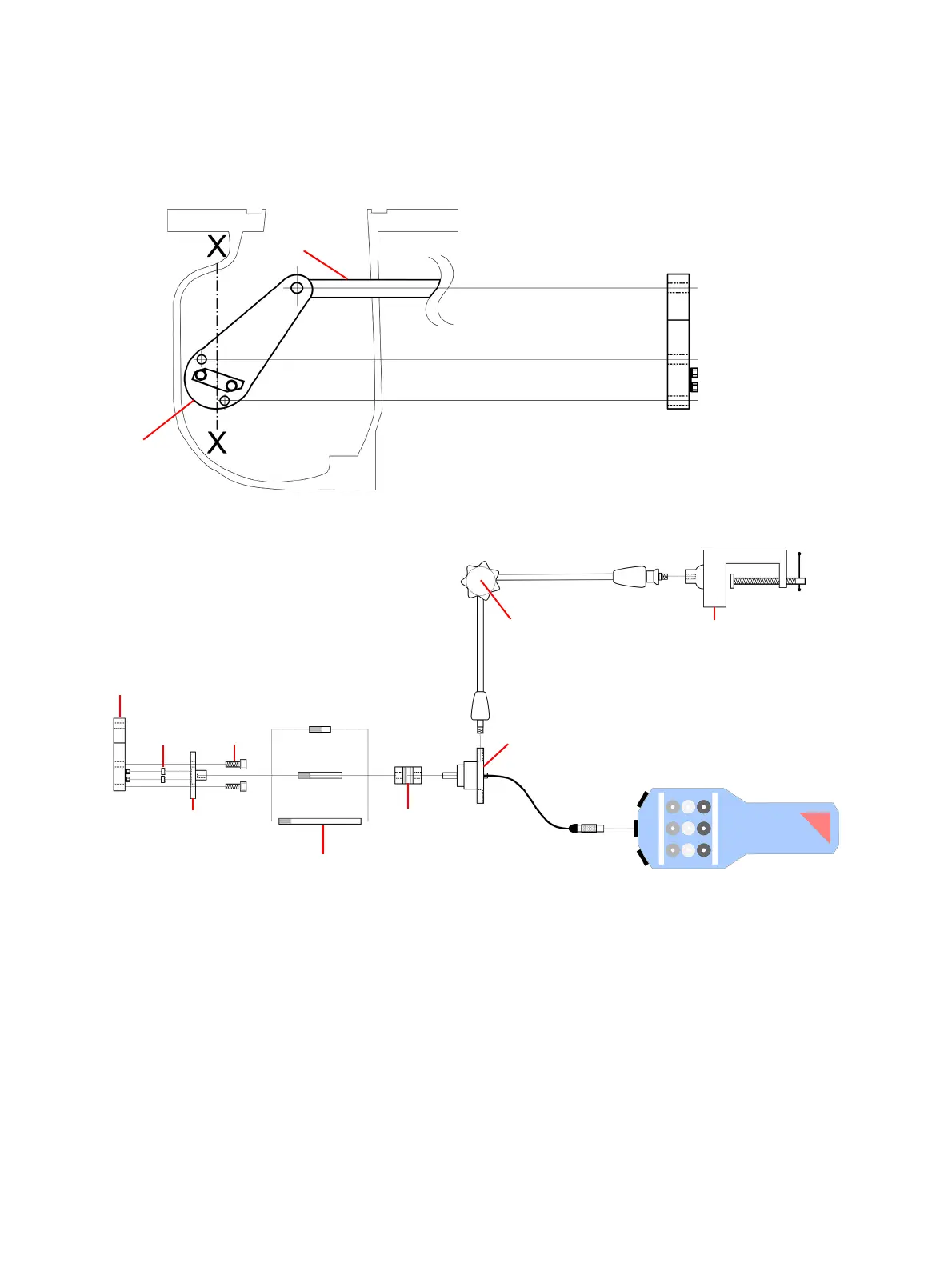

Figure 19-11: Lever (X-X view) where the screw at the pivot point of the lever cannot be exchanged
Figure 19-12: Use the adapter disk to apply OMICRON motion transducer to the drive lever of the circuit
breaker
Lever
Lever
X-X view
Connecting rod
Circuit breaker
lever
X-X view
Adapter disk
Adapter disk rods
35 mm
Rotary transducer
Articulating arm Parallel vice
CB TN3
Sleeves Screws
70 mm
130 mm
Flexible coupling
