17.1.6 Timing test with CIBANO 500 with the Auxiliary module
The Timing test measures the contact timing of the circuit breaker. Depending on the selected sequence
all relevant timing values are automatically calculated.
Connection
To connect the test object to CIBANO 500:
1. In Primary Test Manager, open the Timing test.
2. In the Hardware configuration area, set the hardware configuration.

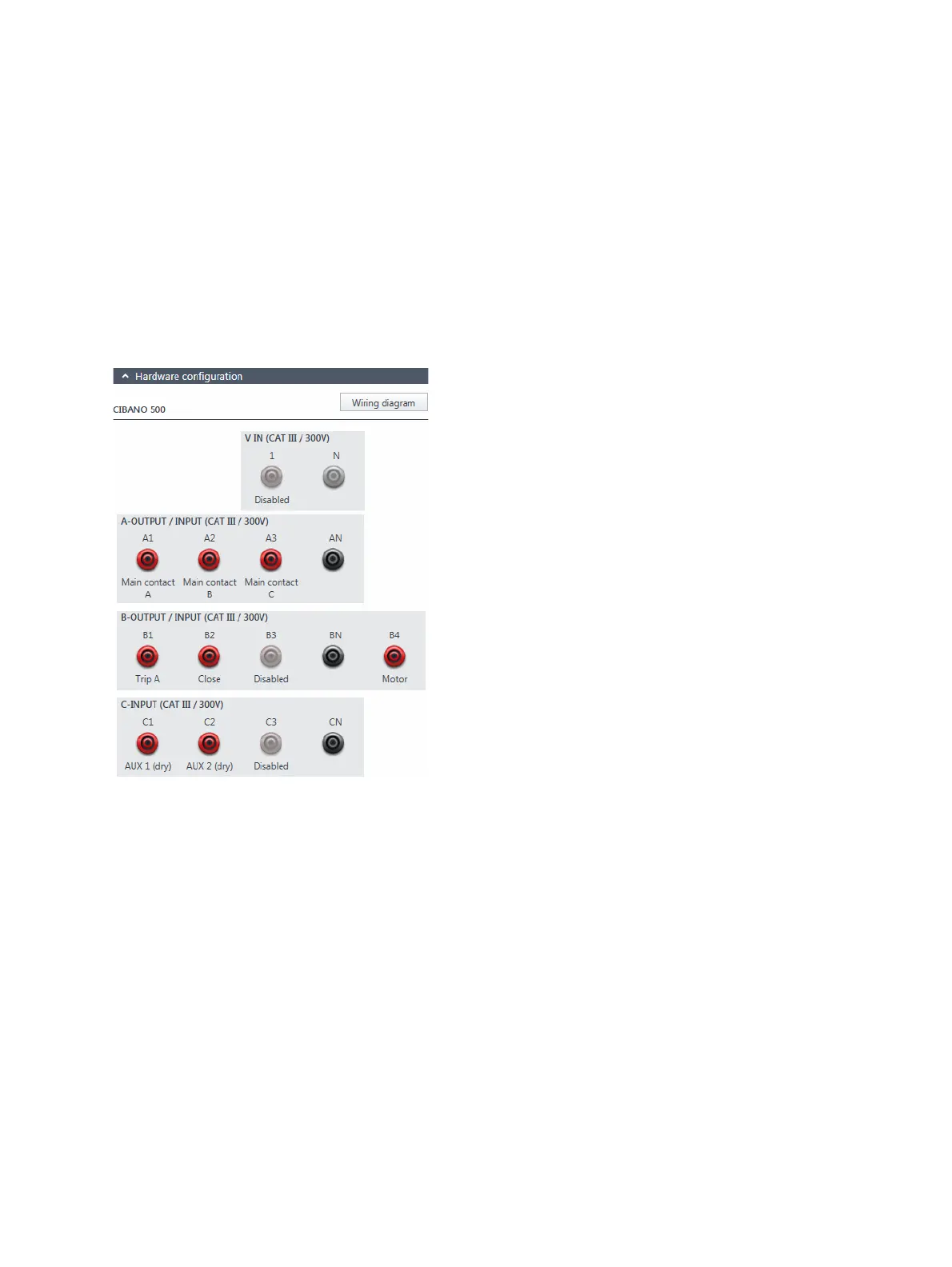

Figure 17-8: Hardware configuration of the Timing test
