22.4 EHB1 EtherCAT
®
hub
22.4.1 Designated use
The EHB1 EtherCAT
®
hub is a module for connecting OMICRON accessories like the CB MC2, CB TN3
and IOB1 modules to CIBANO 500 EtherCAT
®
interface.

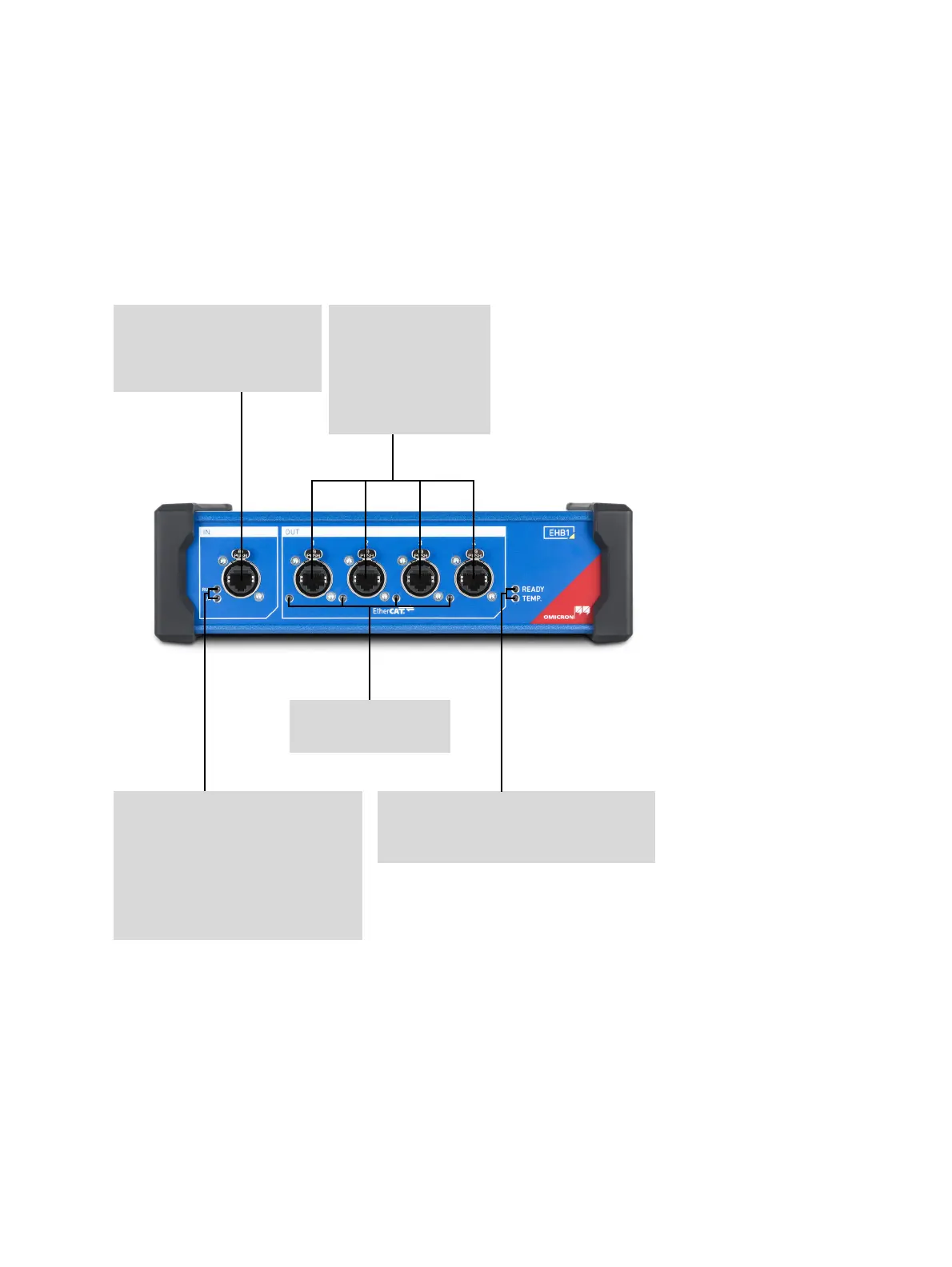

Figure 22-9: Front view of the EHB1 EtherCAT
®
hub
EtherCAT
®
connector for
connecting the EHB1 to the OUT/IN
EtherCAT
®
interface RJ-45 socket
of CIBANO 500 or previous EHB1
(daisy chain)
Two green LEDs indicating the EtherCAT
®
state.
RUN: Signals the state of the EtherCAT
®
state machine.
L/A: Signals the state of the physical link
and activity on this link.
LEDs with the same functionality are also
on the side panel of CIBANO 500 (see
3.2.2 "Side panel" on page 18.)
LEDs indicating the
EtherCAT
®
communication
state
EtherCAT
®
connectors for
connecting external
accessories like the
CB MC2, CB TN3 and
IOB1 modules or additional
EHB1 hubs
Two LEDs indicating the EHB1 state.
READY is on: The EHB1 is ready for operation.
READY is flashing and TEMP. is on: Signals the
EHB1 over temperature.
