CIBANO 500 PTM User Manual
148 OMICRON
17.1.8 Minimum Pickup test
The Minimum Pickup test determines the minimum voltage required to trip or close the circuit breaker.
By using the internal power source of CIBANO 500, the coil supply voltage is increased step by step
through an automated test sequence until the circuit breaker operates.
Note: To perform the Minimum Pickup test, you need a license. Without the license, it is not possible to
start the measurement and Primary Test Manager displays a missing license message. To get the
license, contact your regional OMICRON service center.
Connection
To connect the test object to CIBANO 500:
1. In Primary Test Manager, open the Minimum Pickup test.
2. In the Hardware configuration area, set the hardware configuration.
Often you can leave the cables as already connected in the previous test. Unused sockets can
remain connected.

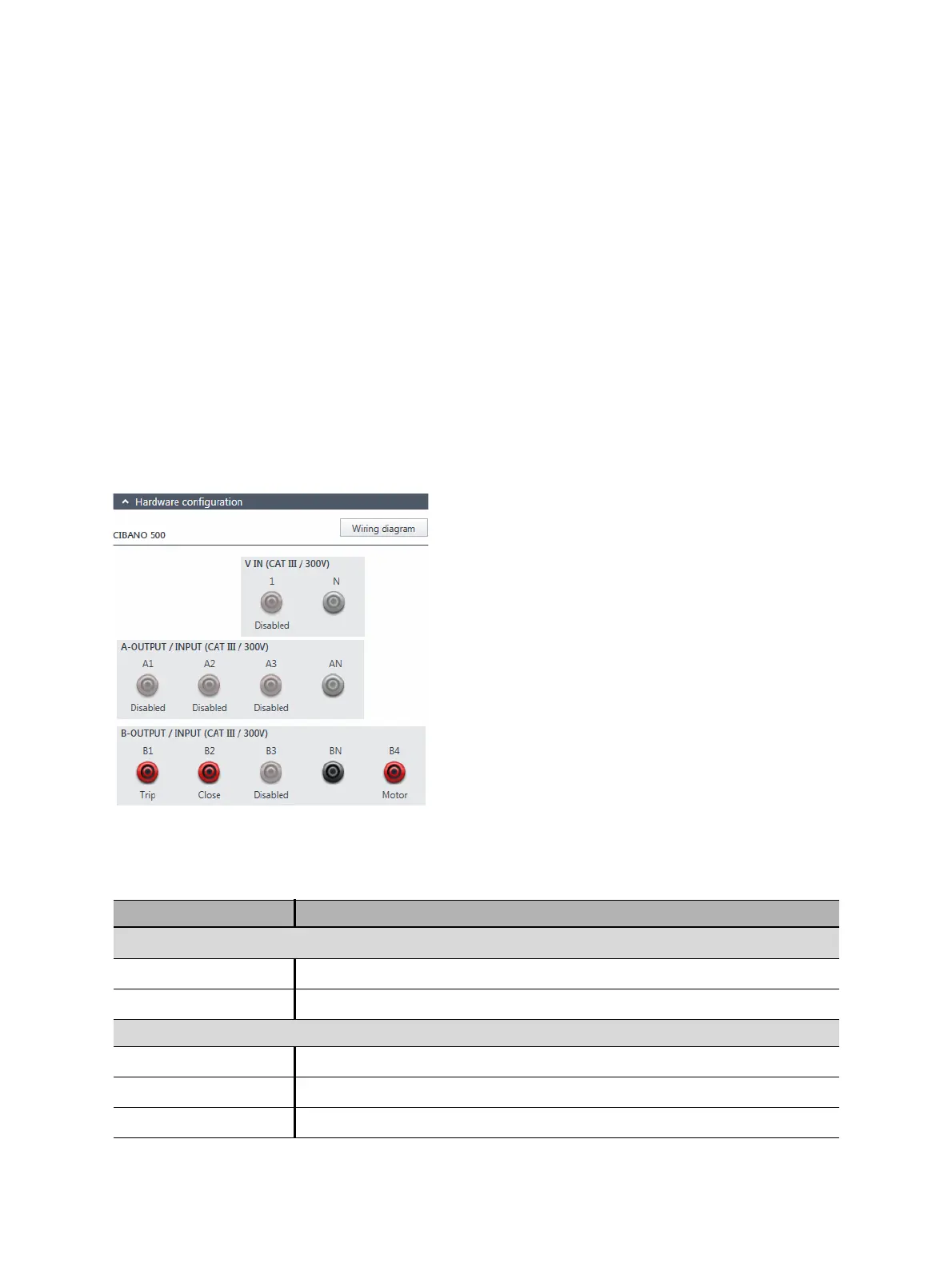

Figure 17-10: Hardware configuration of the Minimum Pickup test
Table 17-22: Hardware configuration options of CIBANO 500
CIBANO 500 Option
V IN (CAT III / 300 V)
1
1 External source or Disabled
N Neutral connection of VIN
A-OUTPUT / INPUT (CAT III / 300 V)
A1 Motor A or Disabled
A2 Motor B or Disabled
A3 Motor C or Disabled
