OMICRON 287
Transducers
19.1.2 Installation and measurement setup
The angular transducer has to be installed directly in front of the rotating shaft (axial alignment) of the
circuit breaker. Before installing the transducer, check that there is enough space for mounting the screw
clamp and the articulating arm.

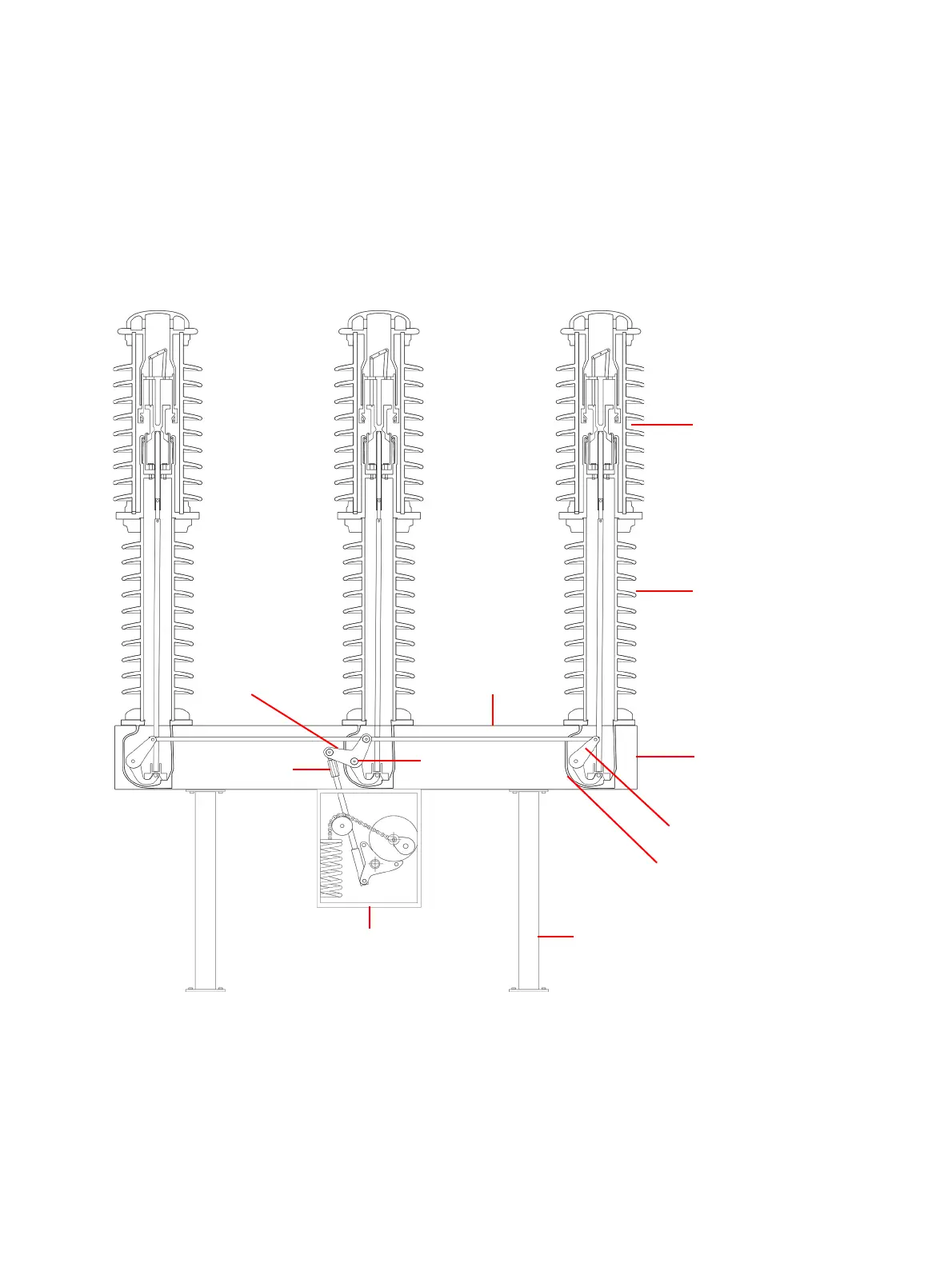

Figure 19-8: Spring-operated live-tank high-voltage circuit breaker
To install an angular transducer:
1. Attach the flexible coupling and the drill chuck, if necessary, to the rotating shaft of the circuit breaker.
2. Mount the screw clamp and the articulating arm holding the transducer in the optimal position in front
of the rotating shaft on the circuit breaker.
Pole column C Pole column B Pole column A
Interrupter unit
Support insulator
Base frame
Lever
Crank case
SupportSpring-operating mechanism
Lever pivot
Drive lever
Drive rod
Connecting rod
