OMICRON 283
Transducers
19.1 Angular transducers
The angular transducers are used to derive motion curves from a rotating part of the circuit breaker.
There is a mechanical coupling between the transducer and the circuit breaker.
19.1.1 Components
The following components are typically required to perform measurements by using the angular
transducer.
Transducer and adapter
The angular transducer comes with an adapter which facilitates attaching the transducer to the
articulating arm described later in this section. The adapter has five threaded holes (M8) for mounting
flexibility. To enhance the number of options for fixing the transducer, three additional holes with a
diameter of 8.2 mm are available.

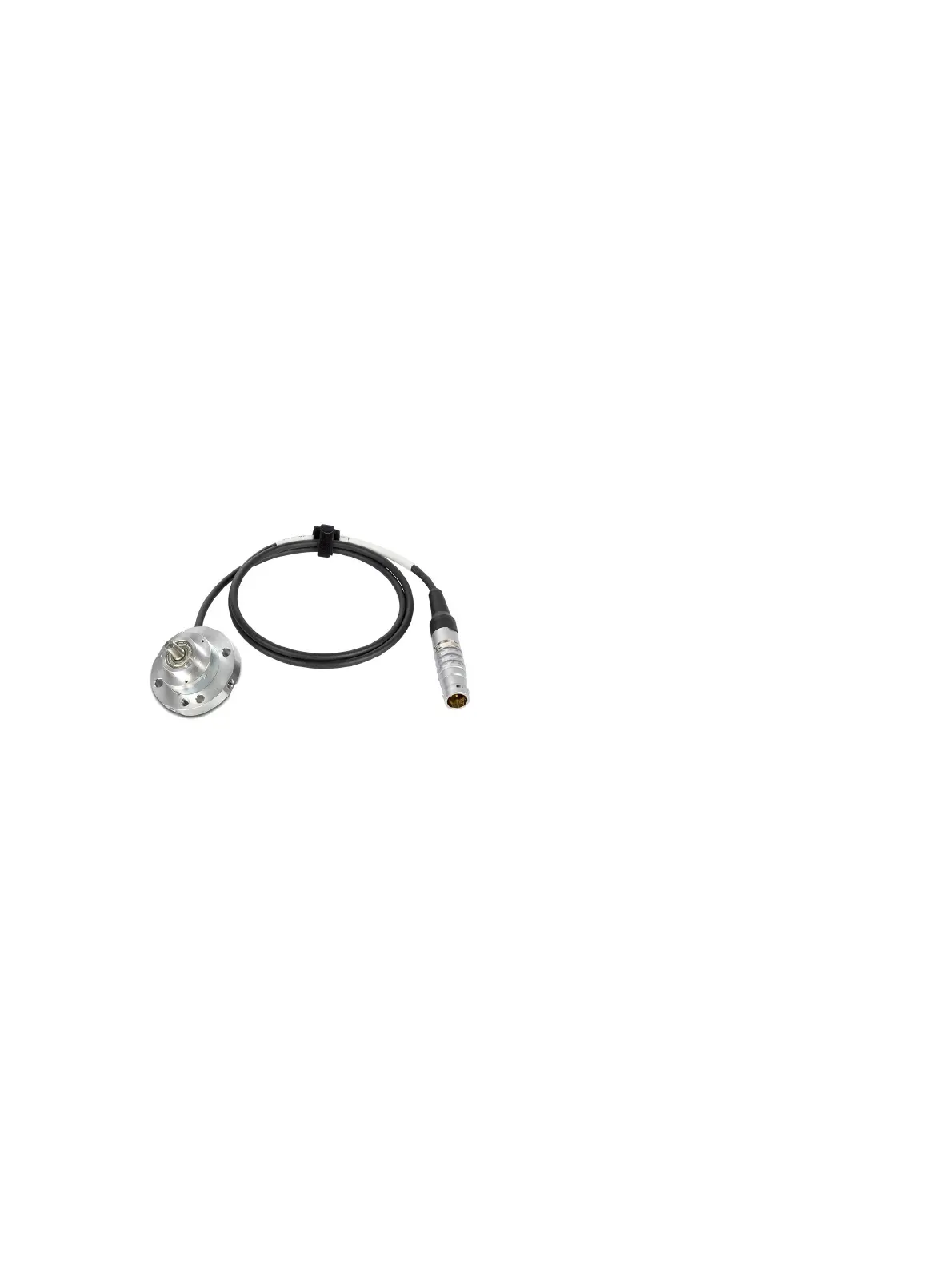

Figure 19-1: Angular transducer
