CIBANO 500 PTM User Manual
284 OMICRON
Articulating arm and screw clamp
The articulating arm consists of two levers coupled by a ball joint. On the ends of the levers, the ball joints
hold a threaded stub for interfacing with other mechanical components. All three joints can be fixed with
a single set screw. The articulating arm is connected on one side to the screw clamp and on the other
side, it holds the transducer.

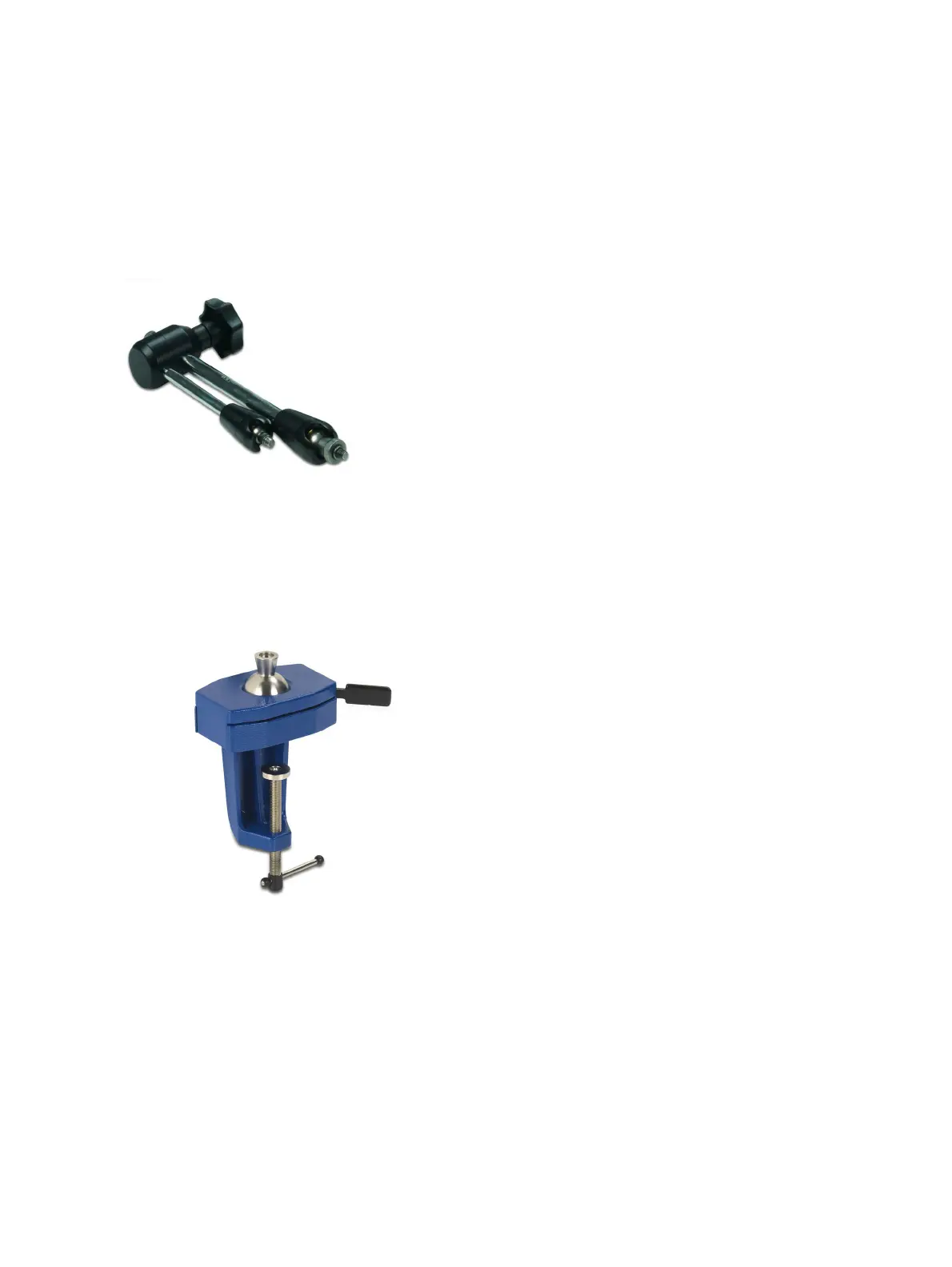

Figure 19-2: Articulating arm
The screw clamp is attached directly to the circuit breaker. It has a ball joint for connecting the articulating
arm or the mechanical extensions described later in this section. The ball joint can be fixed by bringing
the lever in the corresponding position.
Figure 19-3: Screw clamp
