OMICRON 285
Transducers
Extensions
Two types of extensions of length 100 mm and 50 mm are available to increase the range of the
articulating arm. The extensions can be inserted at either end of the articulating arm.

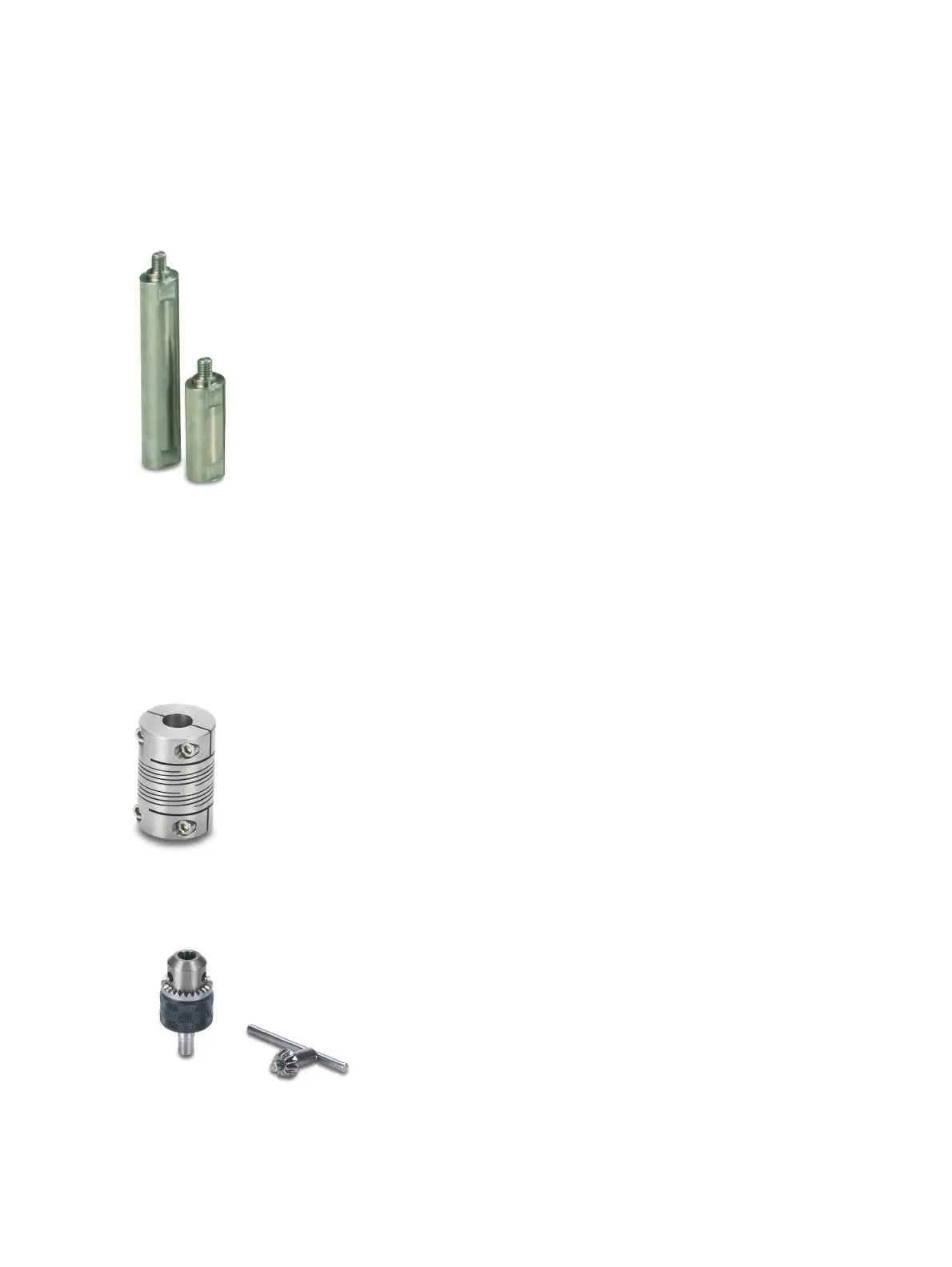

Figure 19-4: Articulating arm extensions
Couplings
Two types of couplings are available for the angular transducers: a flexible coupling and a coupling using
a drill chuck. The couplings are used to connect the shaft of the angular transducer to a rotating part of
the circuit breaker. The diameter of the hole of the flexible coupling is 10 mm, the drill chuck accepts
shafts with diameters between 0.8 mm and 10 mm.
Figure 19-5: Flexible coupling
Figure 19-6: Coupling with a drill chuck
