12.1 Cursor and graphical display options
Cursors tab
The graphical display provides two cursors for measuring the analog traces data. To read the data, move
the cursors in the cursor part of the graphical display. On the Cursors tab, you can view the
measurement results marked by the cursor 1 (C1), the measurement results marked by the cursor 2
(C2), and the difference between the two values (C2–C1). The Cursors tab displays the measured
analog traces selected on the Settings tab (for more information, see "Settings tab" later in this section).

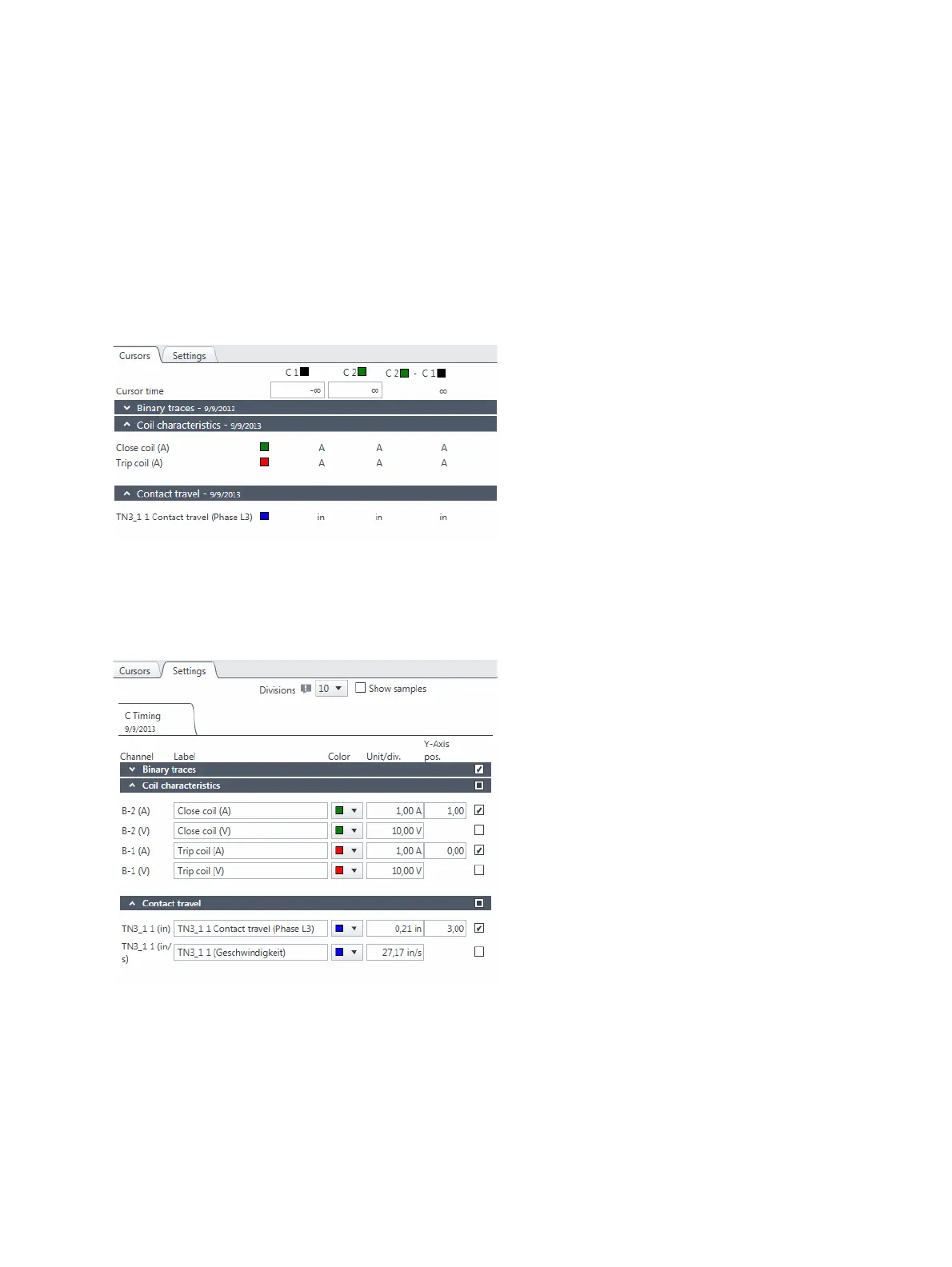

Figure 12-2: Cursors & settings workspace: Cursors tab
Settings tab
► To set your preferred graphical display options, click the Settings tab.
Figure 12-3: Cursors & settings workspace: Settings tab
