3.2.3 Status lights
CIBANO 500 provides the following status lights to indicate operating condition.
3.2.4 Emergency Stop button
Pressing the Emergency Stop button immediately shuts off all CIBANO 500 outputs and stops the
running measurement. After pressing the Emergency Stop button, Primary Test Manager does not
allow starting a measurement.
To restart the measurement after the reason for the emergency stop has been resolved, release the
Emergency Stop button by carefully turning it, click the Start button in Primary Test Manager, and then
press the Start/Stop button.
For information about the CIBANO 500 accessories, see "Accessories" in the CIBANO 500 PTM User
Manual.

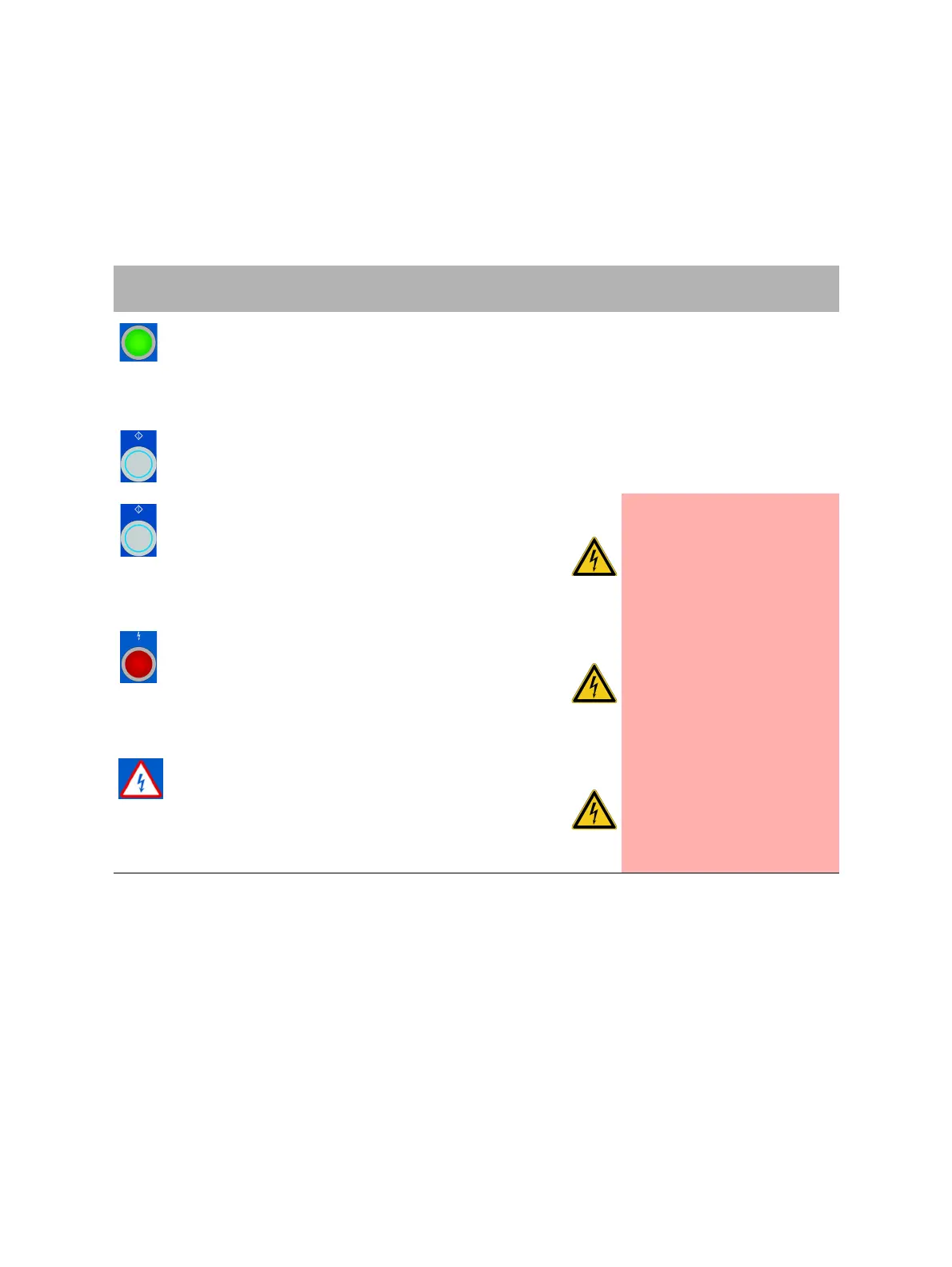

Table 3-1: Status lights
Status
light
Description CIBANO 500 state Operating condition
Green light on the front
panel is on.
CIBANO 500 is up and
running in the stand-by
mode.
No voltage/current output from
CIBANO 500. Obey the
voltage/current indicator on the side
panel for external hazardous voltage
levels.
Blue ring on the
Start/Stop button is on.
A test is prepared and
ready to start.
Blue ring on the
Start/Stop button is
flashing.
A test is starting.
Possibly there are
hazardous voltage
and/or current levels at
the CIBANO 500
outputs.
Dangerous operating
condition
Red light on the front
panel is flashing.
A test is running.
Possibly there are
hazardous voltage
and/or current levels at
the CIBANO 500
outputs.
Dangerous operating
condition
Voltage/current
indicator on the side
panel is flashing.
There are hazardous
voltage levels (> 42 V)
at the CIBANO 500
inputs/outputs
independent of the
measurement state.
Dangerous operating
condition
