CIBANO 500 PTM User Manual
152 OMICRON
17.1.9 Motor Current test
The Motor Current test records the supply voltages and currents of the circuit breaker's charging
motor(s).
Note: To perform the Motor Current test, you need a license. Without the license, it is not possible to
start the measurement and Primary Test Manager displays a missing license message. To get the
license, contact your regional OMICRON service center.
Connection
To connect the test object to CIBANO 500:
1. In Primary Test Manager, open the Motor Current test.
2. In the Hardware configuration area, set the hardware configuration.
3. After setting the hardware configuration, connect the B4 socket on the side panel of CIBANO 500 to
"+" or phase contact of the motor and the BN socket to "–" or neutral contact of the motor.
Note: Do not connect Trigger IN and current clamps to the same neutral connection socket of the
group A or group B.

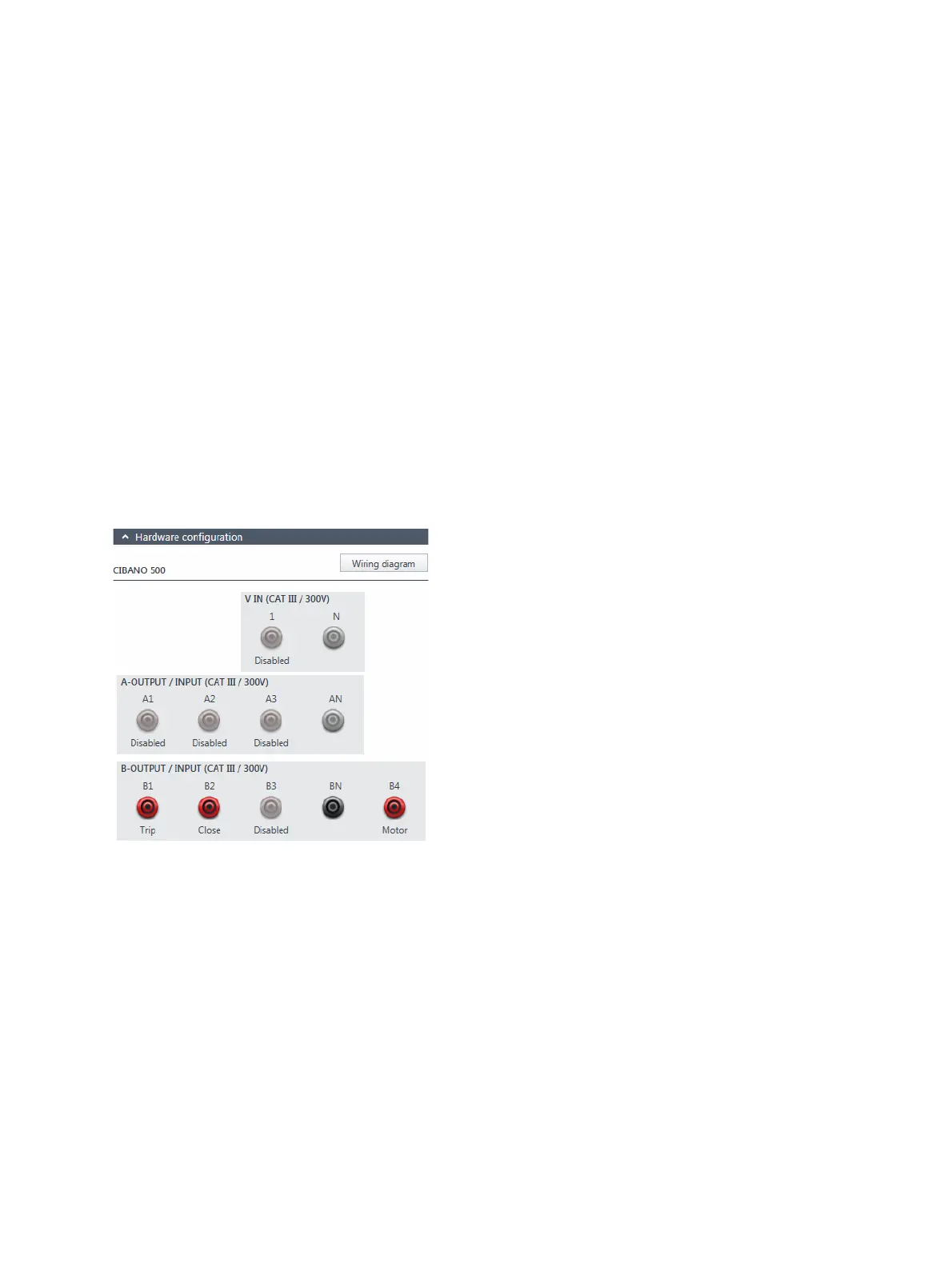

Figure 17-11: Hardware configuration of the Motor Current test
Note: You can control three circuit breaker’s motors simultaneously. In this case connect the phase
contact of the motor 1 to the A1 socket, the phase contact of the motor 2 to the A2 socket, the phase
contact of the motor 3 to the A3 socket, and the neutral motor contacts to the AN socket.
