Off-service diagnostic methods
17.1.5 Timing test with CIBANO 500 with the EtherCAT
®
module
The Timing test measures the contact timing of the circuit breaker. Depending on the selected sequence
all relevant timing values are automatically calculated.
Connection
To connect the test object to CIBANO 500:
1. In Primary Test Manager, open the Timing test.
2. In the Hardware configuration area, set the hardware configuration.

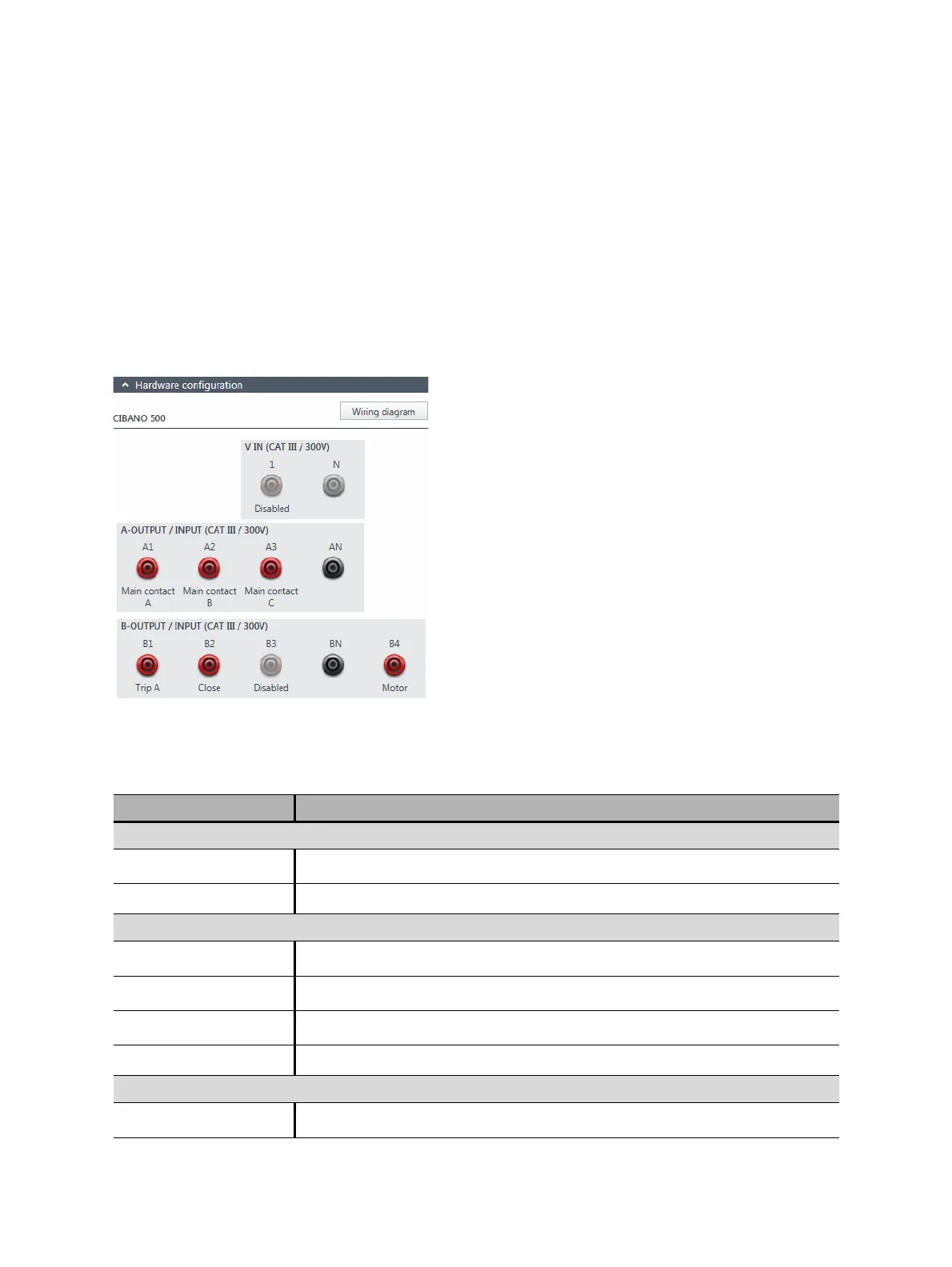

Figure 17-6: Hardware configuration of the Timing test
Table 17-6: Hardware configuration options of CIBANO 500
CIBANO 500 Option
V IN (CAT III / 300 V)
1
External source, Trigger IN
1
or Disabled
N Neutral connection of VIN
A-OUTPUT / INPUT (CAT III / 300 V)
A1
Main contact A, Close A, Motor A, Trigger IN
1
or Disabled
A2
Main contact B, Close B, Motor B, Trigger IN
1
or Disabled
A3
Main contact C, Close C, Motor C, Trigger IN
1
or Disabled
AN Common neutral connection for outputs/inputs in group A
B-OUTPUT / INPUT (CAT III / 300 V)
B1
Trip A, Trigger IN
1
, I clamp 1 or Disabled
