OMICRON 331
Accessories
22.5 Current sensor
22.5.1 Designated use
The current sensor is used to measure the operating times on both-side grounded gas insulated
switchgears (GIS) with grounding switches. During the dedicated Timing (CSM) test (see 17.3.5 "Timing
(CSM) test" on page 226) the sensor detects the change of current flow through the measured ground
connection of the grounding switch. The current sensor is only intended to be used with the CIBANO 500
test system.

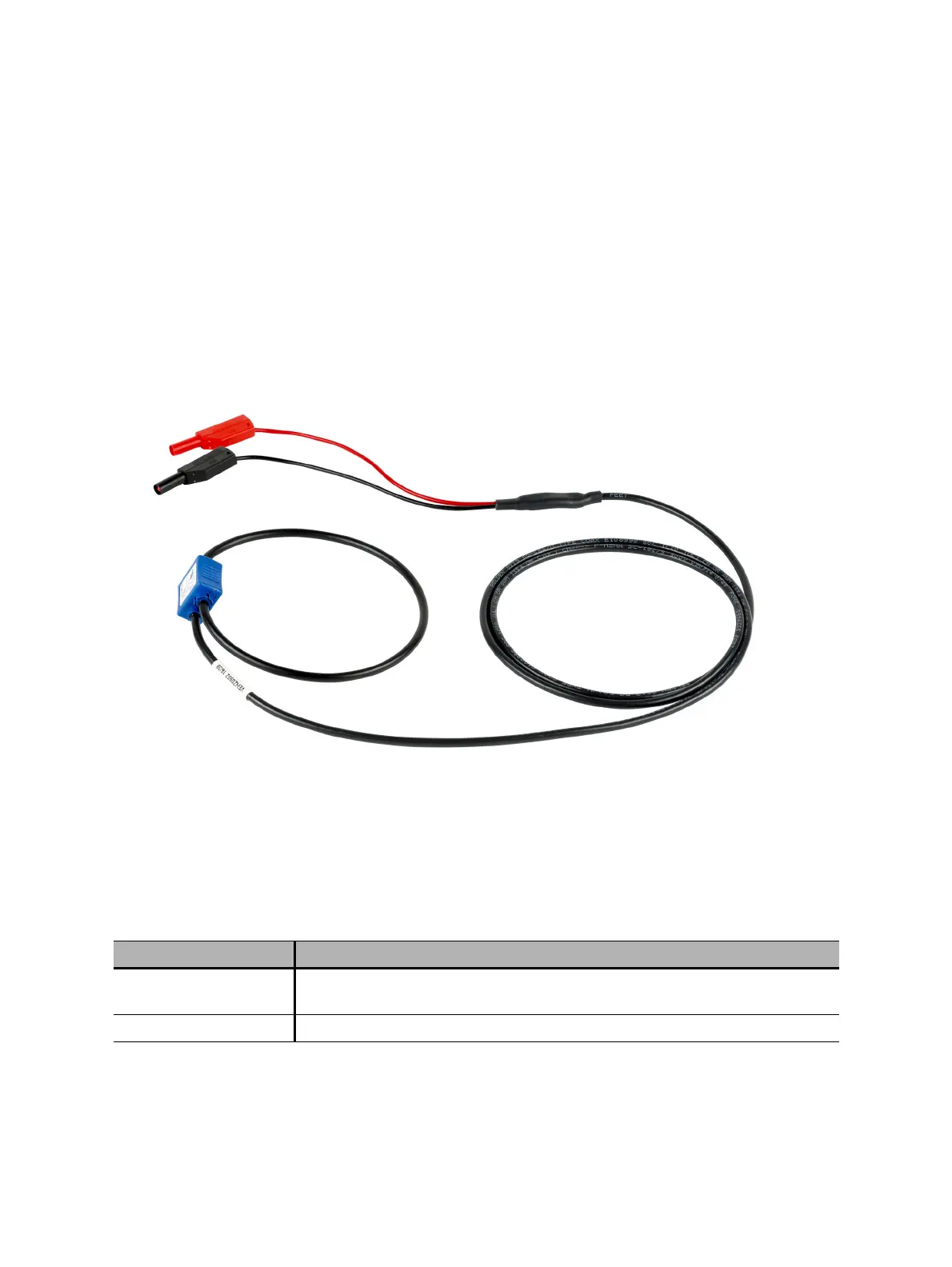

Figure 22-10: Current sensor
22.5.2 Technical data
Table 22-29: Current sensor specifications
Characteristic Rating
Primary nominal RMS
current
2.000 A
IP class IP 2X
