CIBANO 500 PTM User Manual
164 OMICRON
17.2.2 Test set and software startup
To put CIBANO 500 into operation and start Primary Test Manager:
1. Connect the CIBANO 500 grounding terminals properly to the substation ground.
2. Connect CIBANO 500 to a computer with the delivered Ethernet cable and switch on the computer.
3. Connect CIBANO 500 to the mains power supply by using the delivered power cord.
4. Switch on CIBANO 500 by pressing the mains power on/off switch on the side panel. The green
status light on the CIBANO 500 front panel (see Figure 3-1: "Front view of CIBANO 500" on
page 17) flashes for a short time and then extinguishes for approx. one minute. After it lights up, the
CIBANO 500 outputs carry no dangerous voltage or current.
5. Start Primary Test Manager and connect to CIBANO 500 as described in 5.4 "Start Primary Test
Manager and connect to CIBANO 500" on page 28.
If you could not connect to your CIBANO 500 device and the green light is permanently on, wait a few
seconds, and then proceed as follows:
1. Click More next to the Connect button, and then click Refresh.
2. Select the test system from the list, and then click Connect.

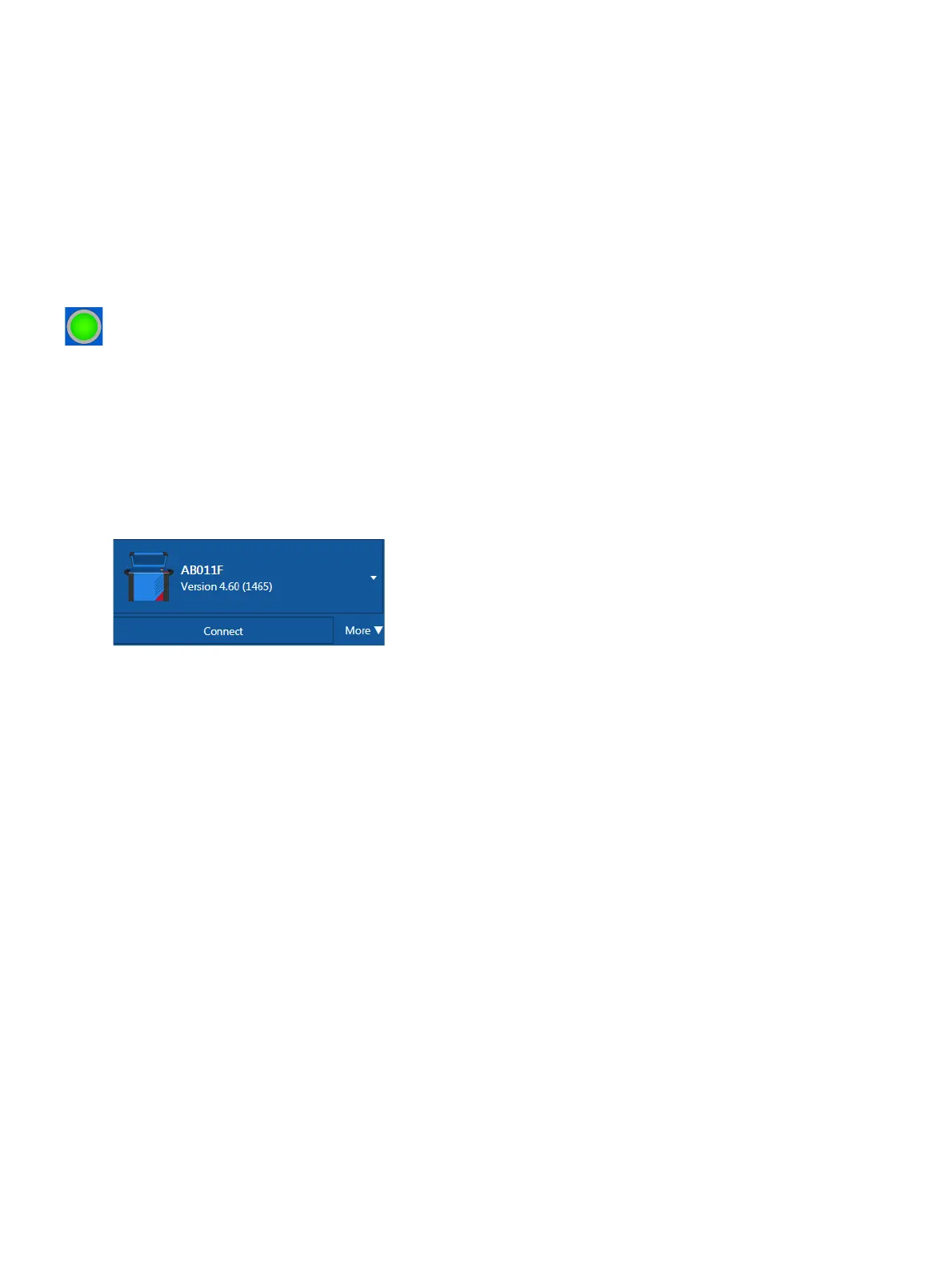

Figure 17-16: Connecting to CIBANO 500
If the CIBANO 500 device to which you want to connect is not displayed in the list of available devices,
proceed as described in 20.1 "Connecting to CIBANO 500" on page 295.
After you have started Primary Test Manager and connected to CIBANO 500, proceed as described
earlier in this User Manual. You can:
• Create new guided jobs (see 7 "Create new guided jobs" on page 50)
• Manage locations, assets, jobs and test reports (see 10 "Manage objects" on page 77)
• Create new manual jobs (see 8 "Create new manual jobs" on page 72)
• Open existing jobs (see 9 "Open jobs" on page 76)
• Generate test reports (see 13 "Generate test reports" on page 93)
The next sections describe the HV circuit breaker tests.
