Mounting kit

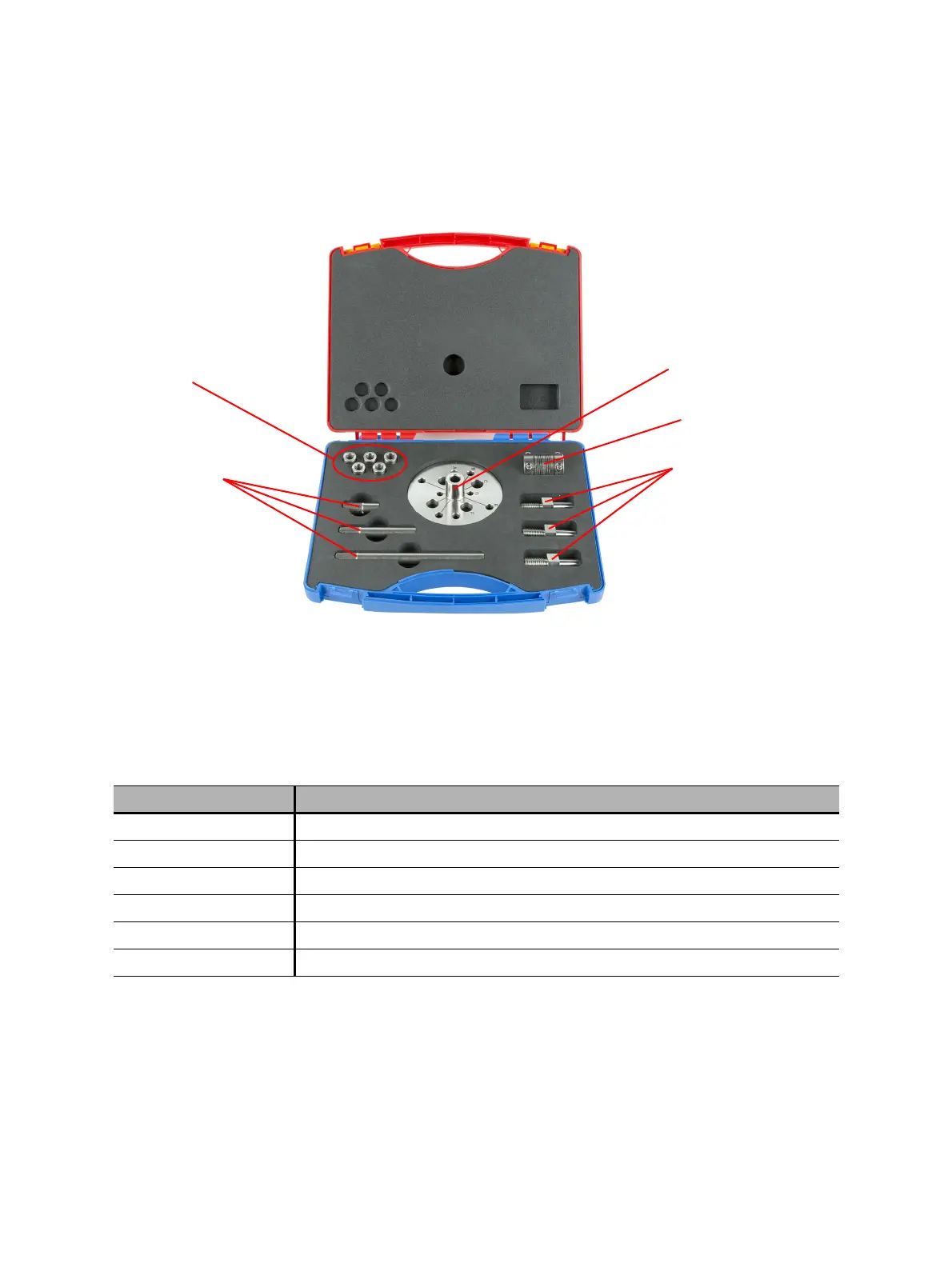

Figure 19-7: Mounting kit
The following table shows examples of circuit breakers fitting the drill holes in the adapter disk. You can
use the mounting kit for any other circuit breakers which fit the drill holes.
Table 19-1: Examples of circuit breakers fitting the adapter disk
Character on the disk Circuit breaker
A Siemens SPS/3AP <72.5 kV
B Siemens SPS/3AP 72.5 kV – 145 kV
C ABB HPL/LTB >145 kV
D Alstom GL >72.5 kV
E Siemens 3AP >145 kV
F ABB HPL/LTB >145 kV
Sleeves
Adapter disk rods
Adapter disk
Flexible coupling
Screw-in rods
