OMICRON 179
Off-service diagnostic methods
7. In the Hardware configuration area, set the hardware configuration and check whether Primary
Test Manager recognized all connected CB MC2 modules.

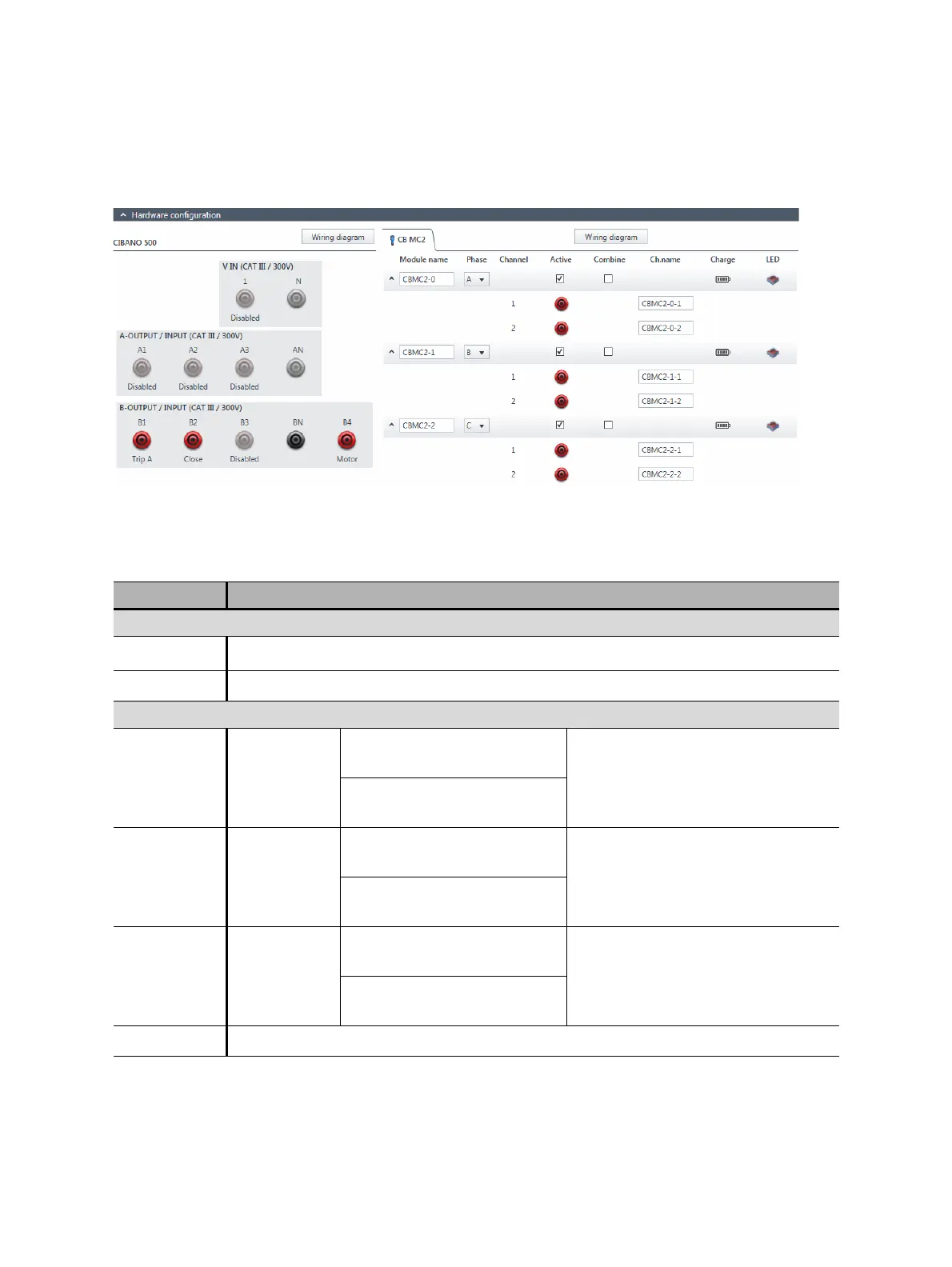

Figure 17-23: Hardware configuration of the Timing test
Table 17-38: Hardware configuration options of CIBANO 500
CIBANO 500 Option
V IN (CAT III / 300 V)
1
External source, Trigger IN
1
or Disabled
N Neutral connection of VIN
A-OUTPUT / INPUT (CAT III / 300 V)
A1 AUX 1
Dry contact
(potential-free)
Close A, Motor A, Trigger IN
1
or
Disabled
Wet contact
(with potential)
A2 AUX 2
Dry contact
(potential-free)
Close B, Motor B, Trigger IN
1
or
Disabled
Wet contact
(with potential)
A3 AUX 3
Dry contact
(potential-free)
Close C, Motor C, Trigger IN
1
or
Disabled
Wet contact
(with potential)
AN Common neutral connection for outputs/inputs in group A
