OMICRON 217
Off-service diagnostic methods
Because the grounding switch connects the line conductor to the ground connection, the line conductor
can usually be accessed from outside of the GIS.

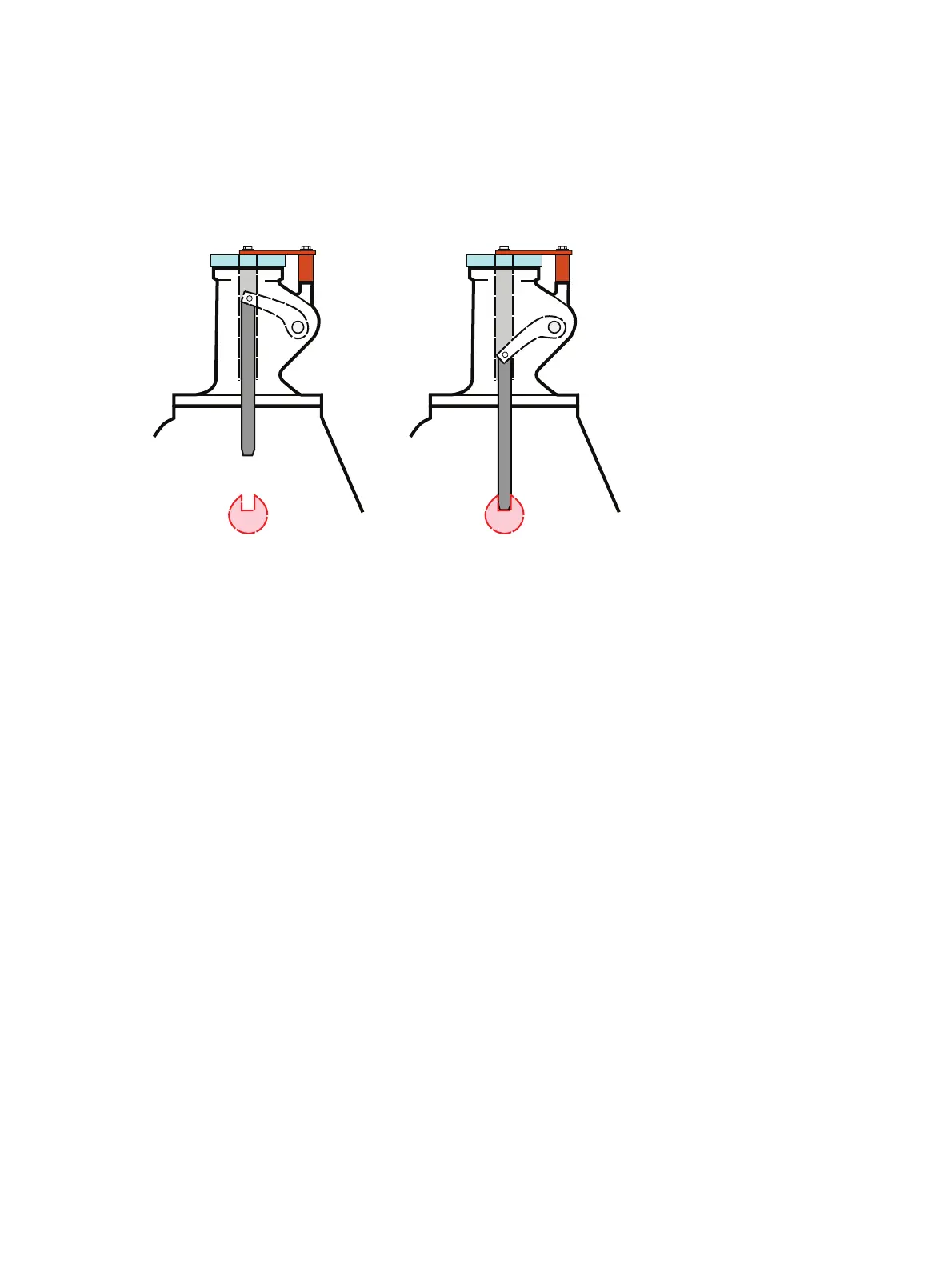

Figure 17-35: How a grounding switch works
Grounding switch open Grounding switch closed
