CIBANO 500 PTM User Manual
64 OMICRON
Bushings tab
On the Bushings tab, you can specify bushings mounted on the circuit breaker.

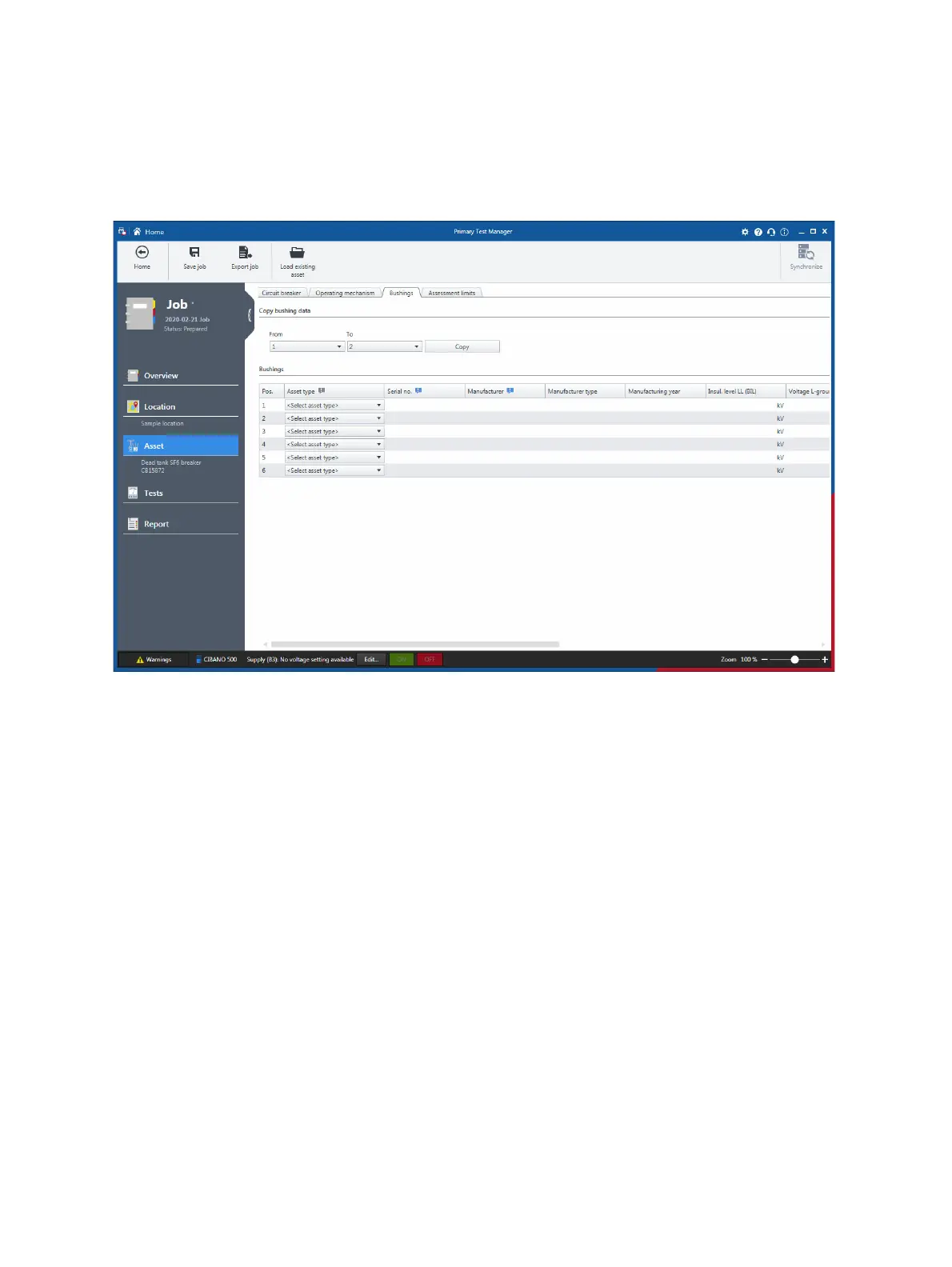

Figure 7-11: Circuit breaker view: Bushings tab
To specify a bushing:
1. From the Asset type list, select the type of the bushing for all circuit breaker’s terminals.
2. Enter the bushing data (see 16 "Spare bushing data" on page 116).
Under Copy bushing data, you can copy data of a bushing to other bushings.
► To copy the bushing data, select the respective bushings from the From and To lists, and then click
Copy.
