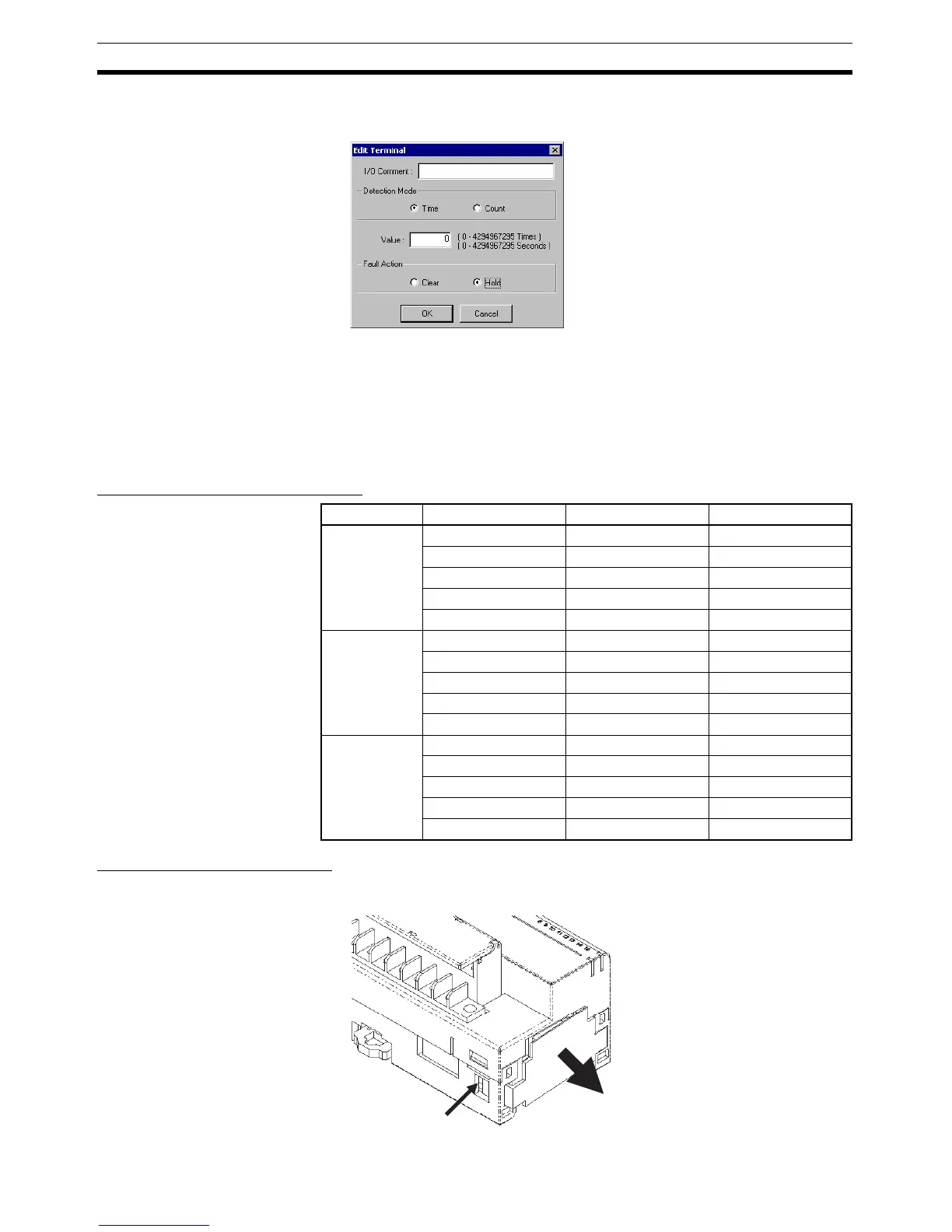

Remote I/O Terminals with Transistors Section 5-5
Select either Clear or Hold for the output during a communications error.
Click the OK Button.
4. After checking that the setting that the output during a communications er-
ror is reflected in the Edit Device Parameters Window, select the General
Tab and click the Download Button.
5-5-2 Increasing I/O Using an Expansion Unit
A single Basic Unit can be combined with a single Expansion Unit.
Expansion Unit Combinations
Mounting Expansion Units
1,2,3... 1. Remove the cover from the right side of the Basic Unit.
Basic Unit Expansion Unit Inputs Outputs
DRT2-ID16 None 16 0
XWT-ID08-(1) 24 0
XWT-OD08-(1) 16 8
XWT-ID16-(1) 32 0
XWT-OD16-(1) 16 16
DRT2-OD16 None 0 16
XWT-ID08-(1) 8 16
XWT-OD08-(1) 0 24
XWT-ID16-(1) 16 16
XWT-OD16-(1) 0 32
DRT2-ROS16 None 0 16
XWT-ID08-(1) 8 16
XWT-OD08-(1) 0 24
XWT-ID16-(1) 16 16
XWT-OD16-(1) 0 32
