135
Remote I/O Terminals with Transistors Section 5-5

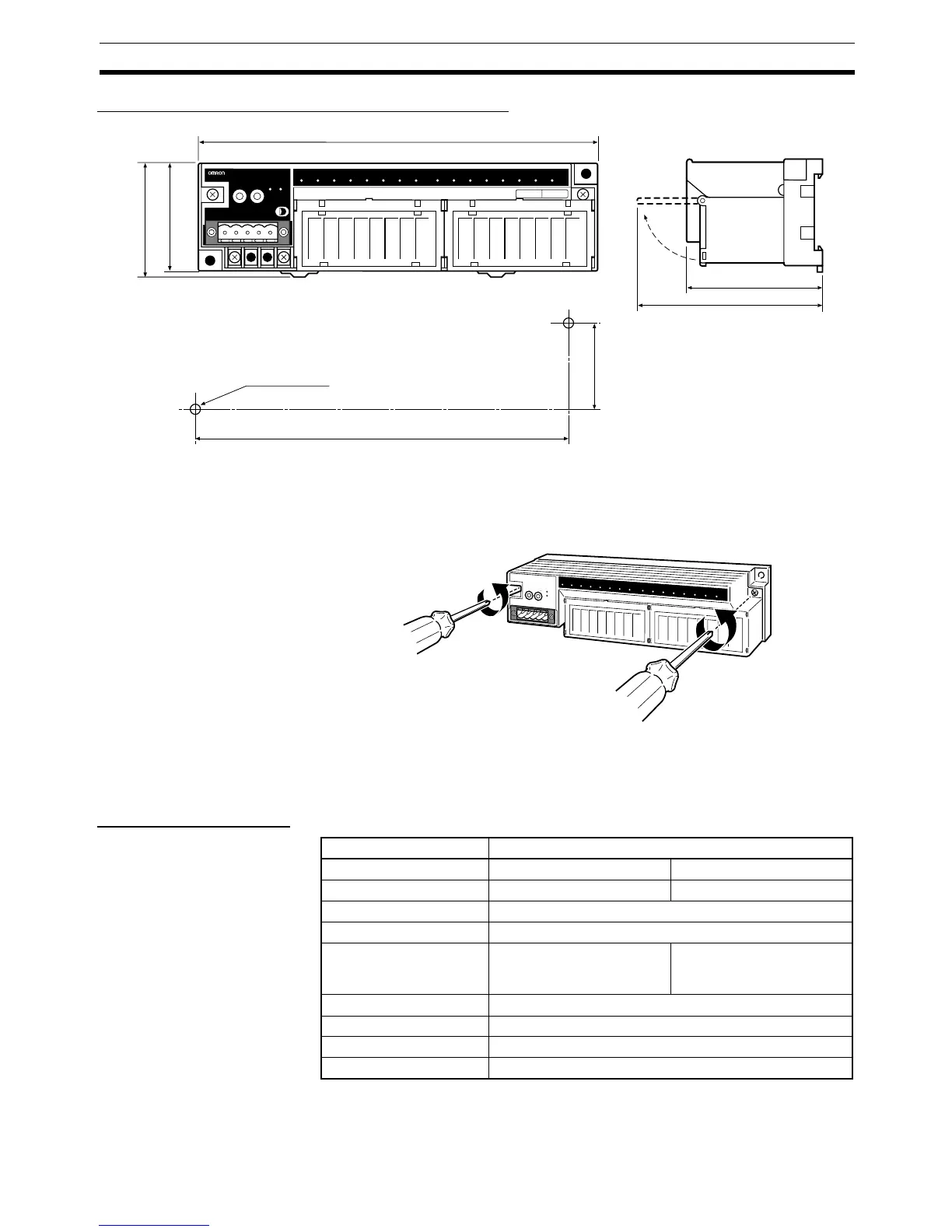

Dimensions: DRT2-ID16TA and DRT2-ID16TA-1
Note The circuit section can be removed by loosening the circuit removal screws.
(Refer to Components of the DRT2-ID16TA and DRT2-ID16TA-1.)
Always turn OFF the communications, internal, and I/O power supplies before
removing or attaching the circuit section.
5-5-14 Transistor Remote Output Terminals with 16 Points and 3-tier I/O
Terminal Blocks: DRT2-OD16TA (NPN) and DRT2-OD16TA-1 (PNP)
Output Specifications
170±0.2
40±0.2
58
(83)
180
50
(54)
Two, 4.2 dia. or M4
Mounting holes
Values in parentheses are
reference values.
DRT2-ID16TA
REMOTE TERMINAL DC24V
NS
MS
IN
Item Specification
Model DRT2-OD16TA DRT2-OD16TA-1
Internal I/O common NPN PNP
Output points 16 points
Rated output current 0.5 A/point
Residual voltage 1.2 V max. (at 0.5 A,
between each output termi-
nal and G)
1.2 V max. (at 0.5 A,
between each output termi-
nal and V)
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points
To Next Page
