188
Connector Terminals with Transistors Section 5-6

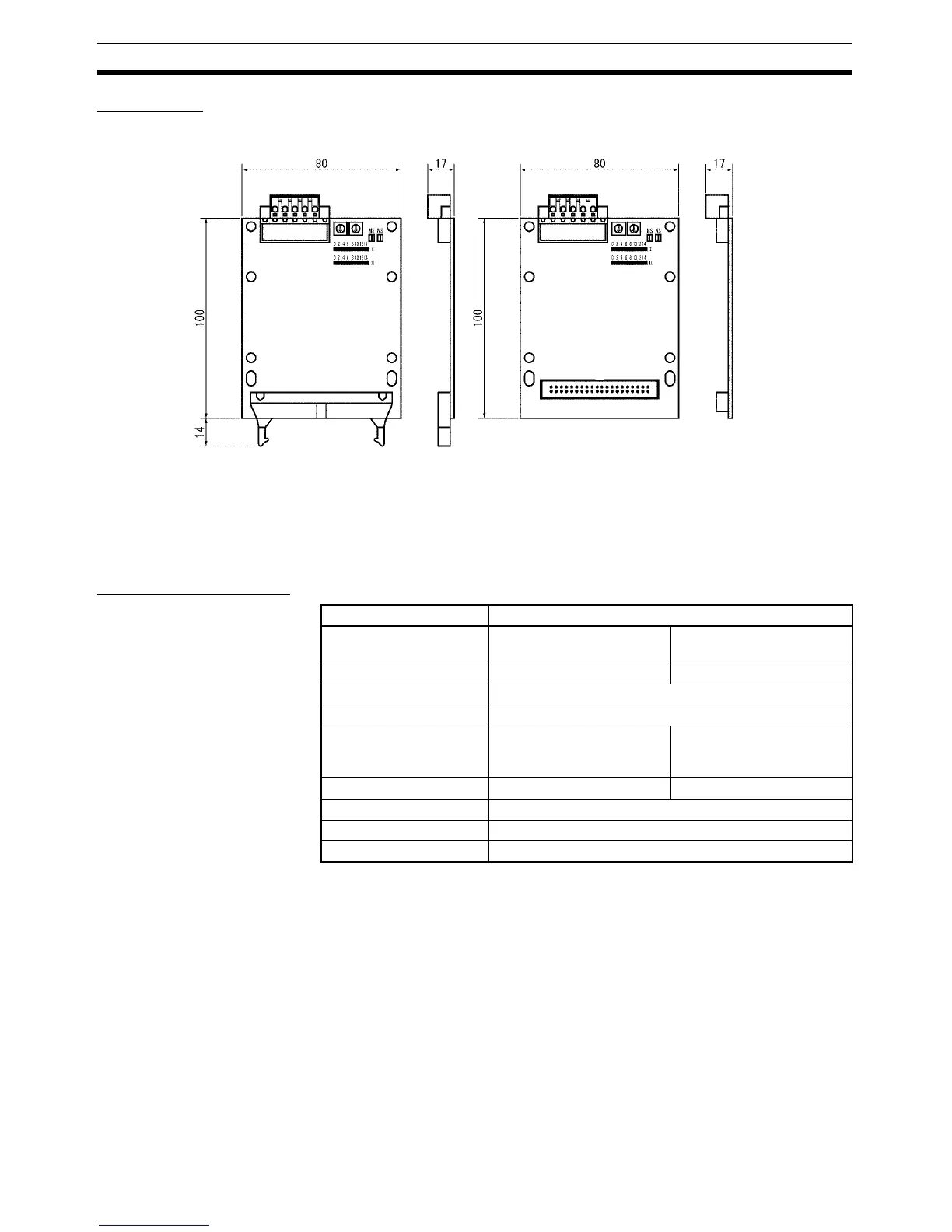

Dimensions
5-6-11 Board-type Connector Terminals with 32 Outputs and MIL
Connectors: DRT2-OD32B (NPN)/DRT2-OD32B-1 (PNP) and
DRT2-OD32BV (NPN)/DRT2-OD32BV-1 (PNP)
Output Specifications
Note Do not allow the total load current to exceed 4 A and do not allow the load cur-
rent on either the V or G terminal to exceed 1 A.
DRT2-ID32B (NPN)/DRT2-ID32B-1 (PNP)
DRT2-ID32BV (NPN)/DRT2-ID32BV-1 (PNP)
Item Specification
Model DRT2-OD32B
DRT2-OD32BV
DRT2-OD32B-1
DRT2-OD32BV-1
Internal I/O common NPN PNP
Output points 32 points
Rated output current 0.3 A/point, 4 A/common (See note.)
Residual voltage 1.2 V max. (at 0.3 A,
between each output termi-
nal and G)
1.2 V max. (at 0.3 A,
between each output termi-
nal and V)
Leakage current 0.1 mA max. 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 32 points with one common circuit
