278
Standard Environment-resistive Terminals Section 6-5

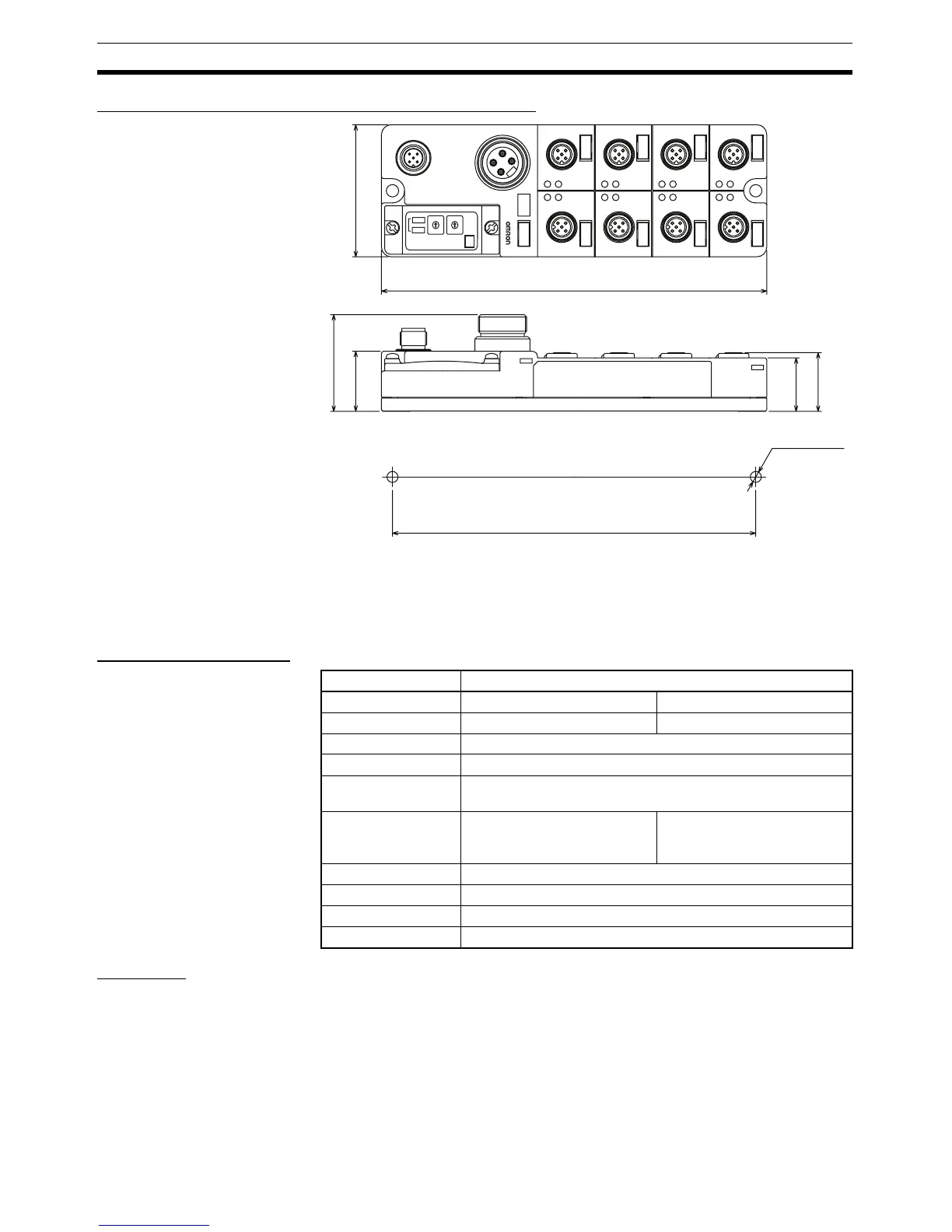

Dimensions: DRT2-OD08CL and DRT2-OD08CL-1
6-5-7 Environment-resistive Terminals with 16 Transistor Outputs
(IP67): DRT2-WD16CL (NPN) and DRT2-WD16CL-1 (PNP)
Output Specifications
Indicators
I/O Status Indicators The I/O status indicator displays and their meanings are shown in the follow-
ing table. Refer to the section following on names of components and func-
tions for details on the location of the I/O status indicators. In the indicator
60
175
Two 5.3 dia. or M5
mounting holes
43.9
27.3
165±0.2
24.3
26.6
5
4
3
2
1
0
9
8
7
6
A
1
B
2
A
B
A
3
B
4
A
B
A
5
B
6
A
B
A
7
B
8
A
B
IN
NOD
ADR
X 10
X 1
AUX
PWR
5
4
3
2
1
0
9
8
7
6
Mounting hole dimensions
Item Specifications
Model DRT2-WD16CL DRT2-WD16CL-1
Internal I/O common NPN PNP
Output points 16 points
Rated output current 0.5 A/point, 2.0 A/common
I/O power supply
voltage
20.4 to 26.4 V DC (24 V DC, −15 to +10%)
Residual voltage 1.2 V max. (0.5 A DC,
between each output terminal
and G)
1.2 V max. (0.5 A DC,
between each output terminal
and V)
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 16 points with one common
To Next Page
