10

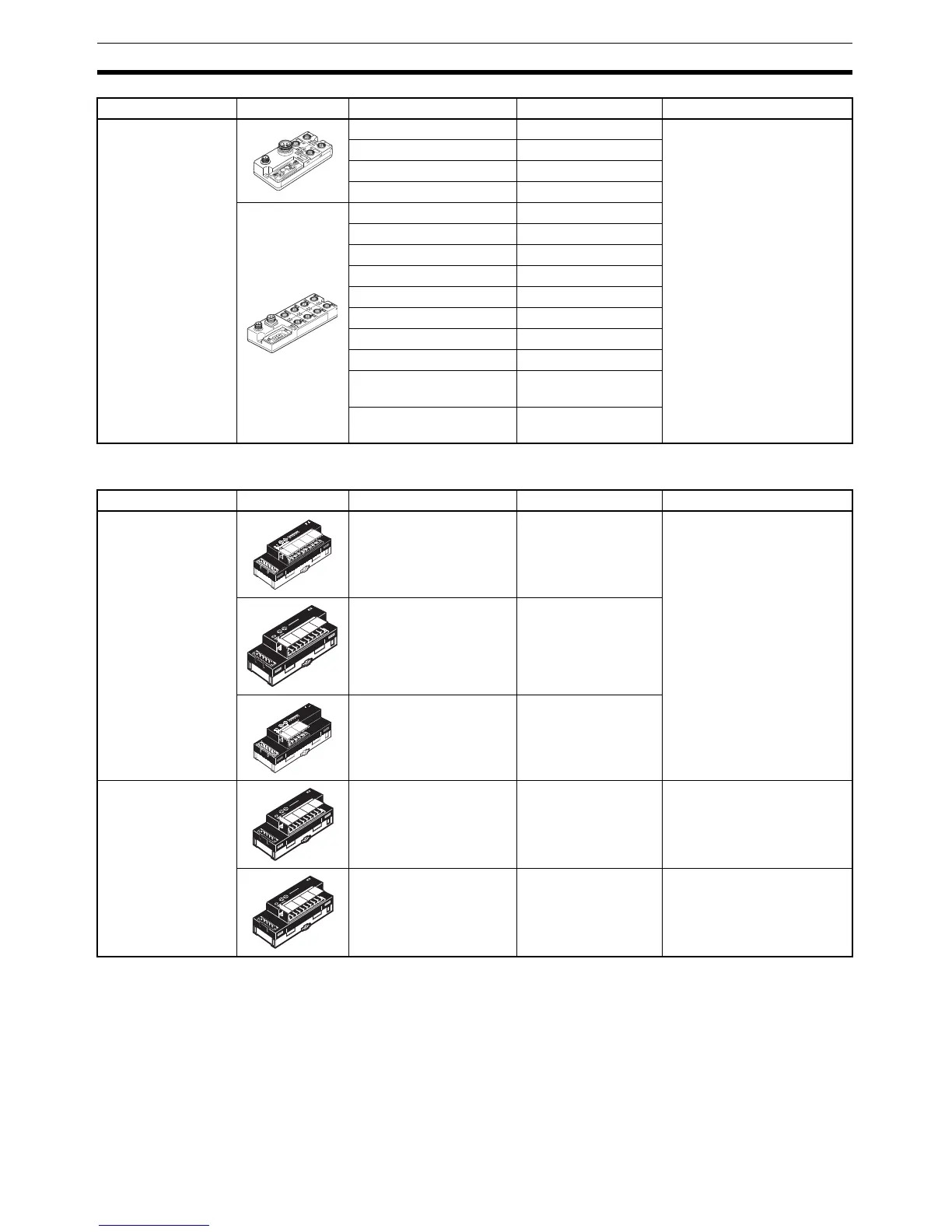

DRT2 Slaves Section 1-2
1-2-3 Analog Slaves
Environment-resis-
tive Terminals, Stan-
dard Models
4 input points (NPN) DRT2-ID04CL Waterproof, oil-proof, and
spatter-proof construction
(IP67).
Not equipped with detection
functions.
4 input points (PNP) DRT2-ID04CL-1
4 output points (NPN) DRT2-OD04CL
4 output points (PNP) DRT2-OD04CL-1
8 input points (NPN) DRT2-ID08CL
8 input points (PNP) DRT2-ID08CL-1
16 input points (NPN) DRT2-HD16CL
16 input points (PNP) DRT2-HD16CL-1
8 output points (NPN) DRT2-OD08CL
8 output points (PNP) DRT2-OD08CL-1
16 output points (NPN) DRT2-WD16CL
16 output points (PNP) DRT2-WD16CL-1
8 input points/8 output
points (NPN)
DRT2-MD16CL
8 input points/8 output
points (PNP)
DRT2-MD16CL-1
Name Appearance I/O points Model number Remarks
Analog Terminals 4 input points
(0 to 5 V, 1 to 5 V, 0 to
10 V, −10 to 10 V, 0 to
20 mA, 4 to 20 mA)
DRT2-AD04 Terminal block mounted/
removed using screws.
The DRT2-AD04H is a High-
resolution Terminal (1/30,000
FS).
4 input points
(0 to 5 V, 1 to 5 V, 0 to
10 V, 0 to 20 mA, 4 to
20 mA)
DRT2-AD04H
2 output points
(0 to 5 V, 1 to 5 V, 0 to
10 V, −10 to 10 V, 0 to
20 mA, 4 to 20 mA)
DRT2-DA02
Temperature Input
Ter minal s
4 input points
(Switchable between R,
S, K1, K2, J1, J1, T, E, B,
N, L1, L2, U, W, and
PL2.)
DRT2-TS04T Thermocouple input
4 input points
(Switchable between PT,
JPT, PT2, and JPT2.)
DRT2-TS04P Platinum resistance ther-
mometer input
Name Appearance I/O points Model number Remarks
