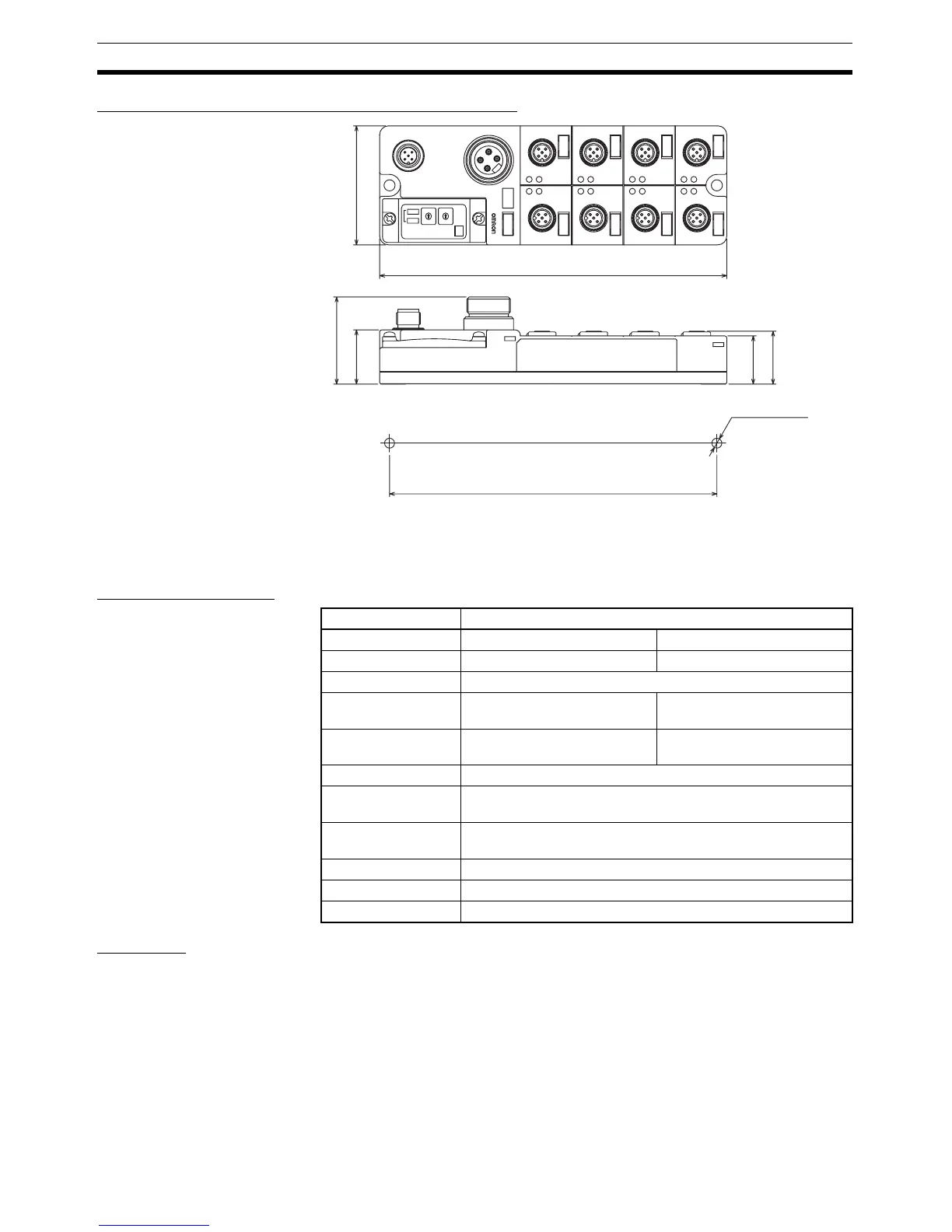

Dimensions: DRT2-ID08CL and DRT2-ID08CL-1
6-5-4 Environment-resistive Terminals with 16 Transistor Inputs (IP67):
DRT2-HD16CL (NPN) and DRT2-HD16CL-1 (PNP)
Input Specifications
Indicators
I/O Status Indicators The I/O status indicator displays and their meanings are shown in the follow-
ing table. Refer to the section following on names of components and func-
tions for details on the location of the I/O status indicators. In the indicator
60
175
Mounting hole dimensions
Two 5.3 dia. or M5
mounting holes
43.9
27.3
165±0.2
24.3
26.6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
A
1
B
2
A
B
A
3
B
4
A
B
A
5
B
6
A
B
A
7
B
8
A
B
IN
NOD
ADR
X 10
X 1
AUX
PWR
Item Specifications
Model DRT2-HD16CL DRT2-HD16CL-1
Internal I/O common NPN PNP
Input points 16 points
ON voltage 15 V DC min. (between each
input terminal and V)
15 V DC min. (between each
input terminal and G)
OFF voltage 5 V DC max. (between each
input terminal and V)
5 V DC max. (between each
input terminal and G)
OFF current 1 mA max.
Input current 6.0 mA max./point (for 24 V DC), 3.0 mA min./point (for 17 V
DC)
I/O power supply
voltage
20.4 to 26.4 V DC (24 V DC, −15 to +10%)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 16 points with one common
