124
Remote I/O Terminals with Transistors Section 5-5

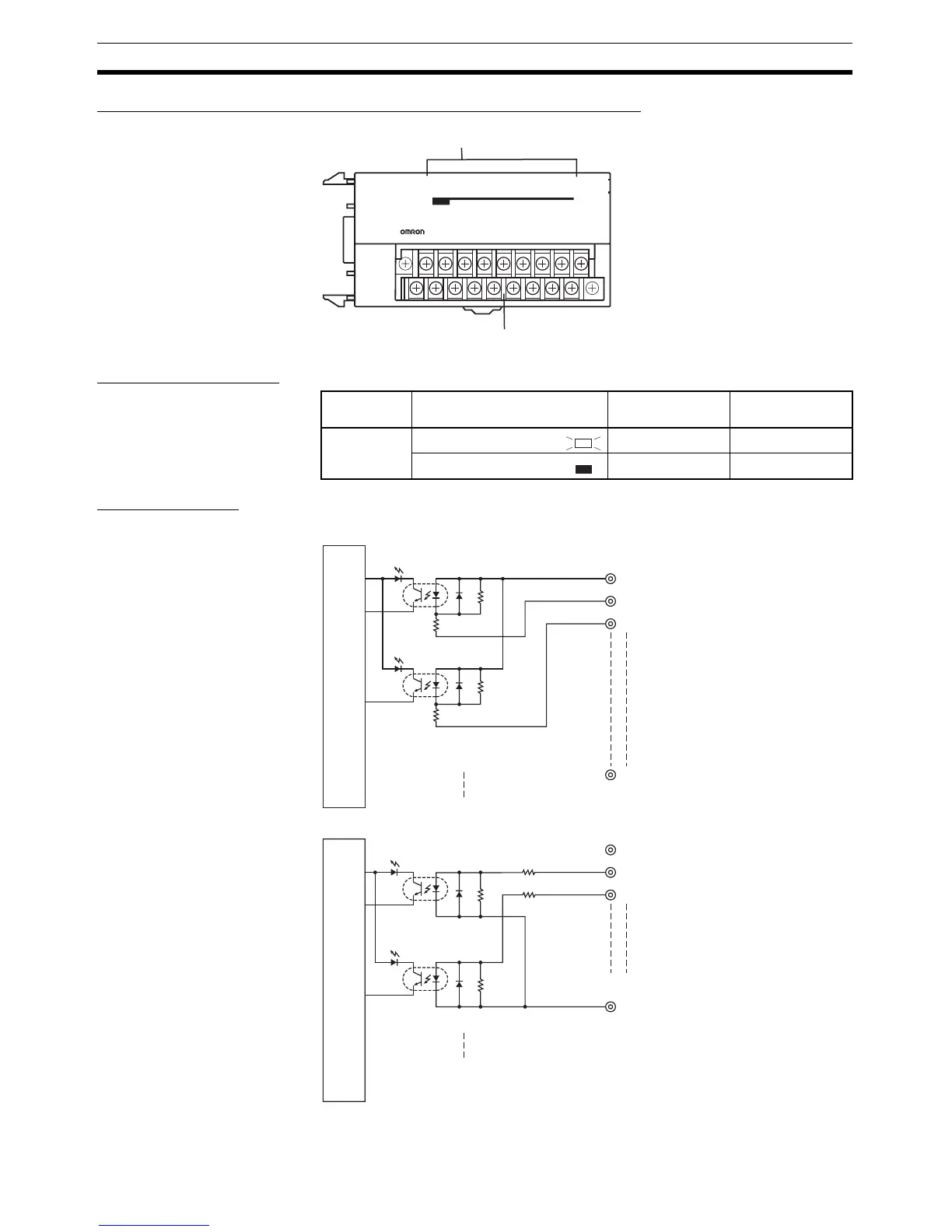

Component Names and Functions: XWT-ID16 and XWT-ID16-1
Operation Indicators The operation indicators show the status of the inputs.
Internal Circuits
XWT-ID16 (NPN)
XWT-ID16-1 (PNP)
XWT-ID16
REMOTE TERMINAL
IN
0141513121110987654321
Operation indicators
Indicate the input status of each contact.
Detachable terminal block
Indicator
name
Indicator status Definition Meaning
0 to 15
Lit yellow.
Contacts ON Contacts are ON
OFF
Contacts OFF Contacts are OFF
V 24 VDC
0
1
G
Internal circuits
Photo-
coupler
Photo-
coupler
V 24 V DC
0
1
G
Internal circuits
Photo-
coupler
Photo-
coupler
