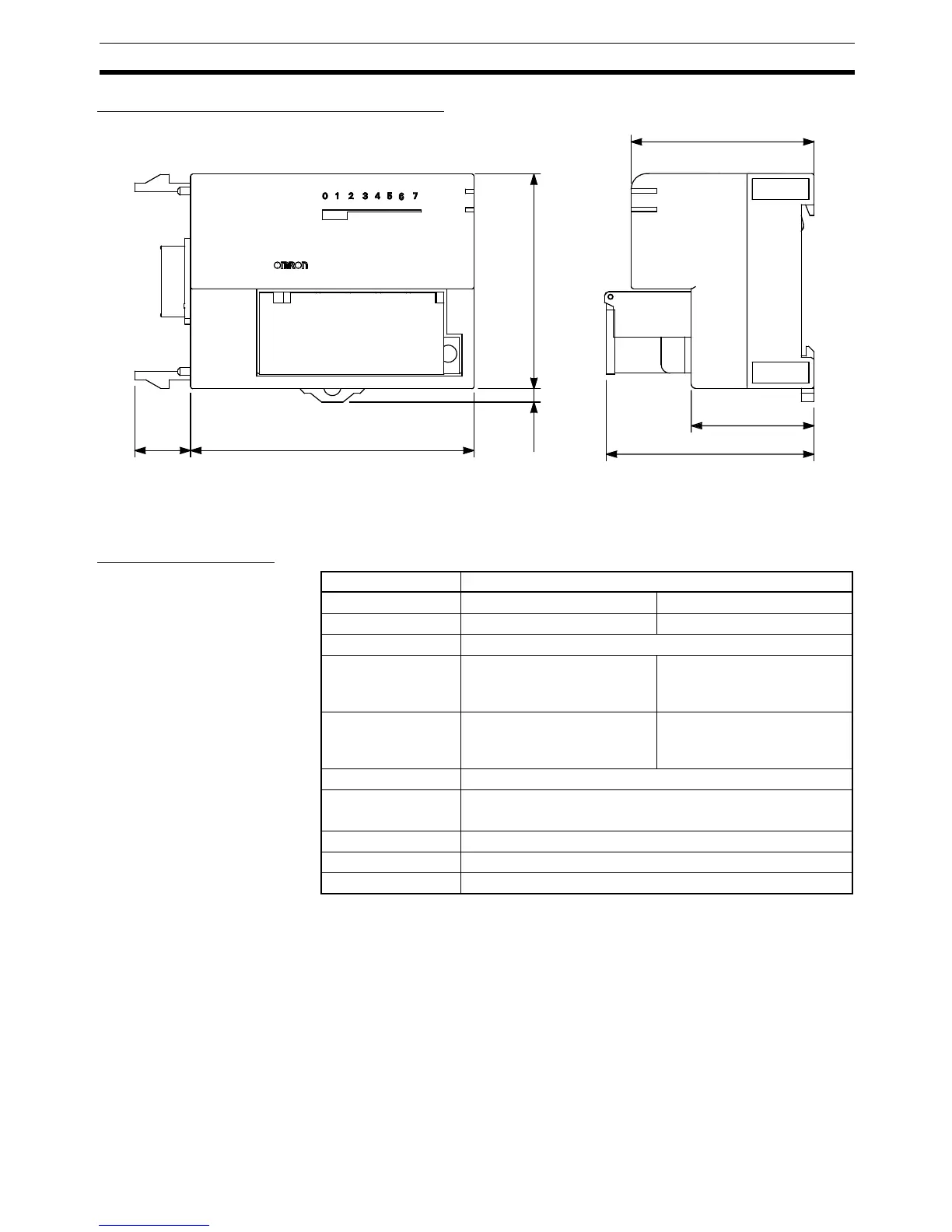

Remote I/O Terminals with Transistors Section 5-5
Dimensions: XWT-ID08 and XWT-ID08-1
5-5-10 Remote I/O Terminal Expansion Units 16 Transistor Inputs: XWT-
ID16 (NPN) and XWT-ID16-1 (PNP)
Input Specifications
13
66
3.1
50
4
9
.
7
2
9
.
9
4
3
.
9
Item Specifications
Model XWT-ID16 XWT-ID16-1
Internal I/O common NPN PNP
Input points 16 points
ON voltage 15 V DC min.
(between each input terminal
and V)
15 V DC min.
(between each input terminal
and G)
OFF voltage 5 V DC max.
(between each input terminal
and V)
5 V DC max.
(between each input terminal
and G)
OFF current 1 mA max.
Input current 6.0 mA max./point (for 24 V DC)
3.0 mA min./point (for 17 V DC)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 16 points with one common
