24
Setting and Wiring Hardware Section 2-3

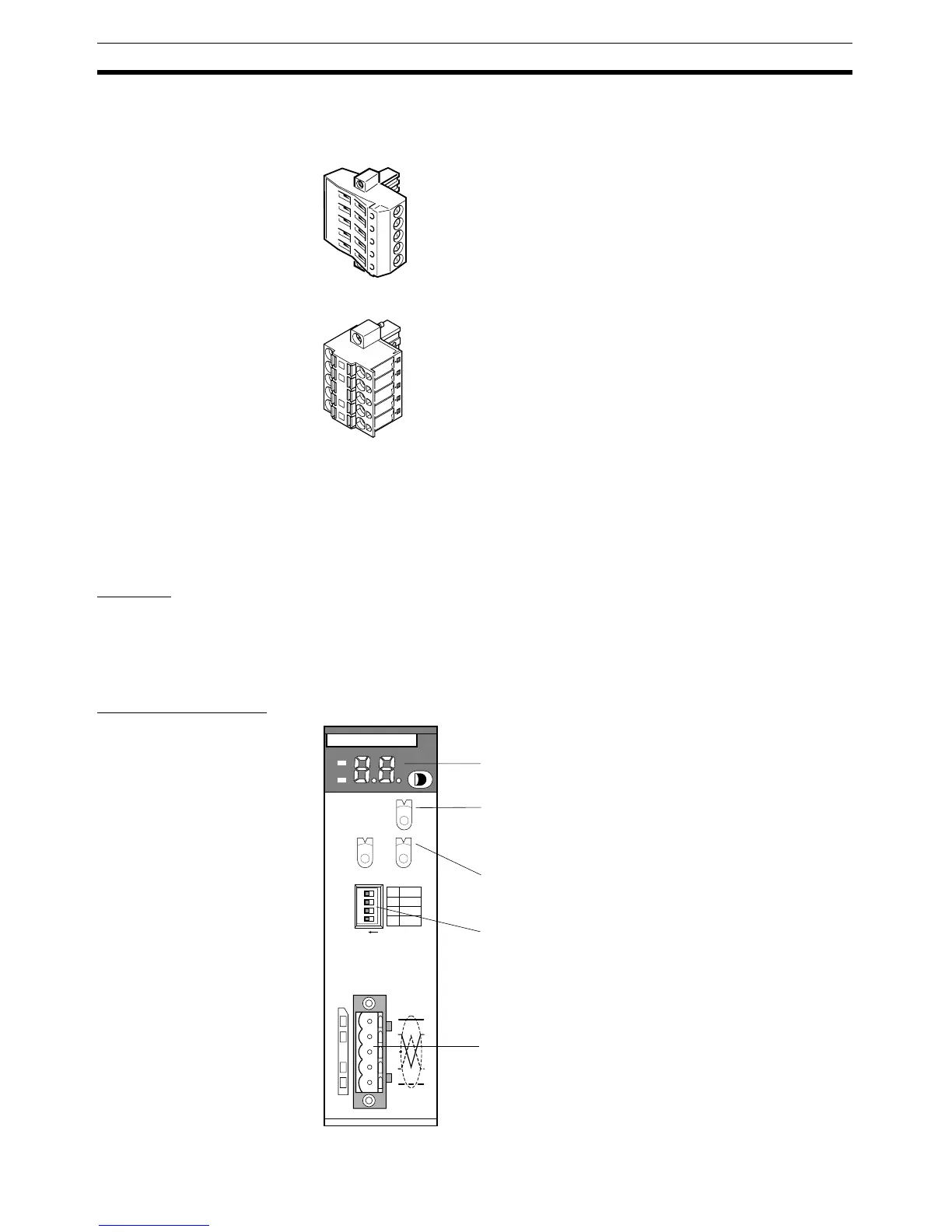

Note Use the OMRON Connectors shown below when using Thick Cables and
multi-drop connections for wiring.
XW4B-05C4-TF-D (With set screws)
XW4G-05C4-TD-D (With set screws)
2-3 Setting and Wiring Hardware
Use the following procedures to mount, set, and wire the hardware.
2-3-1 Mounting and Setting the Master Unit
Settings The components, functions, and switch settings for the CS1W-DRM21,
CS1W-DRM21-V1 or CJ1W-DRM21 Master Unit mounted to a CS/CJ-series
PLC are shown as an example in the following diagram.
For information on switch settings, refer to the operation manual for the Mas-
ter Unit.
CS1W-DRM21 (-V1)
UNIT
No.
NODE
ADR
ON
DRM21 CS
MS
NS
4
3
2
1
DR0
DR1
ESTP
HOLD
X10
1
9
8
7
6
5
4
3
2
1
0
X10
0
9
8
7
6
5
4
3
2
1
0
1234
F
E
D
C
B
A
9
8
7
6
5
4
3
2
1
0
Unit No. switch
This rotary switch sets the single-digit hexadecimal
unit number of the Master on the DeviceNet network.
Indicators
Node address switches
These rotary switches set the double-digit decimal
node address of the Unit.
DIP switch
These pins have the following functions:
Pins 1 and 2: Baud rate
Pins 3: Continue/stop remote I/O communications for
error (for Master functions)
Pin 4: Hold/clear I/O for communications error (for
Slave functions).
Communications connector
This connector is connected to the Network
communications cable. Communications power is
also supplied through this connector. An XW4B-
05C1-H1-D Parallel Connector with Screws is
provided as the node connector.
