220

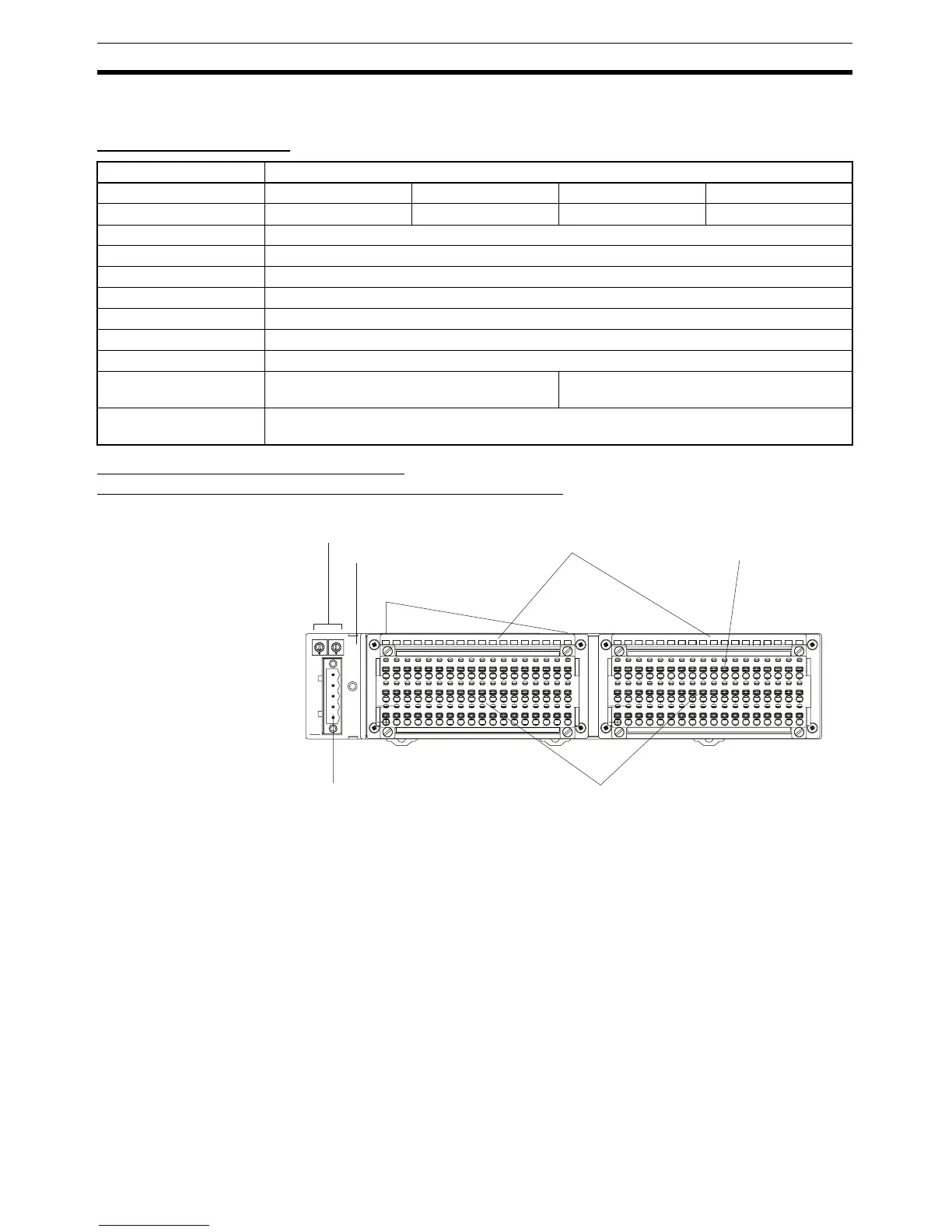

Screw-less Clamp Terminals Section 5-7
5-7-7 Screw-less Clamp Terminals with and 32 Transistor Outputs
Output Specifications
Component Names and Functions
(Same for DRT2-OD32SL(-1) and DRT2-OD32SLH(-1))
Item Specification
Model DRT2-OD32SL DRT2-OD32SL-1 DRT2-OD32SLH DRT2-OD32SLH-1
Internal I/O common NPN PNP NPN PNP
Output points 32 points
I/O power supply voltage 20.4 to 26.4 V DC (24 V DC, −15% to 10%)
Output current 0.5 A/point, 4.0 A/common
Residual voltage 1.2 V max.
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Disconnection detection --- Operates at current consumption of 3 mA/
point max. (Not detected at 3 mA or less.)
Output when error
detected
According to hold/clear setting when error is detected. (The factory setting is for clear.)
MS
NS
I/O
I/O
I/O
I/O
DeviceNet Indicators
Rotary Switches (×10, ×1)
Used to set the node address.
Release Button
Releases terminal when
pressed down.
Communications Connector
Output Terminal Block
I/O Power Indicators
Used to check I/O power supply
status.
Output Indicators
Used to check detection results
and output status for each contact.
