Omron DRT2 SERIES DEVICENET SLAVES - OPERATION MANUAL 04-2008 User Manual

209
Screw-less Clamp Terminals Section 5-7
Note Wire colors have been changed according to revisions in the JIS standards for
photoelectric and proximity sensors. The colors in parentheses are the wire
colors prior to the revisions.

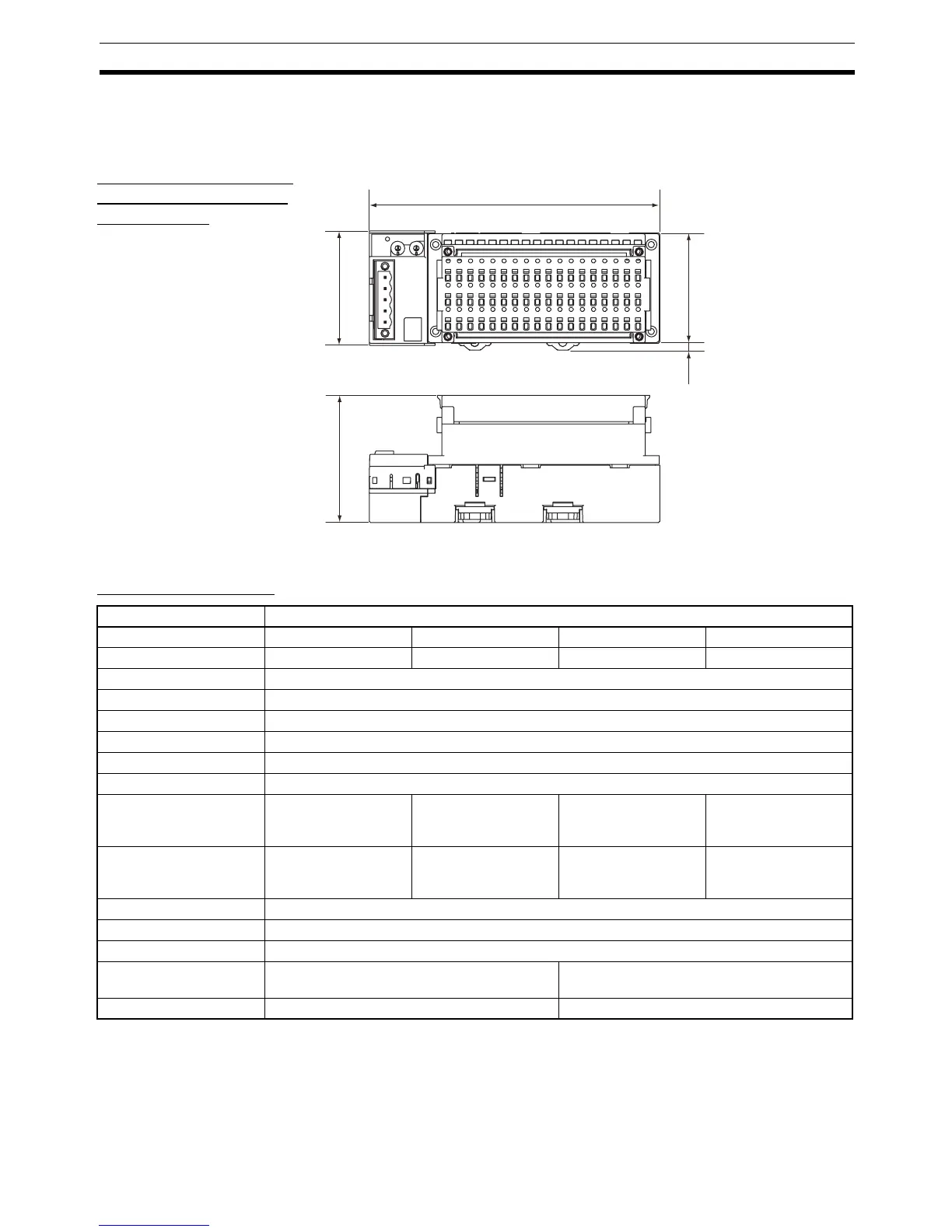

Dimensions (Same for
DRT2-ID16SL(-1) and
ID16SLH(-1))
5-7-5 Screw-less Clamp Terminals with 32 Transistor Inputs
Input Specifications
52
3.14
50
132
57.8
(mm)
Item Specification
Model DRT2-ID32SL DRT2-ID32SL-1 DRT2-ID32SLH DRT2-ID32SLH-1
Internal I/O common NPN PNP NPN PNP
Input points 32 points
I/O power supply voltage 20.4 to 26.4 V DC (24 V DC, −15% to 10%)
Input current 6.0 mA max./point at 24 V DC, 3.0 mA min./point at 17 V DC
Input resistance 4 kΩ
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
ON voltage 15 V DC min.
(between each input
terminal and V)
15 V DC min.
(between each input
terminal and G)
15 V DC min.
(between each input
terminal and V)
15 V DC min.
(between each input
terminal and G)
OFF voltage 5 V DC max.
(between each input
terminal and V)
5 V DC max.
(between each input
terminal and G)
5 V DC max.
(between each input
terminal and V)
5 V DC max.
(between each input
terminal and G)
ON current 3 mA min.
OFF current 1 mA max.
Number of circuits 16 points with one common
Power supply short-cir-
cuit protection
--- Operates at 50 mA/pt. min.
Disconnection detection --- Operates at 0.3 mA/pt. max.
