DeviceNet Remote I/O Communications Section 3-2
Note The above method can be used only if the Master Unit is a CS/CJ-series
DeviceNet Unit. When using a CVM1/CV-series DeviceNet Master Unit, a
C200HX/HG/HE/HS DeviceNet Master Unit, or another company’s Master
Unit, select the I/O data from the pull-down menu for the default connection
path in the Slave’s Edit Device Parameters Window.
3-2-2 I/O Allocations for Smart Slaves
General-purpose
Slaves and
Environment-resistive
Slaves
DRT2-slave data can be allocated for remote I/O communications with the
Master Unit using any of the following methods.
1,2,3... 1. Allocating only real I/O data (default)
2. Allocating real I/O data and Generic Status Flags together
3. Allocating real I/O data and Generic Status Flags independently
Method 2 can be performed by selecting the I/O data and flags from the
pull-down menu for the Slave’s default connection path using the Configu-
rator.
Method 3 can be performed by allocating real I/O data and Generic Status
Flags independently in the Master’s connection path using the Configura-
tor. (This method can be used only with CS/CJ-series Master Units.)
Type Selecting I/O data and allocating to user-defined addresses
Description Select up to two types of I/O data, and allocate to user-defined addresses in the Master Unit.
Method 1. Select up to two types of I/O data using the Configurator.
2. Allocate the selected I/O data to user-defined addresses in the Master Unit.
Configuration
Setting method
with Configurator
1. In the Master’s Edit Device Parameters Window, select the Smart Slave to be set, and specify the
connection in the Advanced Setting Window. Select the I/O data (pattern) in the connection path
setting.
2. In the Master’s Edit Device Parameters Window, allocate Slave I/O.
B
A
C
E
D
E
A

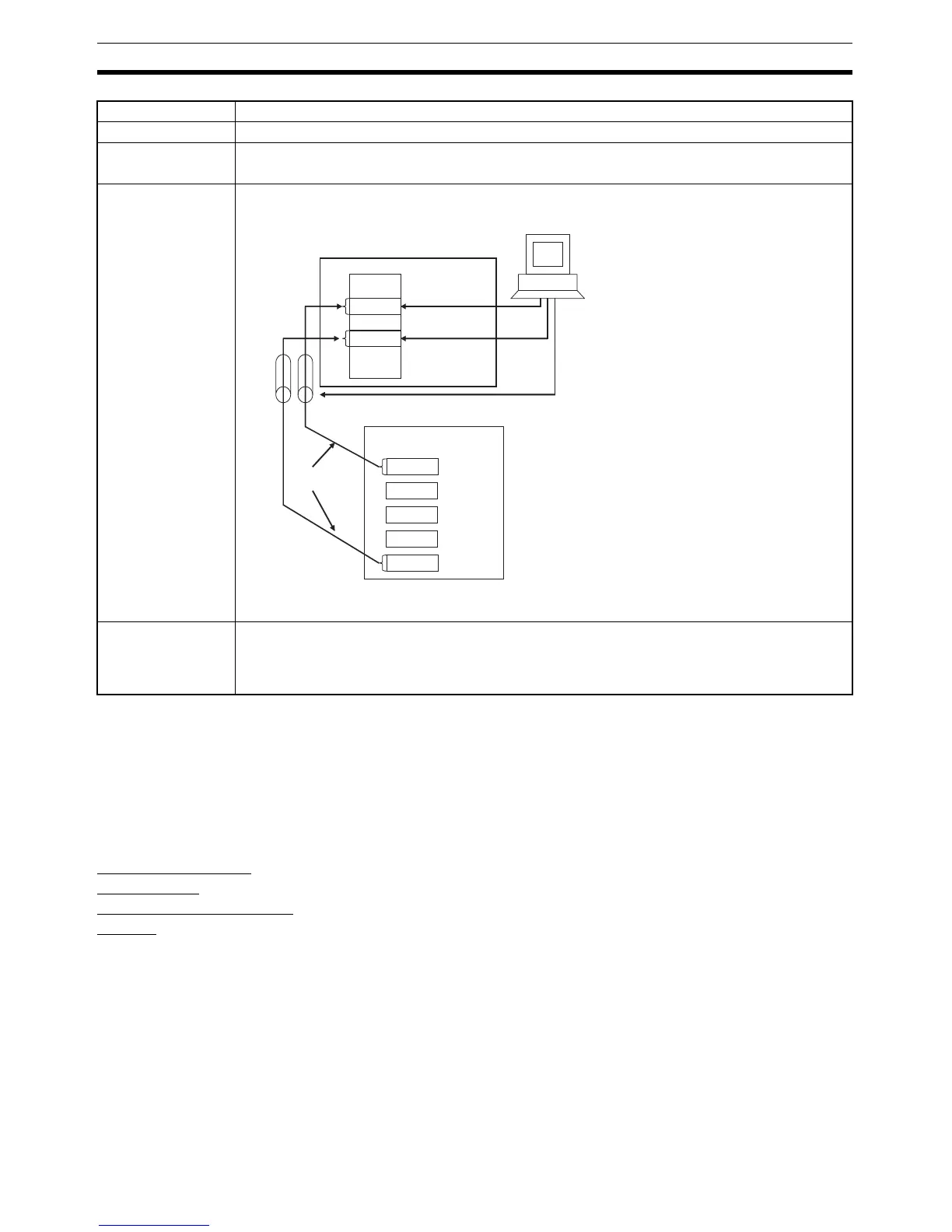

With the Configurator, for
each connection, select
data and allocate to
user-defined addresses.
Master CPU Unit
I/O memory
Allocate to user-
defined addresses.
Allocate to user-
defined addresses.
Allocation
1. Specify two connections.
2. Specify each
connection path.
Smart Slave
Data
Note: Up to two connections can be specified from
CS/CJ-series Master Units.
