120
Remote I/O Terminals with Transistors Section 5-5
Relay Replacement
Method

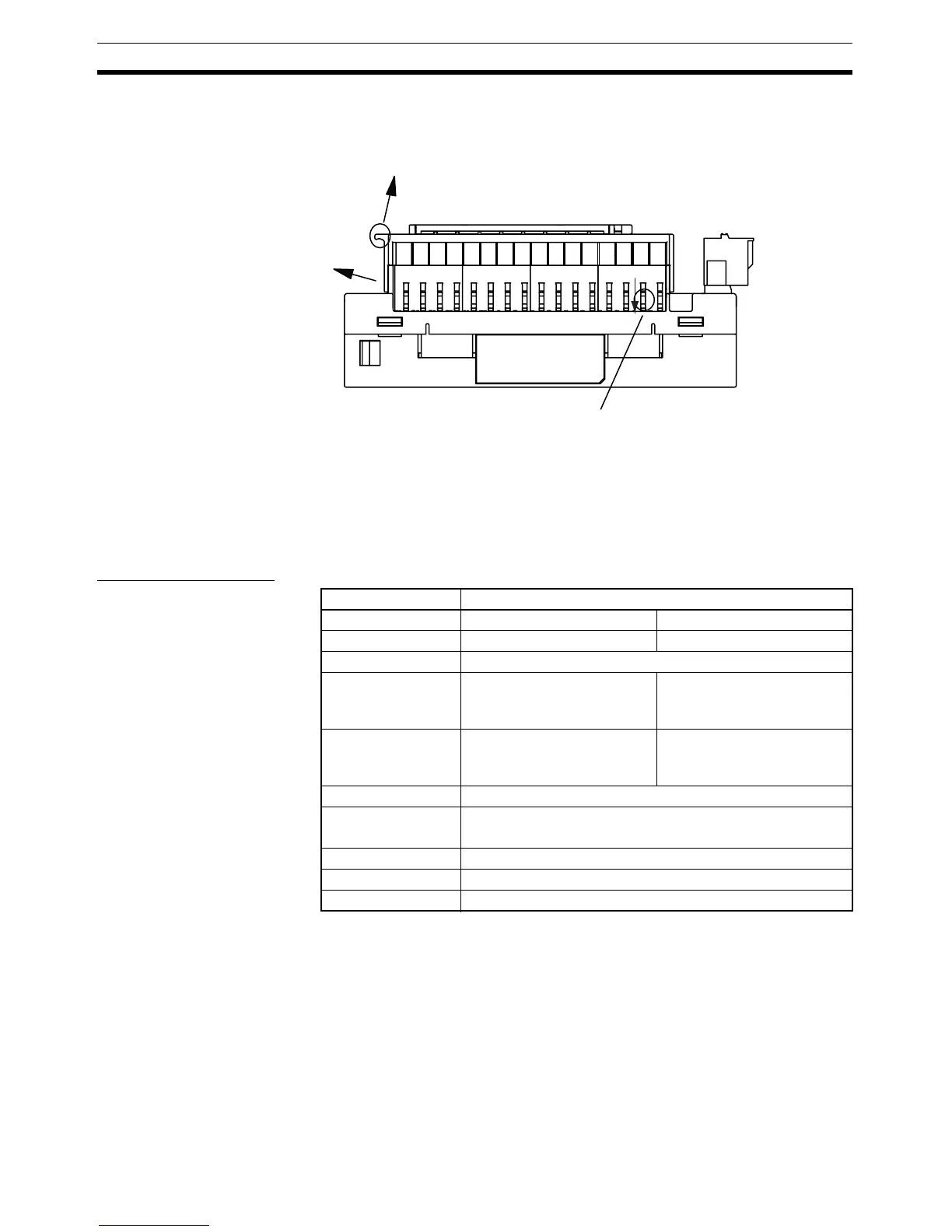

When replacing output relays, remove the cover as shown below.
5-5-9 Remote I/O Terminal Expansion Units with 8 Transistor Inputs:
XWT-ID08 (NPN) and XWT-ID08-1 (PNP)
Input Specifications
(2) The side bends in
the direction of the
arrow and the hook
becomes detached.
(1) Hook your finger around the handle
and pull the cover up and back.
(3) Use a screwdriver or other tools to push
the relay socket lever down in the direction
of the arrow. The relay will rise up from the
socket, and can then be removed.
Item Specifications
Model XWT-ID08 XWT-ID08-1
Internal I/O common NPN PNP
Input points 8 points
ON voltage 15 V DC min.
(between each input terminal
and V)
15 V DC min.
(between each input terminal
and G)
OFF voltage 5 V DC max.
(between each input terminal
and V)
5 V DC max.
(between each input terminal
and G)
OFF current 1 mA max.
Input current 6.0 mA max./point (for 24 V DC)
3.0 mA min./point (for 17 V DC)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with one common
