121
Remote I/O Terminals with Transistors Section 5-5

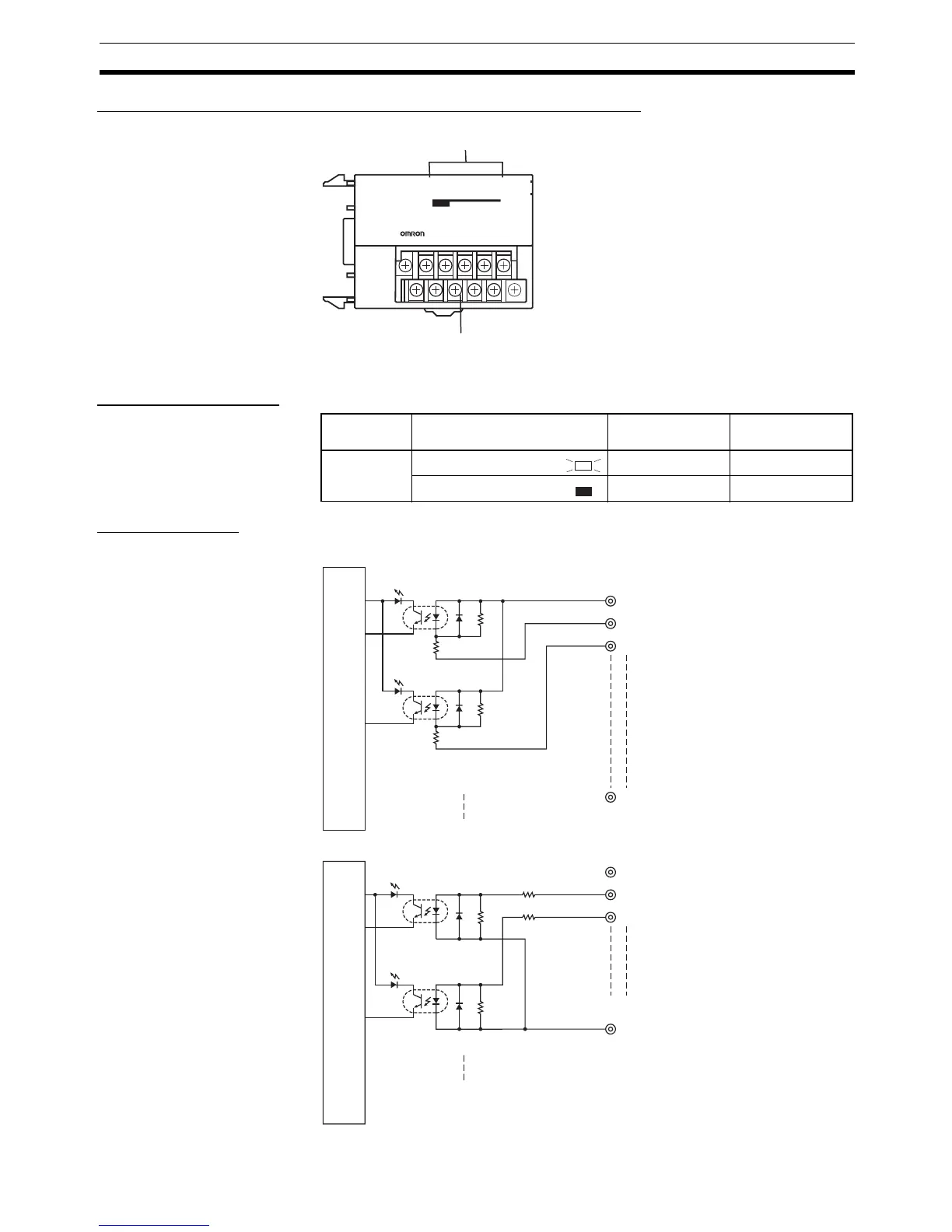

Component Names and Functions: XWT-ID08 and XWT-ID08-1
Operation Indicators The operation indicators show the status of the inputs.
Internal Circuits
XWT-ID08 (NPN)
XWT-ID08-1 (PNP)
XWT-ID08
REMOTE TERMINAL
IN
07654321
Operation indicators
Indicate the input status of each contact.
Detachable terminal
block
Indicator
name
Indicator status Definition Meaning
0 to 7
Lit yellow.
Contacts ON Contacts are ON
OFF
Contacts OFF Contacts are OFF
V 24 V DC
0
1
G
Internal circuits
Photo-
coupler
Photo-
coupler
V 24 V DC
0
1
G
Internal circuits
Photo-
coupler
Photo-
coupler
