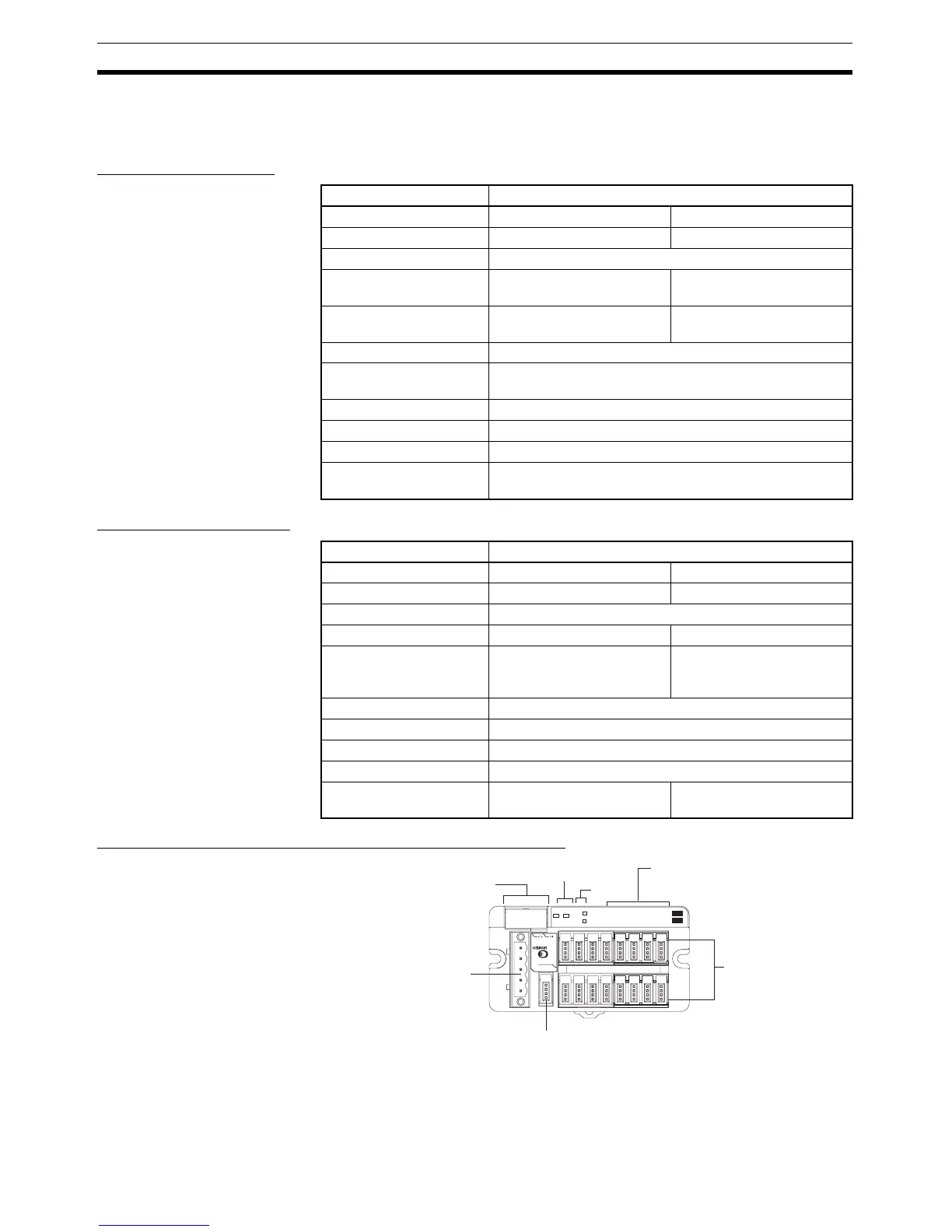

150
Connector Terminals with Transistors Section 5-6
5-6-4 Connector Terminals (Sensor Connector Type with 8 Inputs and 8
Outputs): DRT2-MD16S (NPN) and DRT2-MD16S-1 (PNP)
Input Specifications
Output Specifications
Components of the DRT2-MD16S and DRT2-MD16S-1
Item Specification
Model DRT2-MD16S DRT2-MD16S-1
Internal I/O common NPN PNP
Input points 8 points (0 to 7)
ON voltage 9 V DC min. (between each
input terminal and V)
9 V DC min. (between each
input terminal and G)
OFF voltage 5 V DC max. (between
each input terminal and V)
5 V DC max. (between
each input terminal and G)
OFF current 1 mA max.
Input current 11 mA max./point at 24 V DC
3.0 mA min./point at 11 V DC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with one common
Sensor short-circuit
detection current
100 mA min. (per two inputs)
Item Specification
Model DRT2-MD16S DRT2-MD16S-1
Internal I/O common NPN PNP
Output points 8 points (0 to 7)
Rated output current 0.3 A/point, 2.4 A/common 0.3 A/point, 1.6 A/common
Residual voltage 1.2 V max. (at 0.3 A,
between each output termi-
nal and G)
1.2 V max. (at 0.3 A,
between each output termi-
nal and V)
Leakage current 0.1 mA max.
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with one common
External load short-circuit
detection current
2.4 A min. per common 1.6 A min. per common
MS NS
SHT O 0
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
IN
SHT 1
OUT
NODE ADDRESS
IN
0-7
OUT 0-7
SHT.LED
DeviceNet indicators
I/O connector
Node address setting switch
DeviceNet communication
connector
Output power suppl
