170
Connector Terminals with Transistors Section 5-6

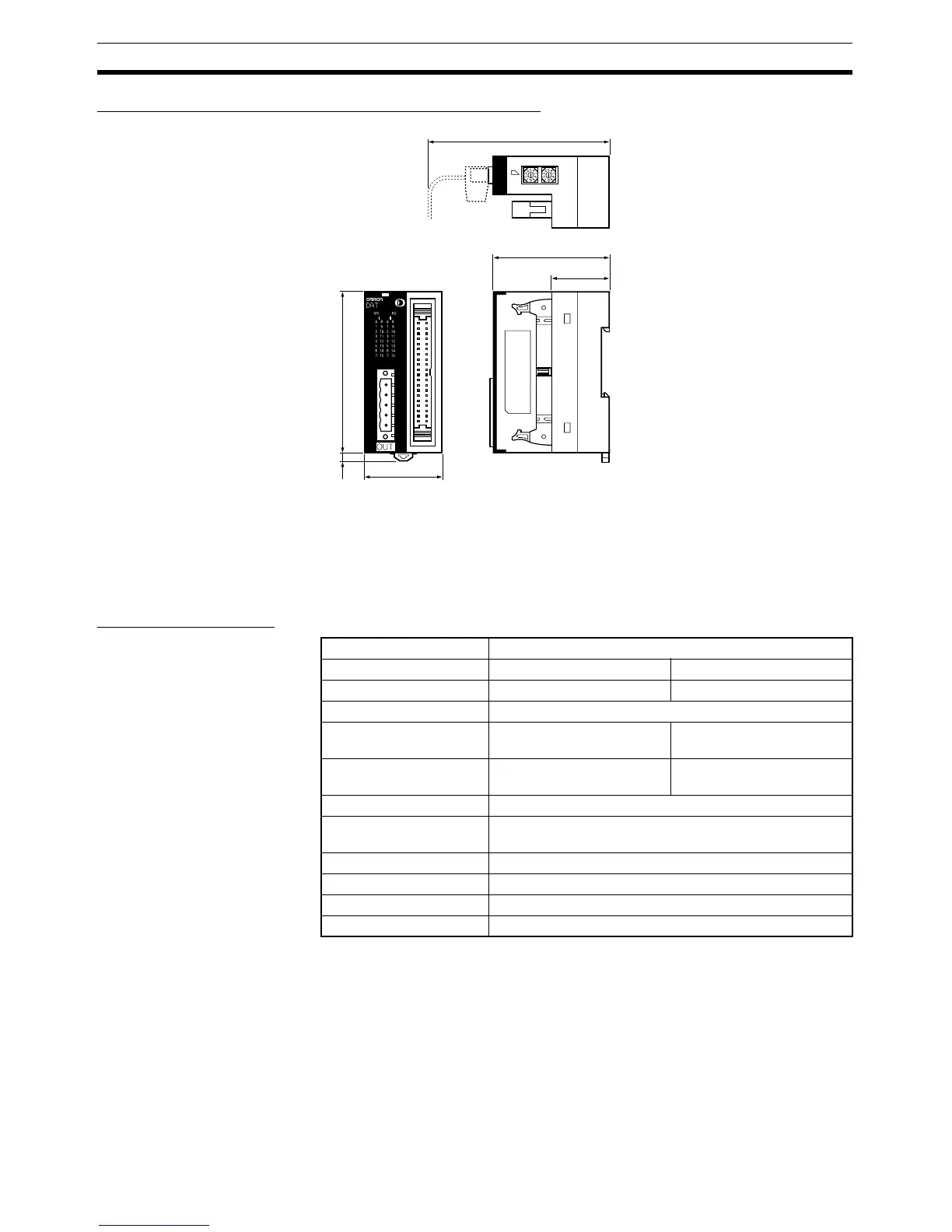

Dimensions (DRT2-OD32ML and DRT2-OD32ML-1)
5-6-9 Transistor Remote I/O Terminals with 16 Inputs and 16 Outputs
and Connectors: DRT2-MD32ML (NPN) and DRT2-MD32ML-1
(PNP)
Input Specifications
27.8
60
(83)
35
80
5
2
Values in parentheses are
reference values.
Item Specification
Model DRT2-MD32ML DRT2-MD32ML-1
Internal I/O common NPN PNP
Input points 16 points
ON voltage 17 V DC min. (between
each input terminal and V)
17 V DC min. (between
each input terminal and G)
OFF voltage 5 V DC max. (between
each input terminal and V)
5 V DC max. (between
each input terminal and G)
OFF current 1.0 mA max.
Input current 6.0 mA max./point at 24 V DC
3.0 mA min./point at 17 V DC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Max. No. of ON inputs 16 points
Number of circuits 16 points with one common
