139

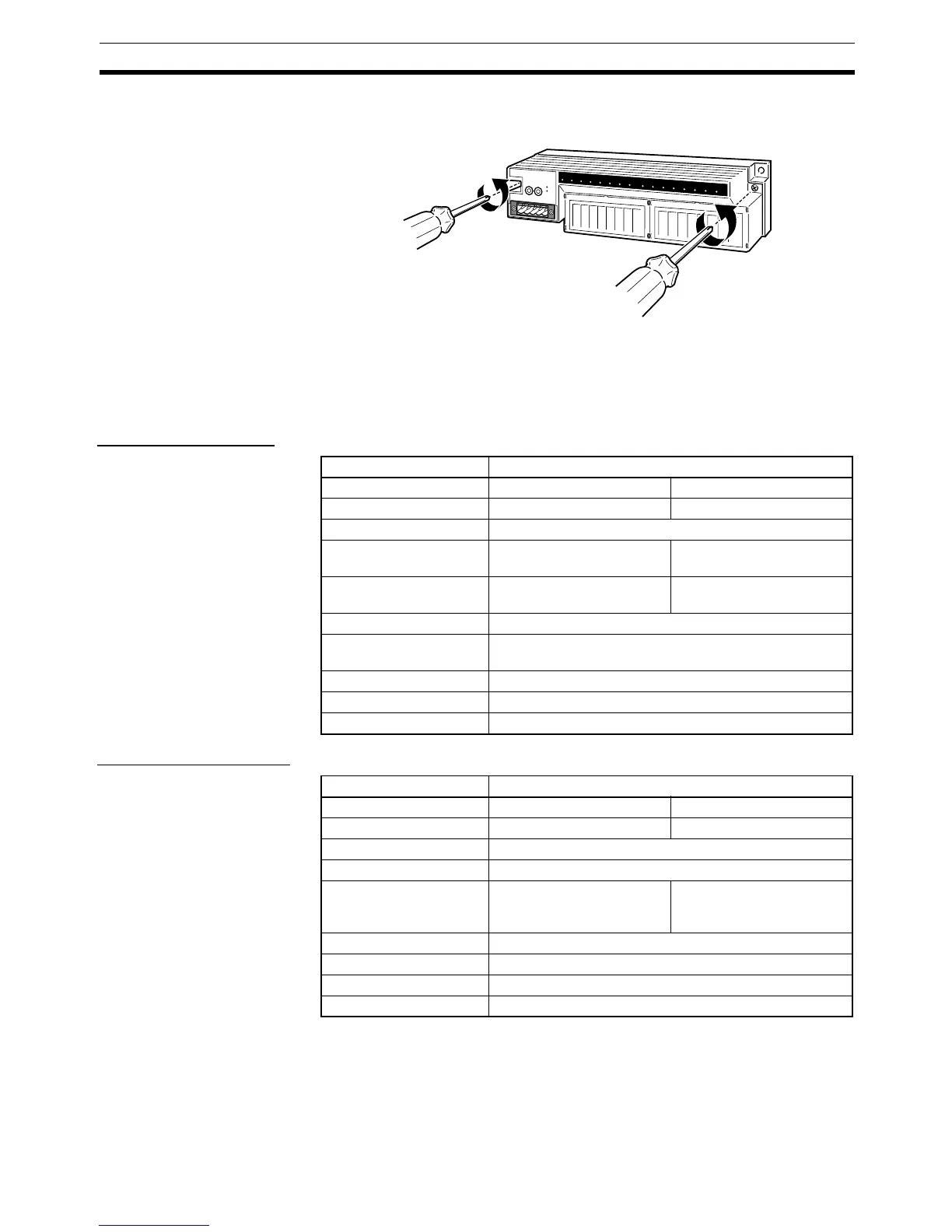

Remote I/O Terminals with Transistors Section 5-5
Always turn OFF the communications, internal, and I/O power supplies before
removing or attaching the circuit section.
5-5-15 Transistor Remote I/O Terminals with 8 Inputs and 8 Outputs and
3-tier I/O Terminal Blocks:
DRT2-MD16TA (NPN) and DRT2-MD16TA-1 (PNP)
Input Specifications
Output Specifications
Item Specification
Model DRT2-MD16TA DRT2-MD16TA-1
Internal I/O common NPN PNP
Input points 8 points
ON voltage 15 V DC min. (between
each input terminal and V)
15 V DC min. (between
each input terminal and G)
OFF voltage 5 V DC max. (between
each input terminal and V)
5 V DC max. (between
each input terminal and G)
OFF current 1.0 mA max.
Input current 6.0 mA max./point at 24 V DC
3.0 mA min./point at 17 V DC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with one common
Item Specification
Model DRT2-MD16TA DRT2-MD16TA-1
Internal I/O common NPN PNP
Output points 8 points
Rated output current 0.5 A/point
Residual voltage 1.2 V max. (at 0.5 A,
between each output termi-
nal and G)
1.2 V max. (at 0.5 A,
between each output termi-
nal and V)
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with one common
