Common Slave Functions Section 4-2
4-2-3 Unit Conduction Time Monitor
Function Overview The total ON time (unit: 0.1 hrs) of the Slave's internal circuit power can be
calculated and recorded. (The Configurator or explicit messages can be used
to read the information.)
The monitor value can be maintained in the Slave and the Unit Maintenance
Flag in the Status Area will be turned ON when the total time reaches the set
monitor value. The total ON time can be read using the Configurator or explicit
messages.)
• Measured time: 0 to 429496729 hours (stored data: 00000000 to
FFFFFFFF Hex)
• Measuring unit: 0.1 hr
Note The Unit conduction time monitor calculates the total time that the Smart
Slave's Network power supply is ON. The total time is not calculated when the
power is OFF.
Setting Using the
DeviceNet
Configurator
The method used to set values from the DeviceNet Configurator (Ver. 2.20 or
later) is described here.
1,2,3... 1. Turn ON the power to the DRT2-series Smart Slave.
2. From the Main Window, open the Network Configuration Window and dou-
ble-click or click the right mouse button over the icon of the DRT2-series
Smart Slave to be set. Select Parameter and Edit to display the Edit De-
vice Parameters Window.
From the Maintenance Mode Window, click the right mouse button over the
icon of the DRT2-series Smart Slave to be set. Select Parameter and Edit
to display the Edit Device Parameters Window.

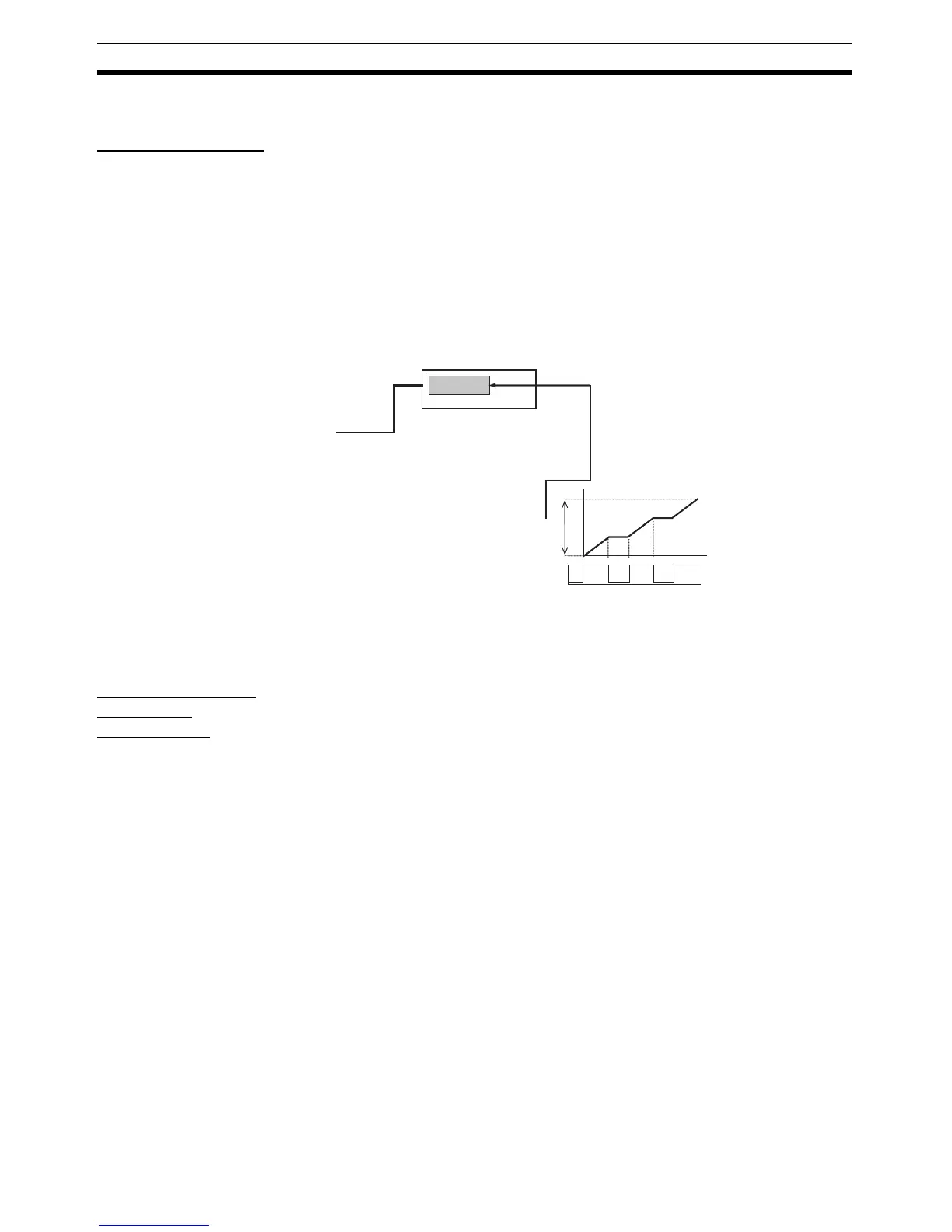

ON
OFF
DeviceNet
Slave
Total ON time
Recorded in Slave
Total ON time
Internal circuit
power
To Next Page
