Remote I/O Terminals with Transistors Section 5-5

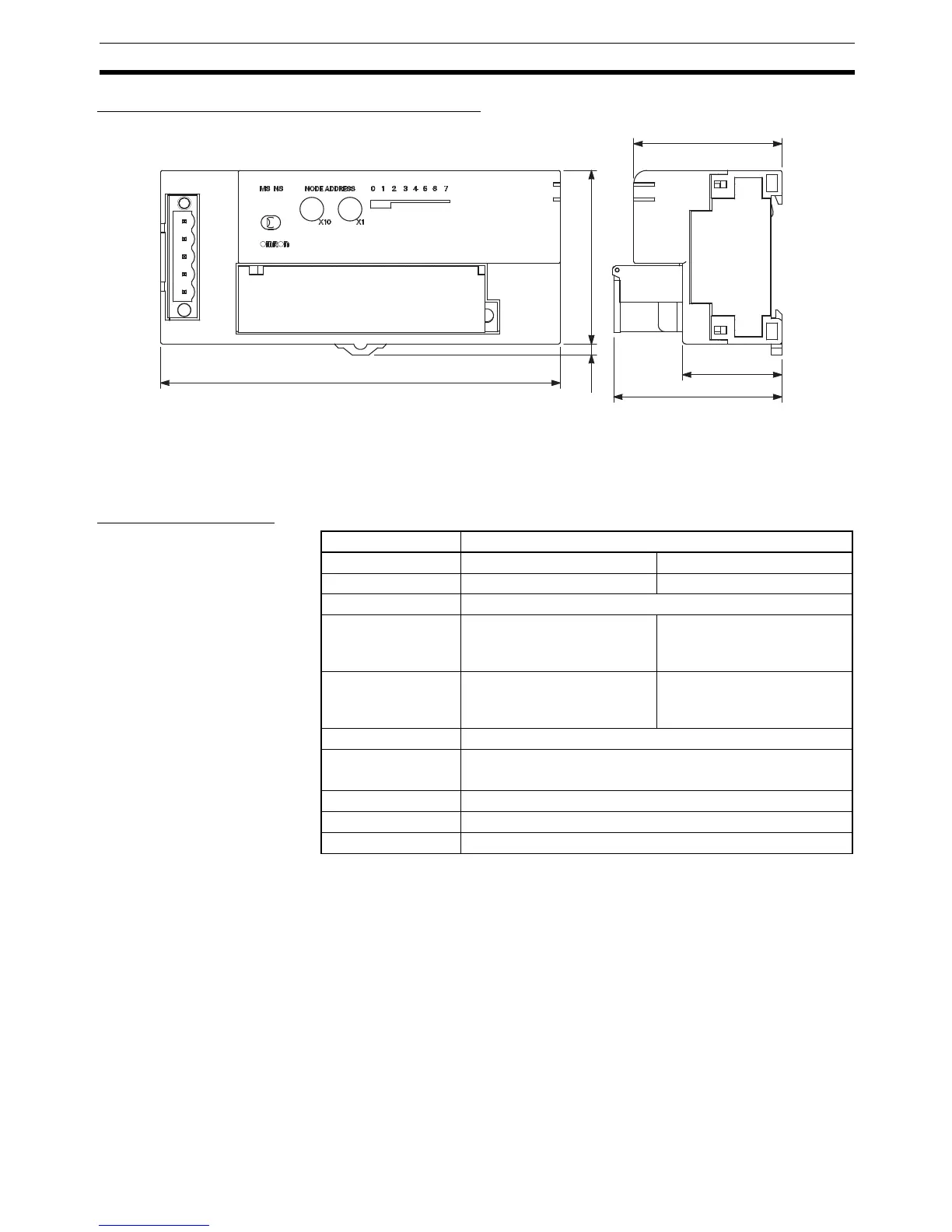

Dimensions: DRT2-OD08 and DRT2-OD08-1
5-5-5 Remote I/O Terminals with 16 Transistor Inputs: DRT2-ID16 (NPN)
and DRT2-ID16-1 (PNP)
Input Specifications
43.8
115
3.1
50
49.6
29.8
Item Specifications
Model DRT2-ID16 DRT2-ID16-1
Internal I/O common NPN PNP
Input points 16 points
ON voltage 15 V DC min.
(between each input terminal
and V)
15 V DC min.
(between each input terminal
and G)
OFF voltage 5 V DC max.
(between each input terminal
and V)
5 V DC max.
(between each input terminal
and G)
OFF current 1 mA max.
Input current 6.0 mA max./point (for 24 V DC)
3.0 mA min./point (for 17 V DC)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 16 points with one common
