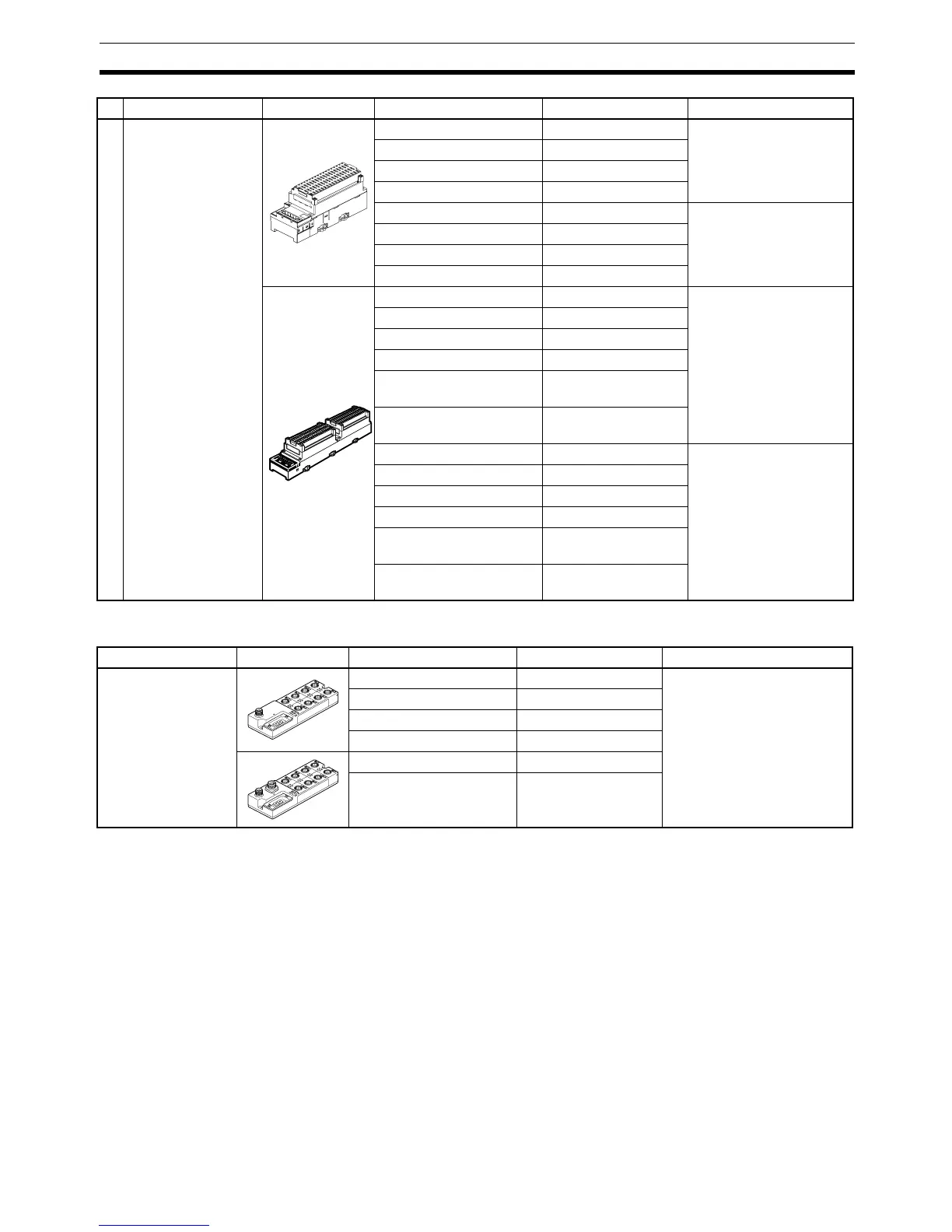

9
DRT2 Slaves Section 1-2
1-2-2 Environment-resistive Slaves
Screw-less Clamp Terminals
Screw-less Clamp
Terminal with Tran-
sistors
16 input points (NPN) DRT2-ID16SL Without detection func-
tion
16 input points (PNP) DRT2-ID16SL-1
16 output points (NPN) DRT2-OD16SL
16 output points (PNP) DRT2-OD16SL-1
16 input points (NPN) DRT2-ID16SLH With detection function
16 input points (PNP) DRT2-ID16SLH-1
16 output points (NPN) DRT2-OD16SLH
16 output points (PNP) DRT2-OD16SLH-1
32 input points (NPN) DRT2-ID32SL Without detection func-
tion
32 input points (PNP) DRT2-ID32SL-1
32 output points (NPN) DRT2-OD32SL
32 output points (PNP) DRT2-OD32SL-1
16 input points/16 output
points (NPN)
DRT2-MD32SL
16 input points/16 output
points (PNP)
DRT2-MD32SL-1
32 input points (NPN) DRT2-ID32SLH With detection function
32 input points (PNP) DRT2-ID32SLH-1
32 output points (NPN) DRT2-OD32SLH
32 output points (PNP) DRT2-OD32SLH-1
16 input points/16 output
points (NPN)
DRT2-MD32SLH
16 input points/16 output
points (PNP)
DRT2-MD32SLH-1
Name Appearance I/O points Model number Remarks
Environment-resis-
tive Terminals,
Advanced Models
8 input points (NPN) DRT2-ID08C Waterproof, oil-proof, and
spatter-proof construction
(IP67).
Equipped with detection
functions.
8 input points (PNP) DRT2-ID08C-1
16 input points (NPN) DRT2-HD16C
16 input points (PNP) DRT2-HD16C-1
8 output points (NPN) DRT2-OD08C
8 output points (PNP) DRT2-OD08C-1
Name Appearance I/O points Model number Remarks
