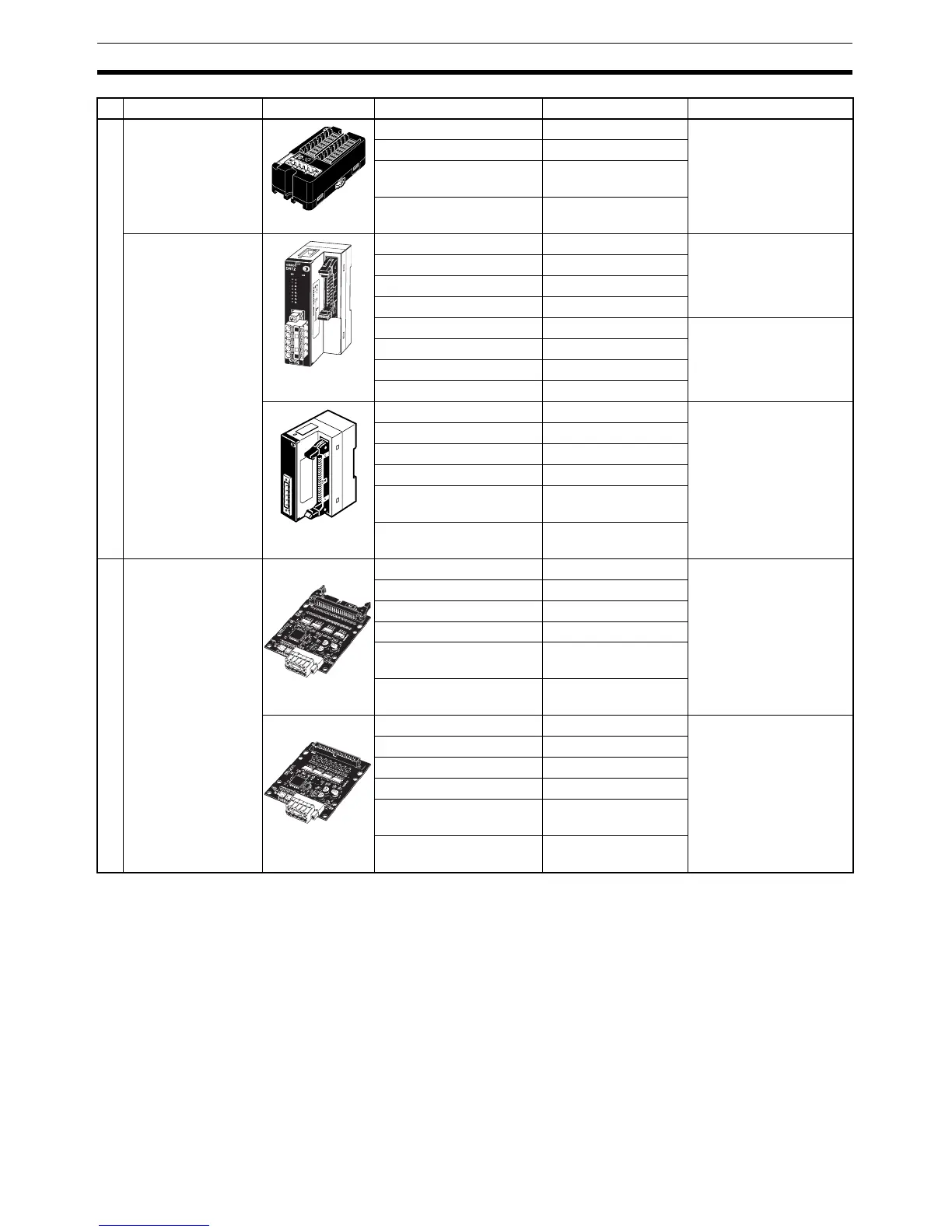

8
DRT2 Slaves Section 1-2
Connector Terminals
Sensor Connector
Terminals with Tran-
sistors
16 input points (NPN) DRT2-ID16S Use industry standard
sensor connectors.
16 input points (PNP) DRT2-ID16S-1
8 input points/8 output
points (NPN)
DRT2-MD16S
8 input points/8 output
points (PNP)
DRT2-MD16S-1
MIL Connector Ter-
minals with Transis-
tors
16 input points (NPN) DRT2-ID16ML Connects to relay termi-
nal using MIL cable.
16 input points (PNP) DRT2-ID16ML-1
16 output points (NPN) DRT2-OD16ML
16 output points (PNP) DRT2-OD16ML-1
16 input points (NPN) DRT2-ID16MLX A connecting cable (10
cm) is included.
16 input points (PNP) DRT2-ID16MXL-1
16 output points (NPN) DRT2-OD16MLX
16 output points (PNP) DRT2-OD16MXL-1
32 input points (NPN) DRT2-ID32ML Connects to relay termi-
nal using MIL cable.
32 input points (PNP) DRT2-ID32ML-1
32 output points (NPN) DRT2-OD32ML
32 output points (PNP) DRT2-OD32ML-1
16 input points/16 output
points (NPN)
DRT2-MD32ML
16 input points/16 output
points (PNP)
DRT2-MD32ML-1
Connector Terminals
Board MIL Connec-
tor Terminals with
Transistors
32 input points (NPN) DRT2-ID32B MIL connectors mounted
parallel to board
32 input points (PNP) DRT2-ID32B-1
32 output points (NPN) DRT2-OD32B
32 output points (PNP) DRT2-OD32B-1
16 input points/16 output
points (NPN)
DRT2-MD32B
16 input points/16 output
points (PNP)
DRT2-MD32B-1
32 input points (NPN) DRT2-ID32BV MIL connectors mounted
perpendicular to board
32 input points (PNP) DRT2-ID32BV-1
32 output points (NPN) DRT2-OD32BV
32 output points (PNP) DRT2-OD32BV-1
16 input points/16 output
points (NPN)
DRT2-MD32BV
16 input points/16 output
points (PNP)
DRT2-MD32BV-1
Name Appearance I/O points Model number Remarks
