42
DeviceNet Remote I/O Communications Section 3-2
3-2-3 I/O Allocation with the Configurator (Ver. 2.@ or Later)
Allocating Selected
I/O Data (Patterns)
In the Slave’s Edit Device Parameters Window, select the required data from
the pull-down list (default connection path setting) and execute download.
When performing user-defined allocation, in addition to the above, allocate
Slave I/O in the Master’s Edit Device Parameters Window.
Note Perform I/O allocation using this method if the Master Unit is a CVM1/CV-
series DeviceNet Master Unit, a C200HX/HG/HE/HS DeviceNet Master Unit,
or another company’s Master Unit.
The setting example below is for allocating I/O data and Generic Status Flags
for a General-purpose Slave. For details on the setting method for Analog
Slaves, refer to 7-4-2 I/O Data Allocation Methods.

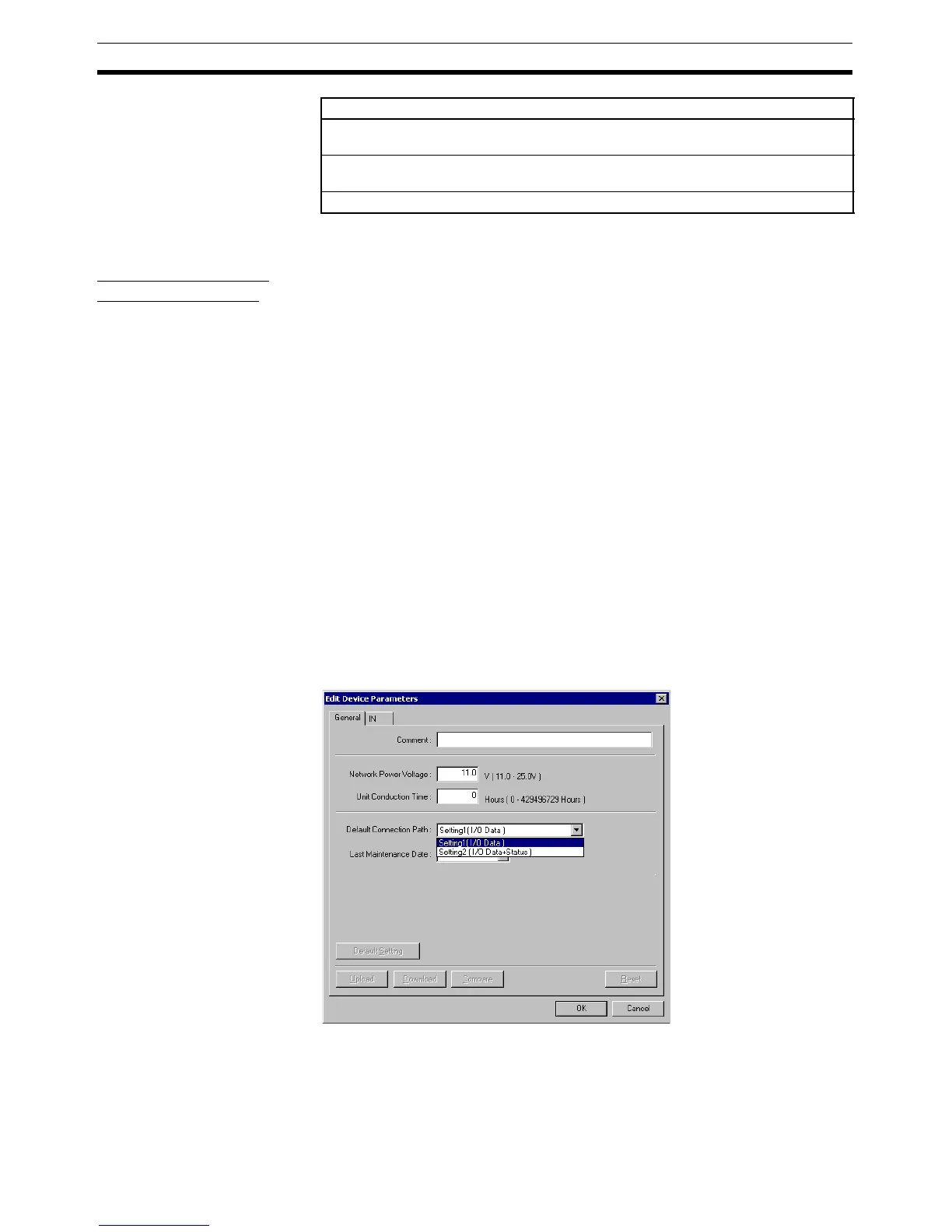

Procedure Using the Configurator, set the default connection path in the Slave’s Edit
Device Parameters Window. Turn ON the power for the PLC connected to the
Smart Slave and change the mode of the PLC to PROGRAM mode.
1,2,3... 1. Turn ON the power for the DRT2-series Smart Slave.
2. Click the right mouse button over the icon of the corresponding DRT2-se-
ries Smart Slave in the Network Configuration Window, and select Param-
eters and Edit to display the Edit Device Parameters Window.
3. Click the General Tab and select the desired setting from the pull-down
menu under the Default Connection Path field.
4. Click the Download Button and then click the Reset Button.
5. Click the OK Button.
Temperature Data 1 + Top/Valley Detection Timing Flags + Generic Status Flags (11
input bytes)
Temperature Data 1, 1/100 Display + Top/Valley Detection Timing Flags + Generic
Status Flags (19 input bytes)
Hold Flags (1 output byte)
Data (patterns)
To Next Page
