132
Remote I/O Terminals with Transistors Section 5-5

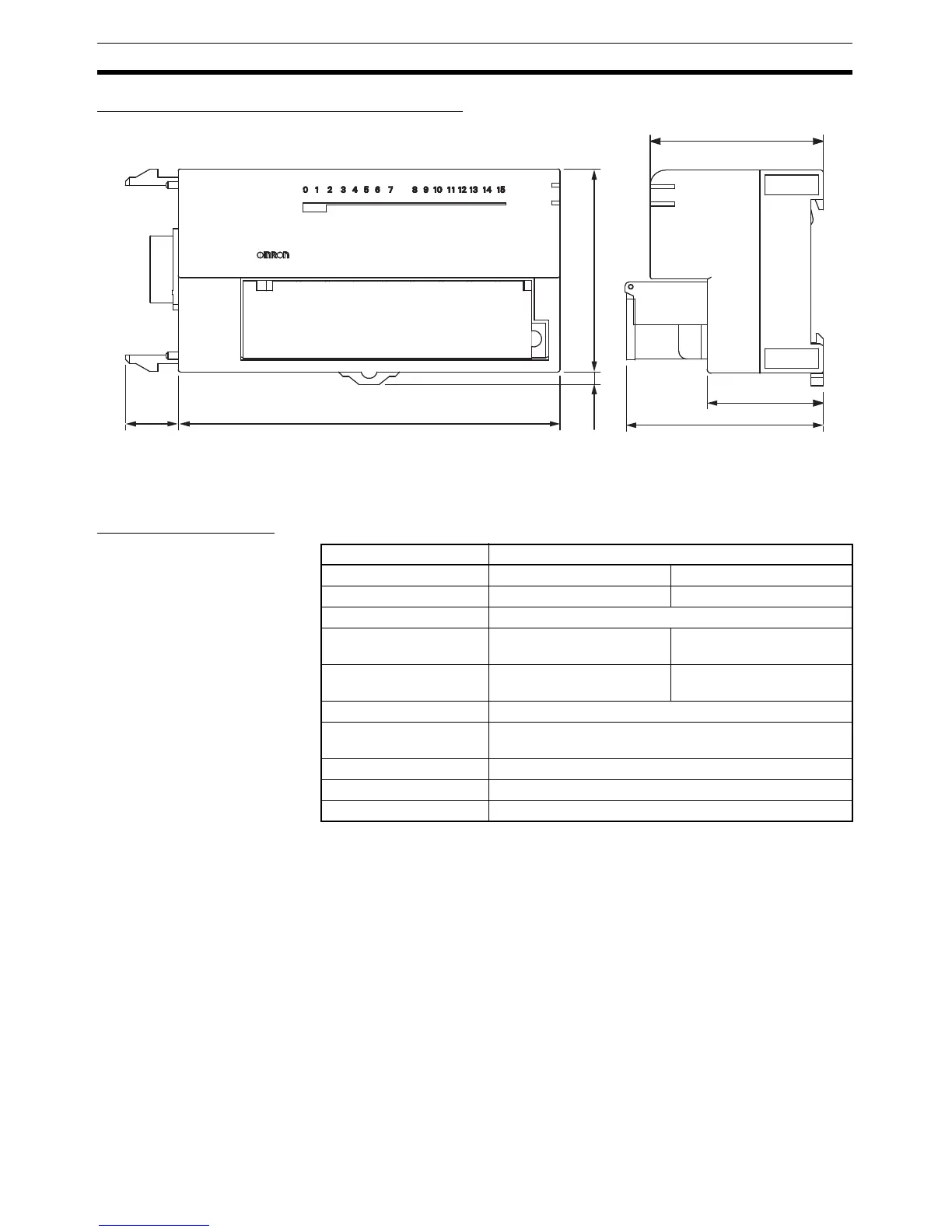

Dimensions: XWT-OD16 and XWT-OD16-1
5-5-13 Transistor Remote Input Terminals with 16 Points and 3-tier I/O
Terminal Blocks: DRT2-ID16TA (NPN) and DRT2-ID16TA-1 (PNP)
Input Specifications
94
3.1
50
49.7
29.9
43.9
12
Item Specification
Model DRT2-ID16TA DRT2-ID16TA-1
Internal I/O common NPN PNP
Input points 16 points
ON voltage 15 V DC min. (between
each input terminal and V)
15 V DC min. (between
each input terminal and G)
OFF voltage 5 V DC max. (between
each input terminal and V)
5 V DC max. (between
each input terminal and G)
OFF current 1.0 mA max.
Input current 6.0 mA max./point at 24 V DC
3.0 mA min./point at 17 V DC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with two commons
