145
Connector Terminals with Transistors Section 5-6
5-6-2 Industry Standard Sensor Connector Assembly, Wiring, and
Installation
The DRT2-@D16S(-1) Sensor Connector Terminal uses an industry standard
sensor connector. When connecting the sensor or external device to the Con-
nector Terminal, a special connector must be attached to the sensor or exter-
nal device cable.
Use the following procedure to attach the Cable Connector to the sensor or
external device cable.

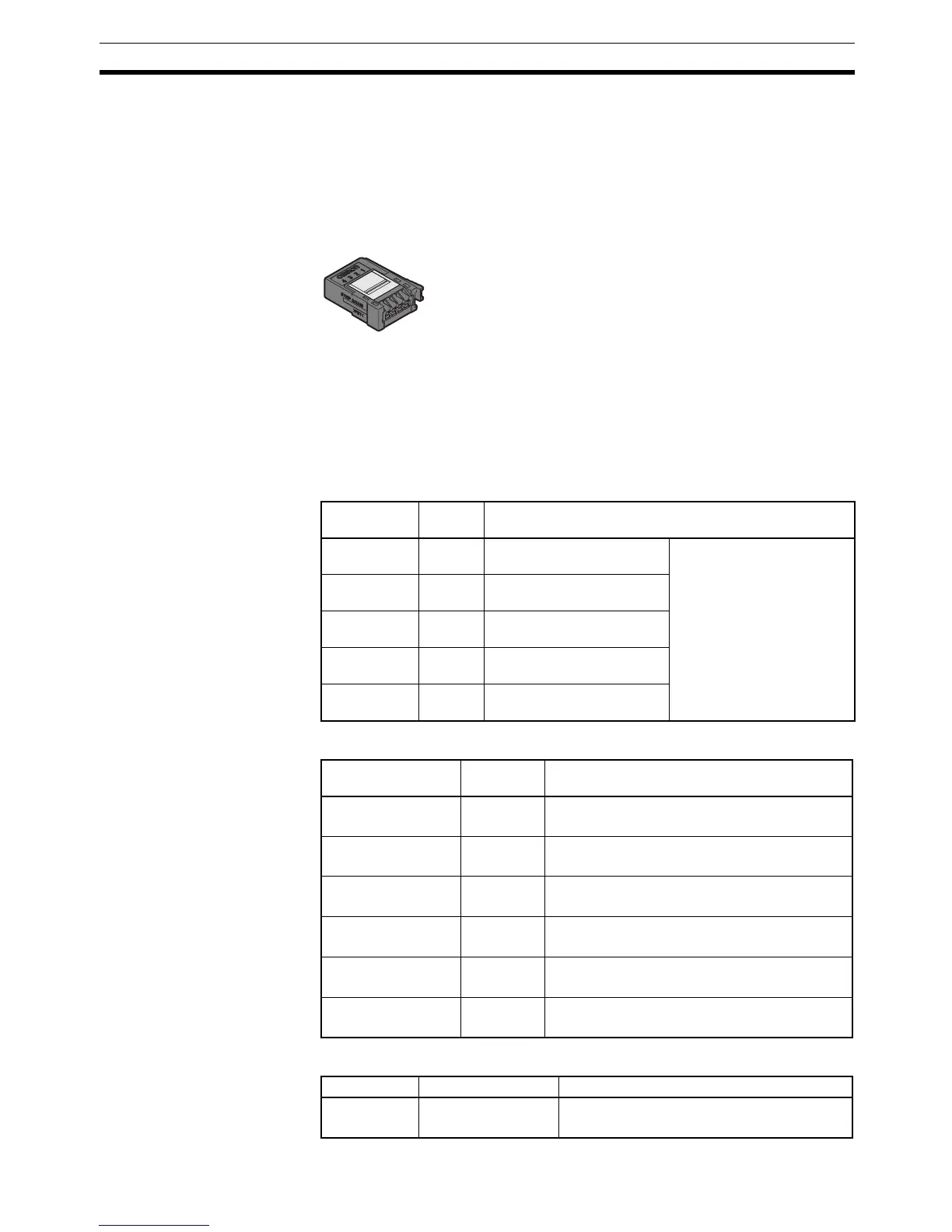

1,2,3... 1. Checking the Cable Connector and Cable Wire Size
The applicable Cable Connector depends on the manufacturer and the
wire size. Use the following table to check that the Cable Connector and
sensor or external device cable wire size are compatible.
Tyco Electronics Corporation
Sumitomo 3M
OMRON
OMRON XN2A-1430
Cable Connector
Model Housing
color
Applicable wire range
3-1473562-4 Orange Sheath outer diameter:
0.6 to 0.9 mm dia.
Cross section:
0.08 to 0.5 mm
2
1-1473562-4 Red Sheath outer diameter:
0.9 to 1.0 mm dia.
1473562-4 Yellow Sheath outer diameter:
1.0 to 1.15 mm dia.
2-1473562-4 Blue Sheath outer diameter:
1.15 to 1.35 mm dia.
4-1473562-4 Green Sheath outer diameter:
1.35 to 1.60 mm dia.
Model Housing
color
Applicable wire range
37104-3101-000FL Red
AWG26 (0.14 mm
2
) to AWG24 (0.2 mm
2
),
sheath outer diameter: 0.8 to 1.0 mm
37104-3122-000FL Yellow
AWG26 (0.14 mm
2
) to AWG24 (0.2 mm
2
),
sheath outer diameter: 1.0 to 1.2 mm
37104-3163-000FL Orange
AWG26 (0.14 mm
2
) to AWG24 (0.2 mm
2
),
sheath outer diameter: 1.2 to 1.6 mm
37104-2124-000FL Green
AWG22 (0.3 mm
2
) to AWG20 (0.5 mm
2
), sheath
outer diameter: 1.0 to 1.2 mm
37104-2165-000FL Blue
AWG22 (0.3 mm
2
) to AWG20 (0.5 mm
2
), sheath
outer diameter: 1.2 to 1.6 mm
37104-2206-000FL Gray
AWG22 (0.3 mm
2
) to AWG20 (0.5 mm
2
), sheath
outer diameter: 1.6 to 2.0 mm
Model Specifications Applicable wire range
XN2A-1430 Spring clamp type
AWG28 (0.08 mm
2
) to AWG20 (0.5 mm
2
),
sheath outer diameter: 1.5 mm max.
To Next Page
